Fuel Injection System

Location/Connector Views:

Wiring Diagrams:

Start (Cold/Hot Engine):

Engine Running/Stalled:

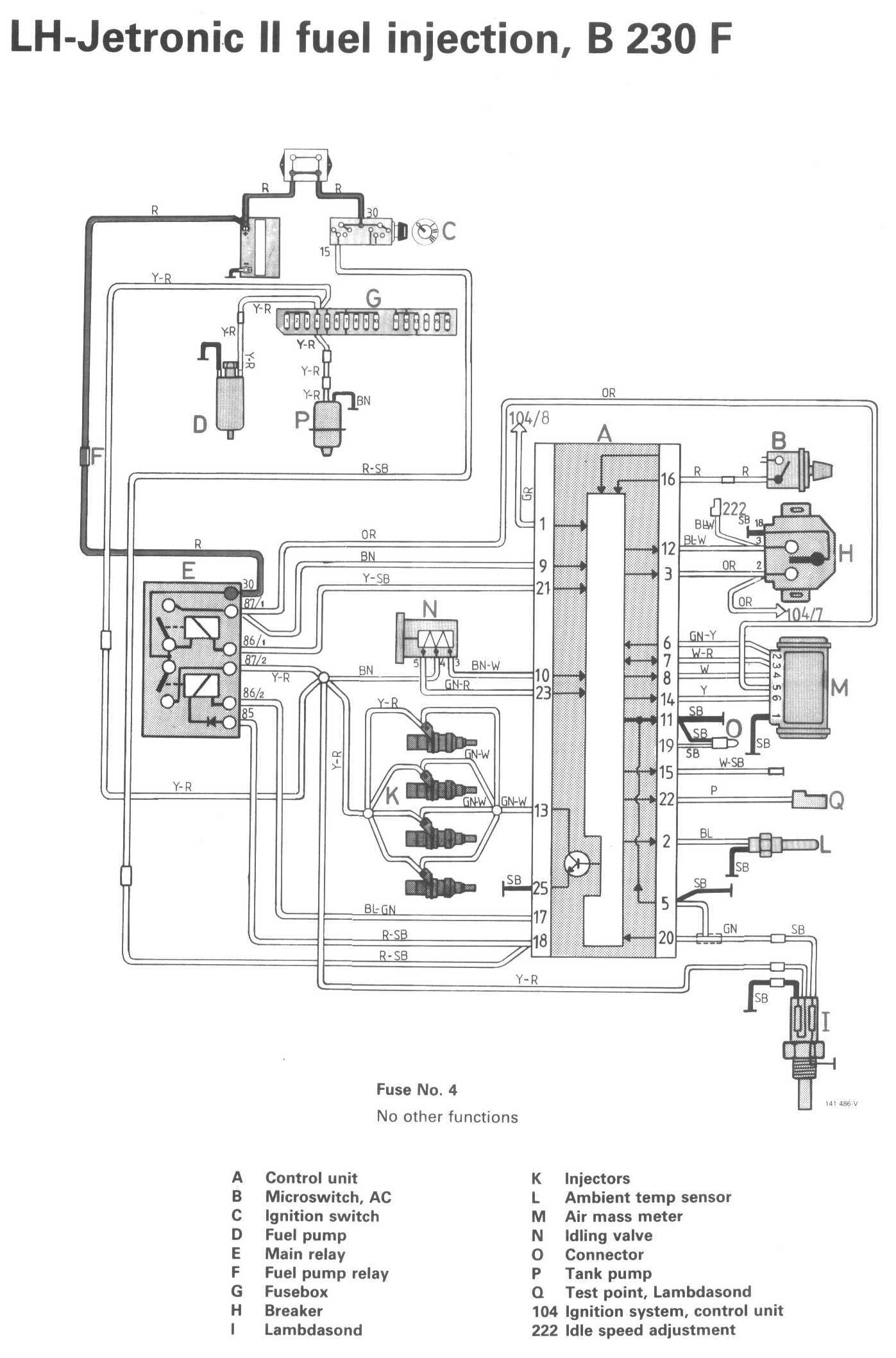

LEGEND
A Control unit
B Microswitch, AC
C Ignition switch
D Fuel pump
E Main relay
F Fuel pump relay
G Fusebox
H Breaker
I Lambdasond
K Injectors
L Ambient temperature sensor
M Air mass meter
N Idling valve
O Connector
P Tank pump
Q Test point, Lambdasond
104 Ignition system, control unit
222 Idle speed adjustment
