Home >> Volvo >> 1986 >> 240 L4-2.3L SOHC VIN 88 B230F >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Vacuum Switch >> Locations

Vacuum Switch: Locations

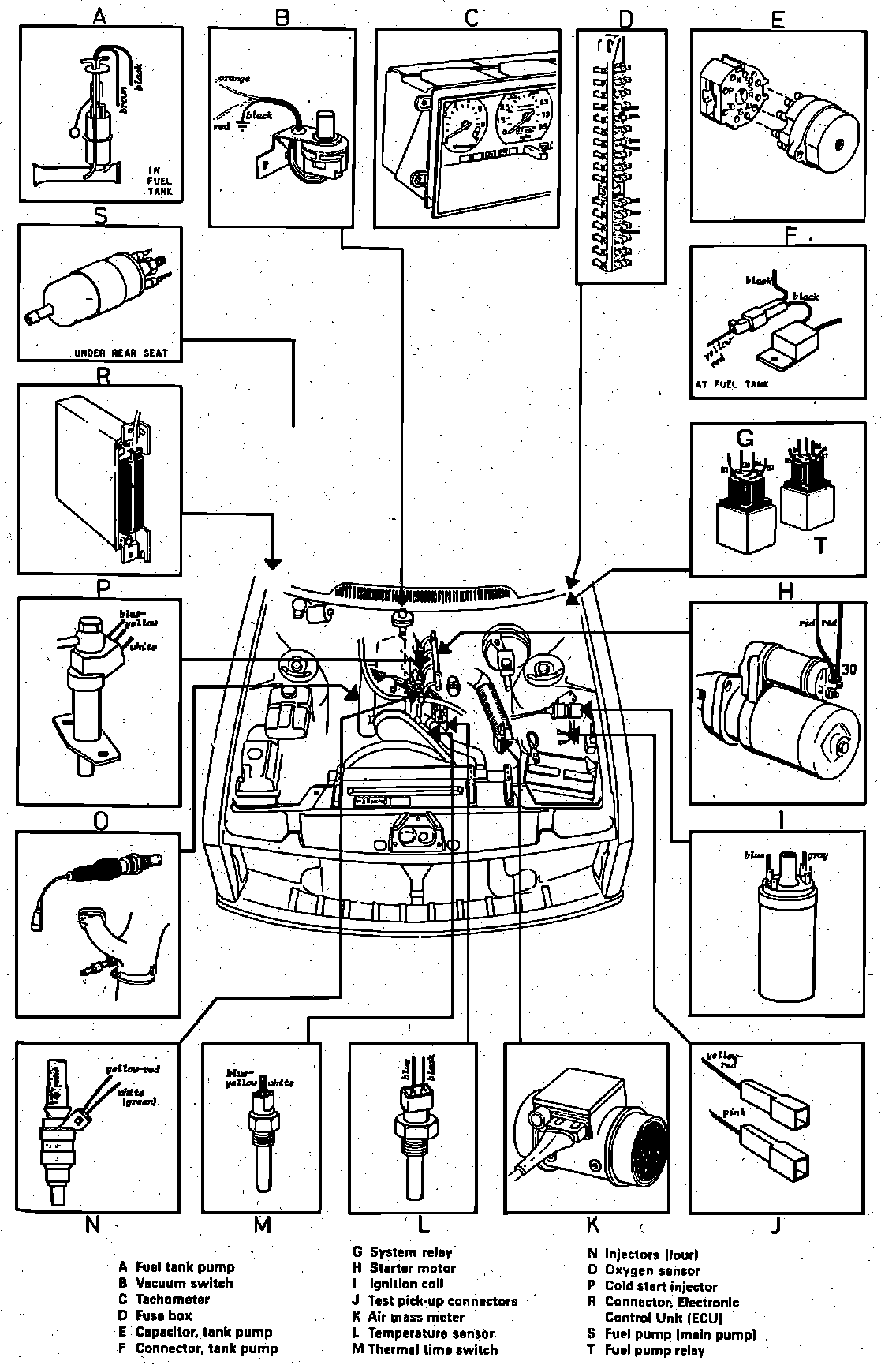

Fuel Injection Component Location.:




Rear Center Of Engine Compartment

Applicable to: 240 Models W/Jetronic Injection
