Tailgate Window Wash/Wipe (W/Interval Relay)

Wiring Diagrams:

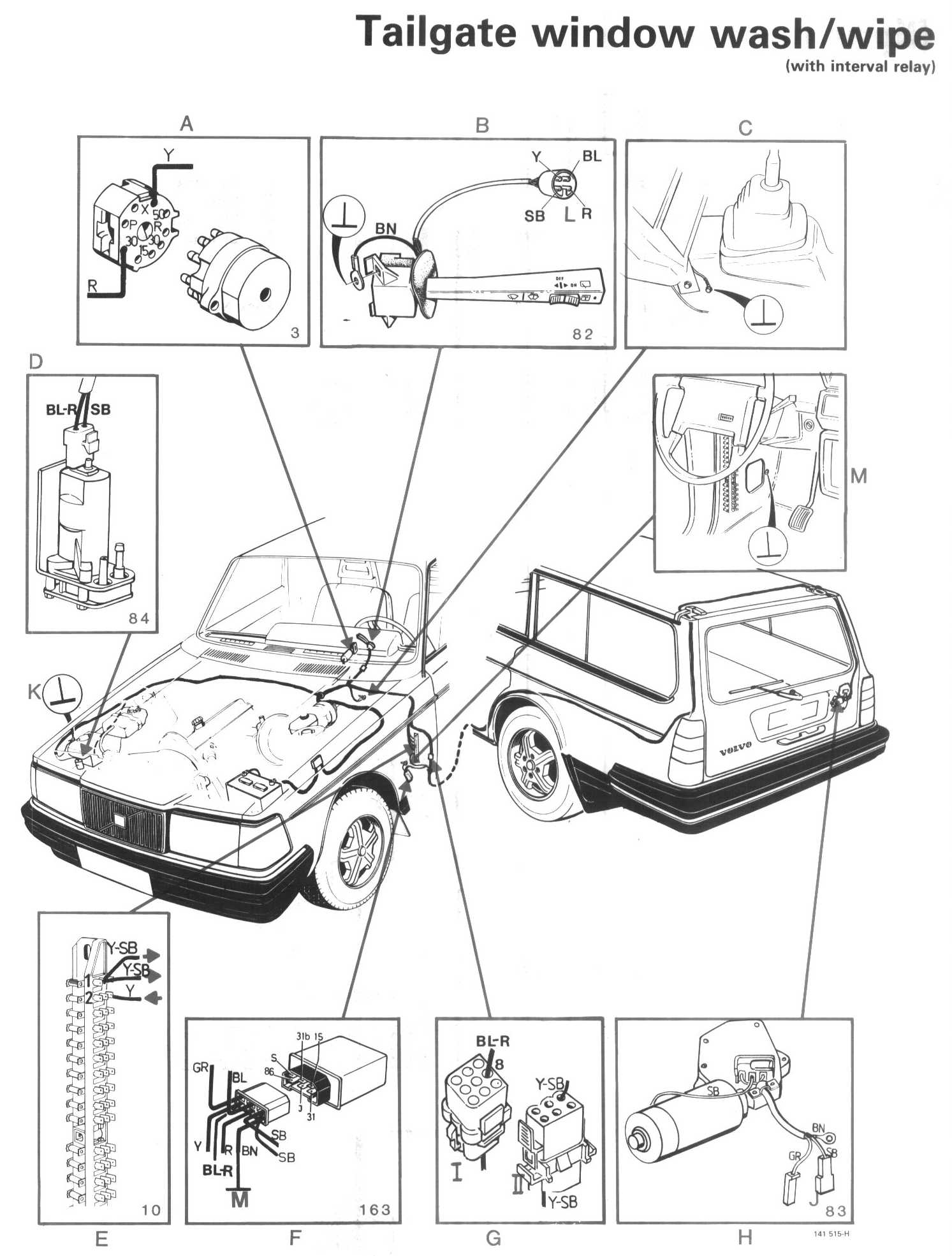

Location/Connector Views:

LEGEND
A Ignition switch
B Stalk for tailgate wash/wipe
C Ground connection
D Washer motor
E Fusebox
F Interval relay
G Connector
H Wiper motor
J Connector
K Ground connection
L Connector
M Ground connection
