Windshield Wash/Wipe

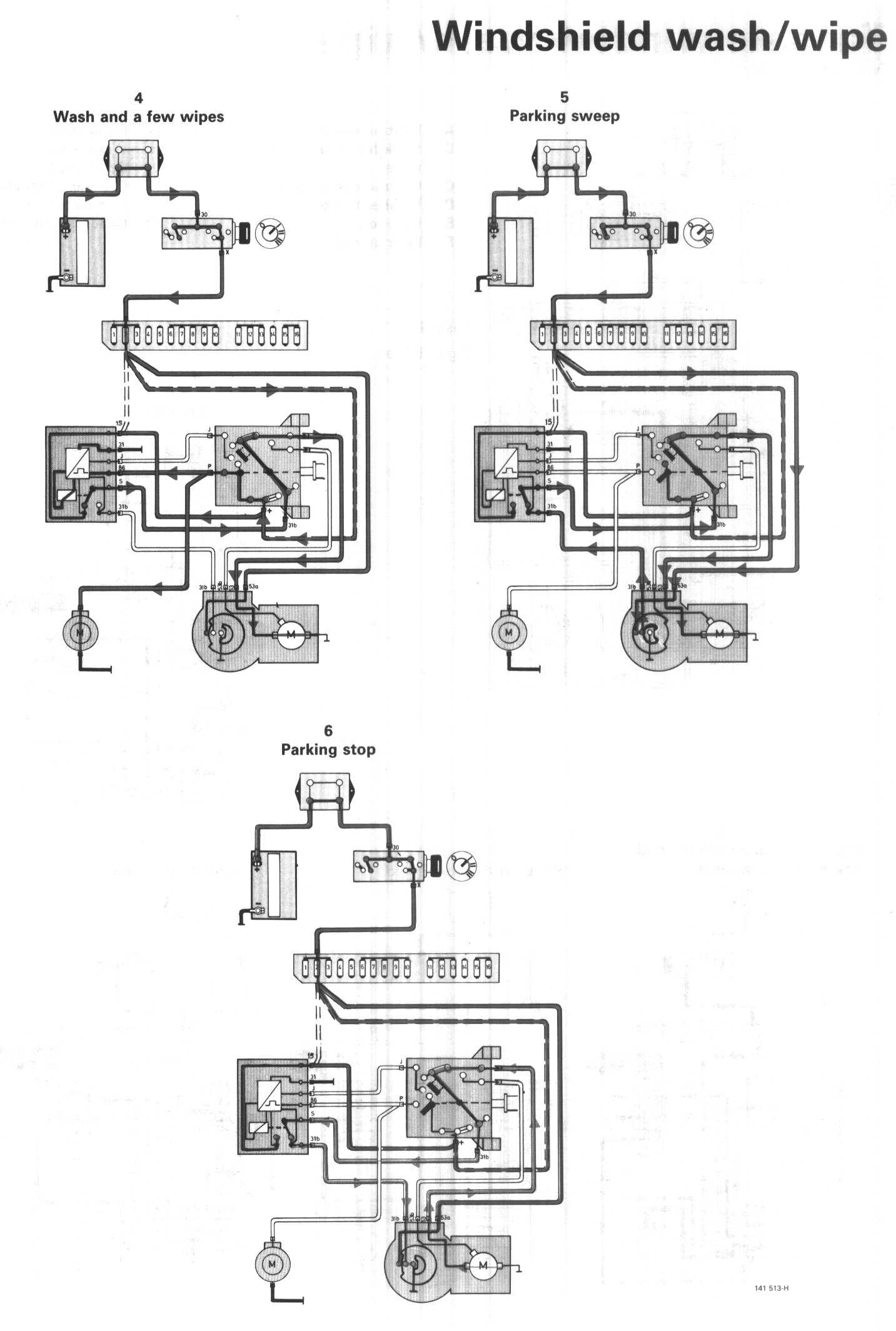

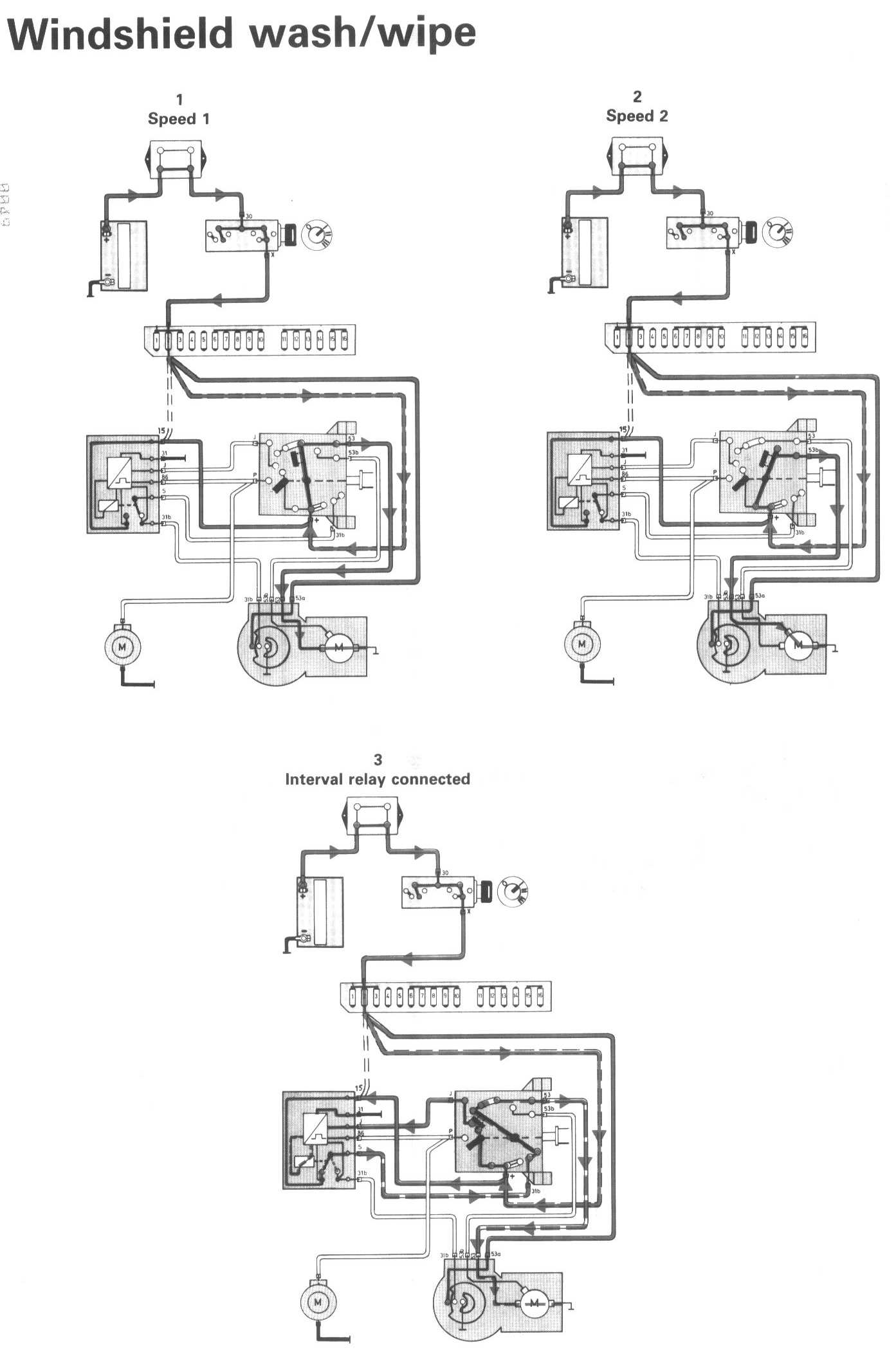

Wiring Diagrams:

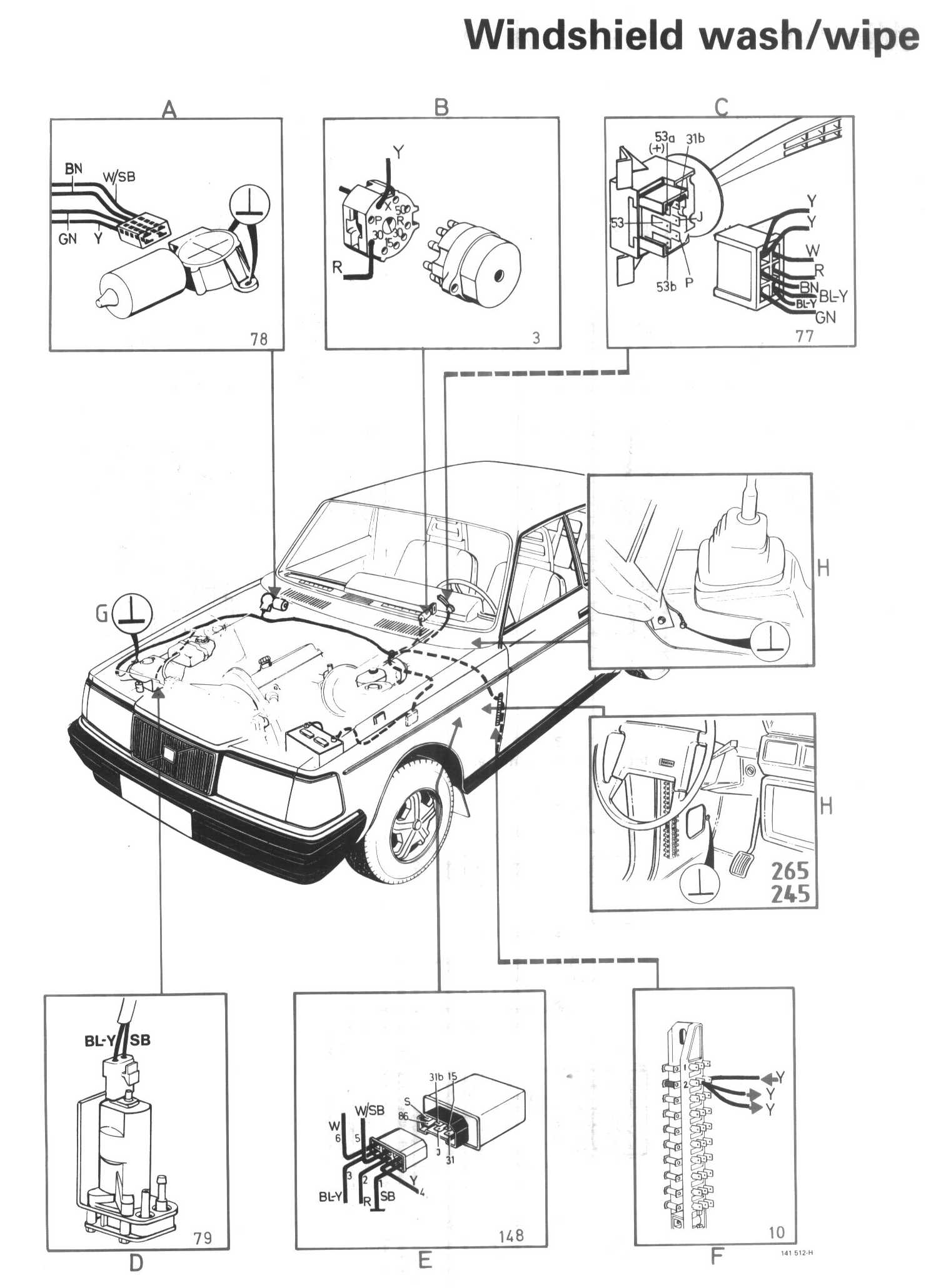

Location/Connector Views:

Conditions 1:

Conditions 2:

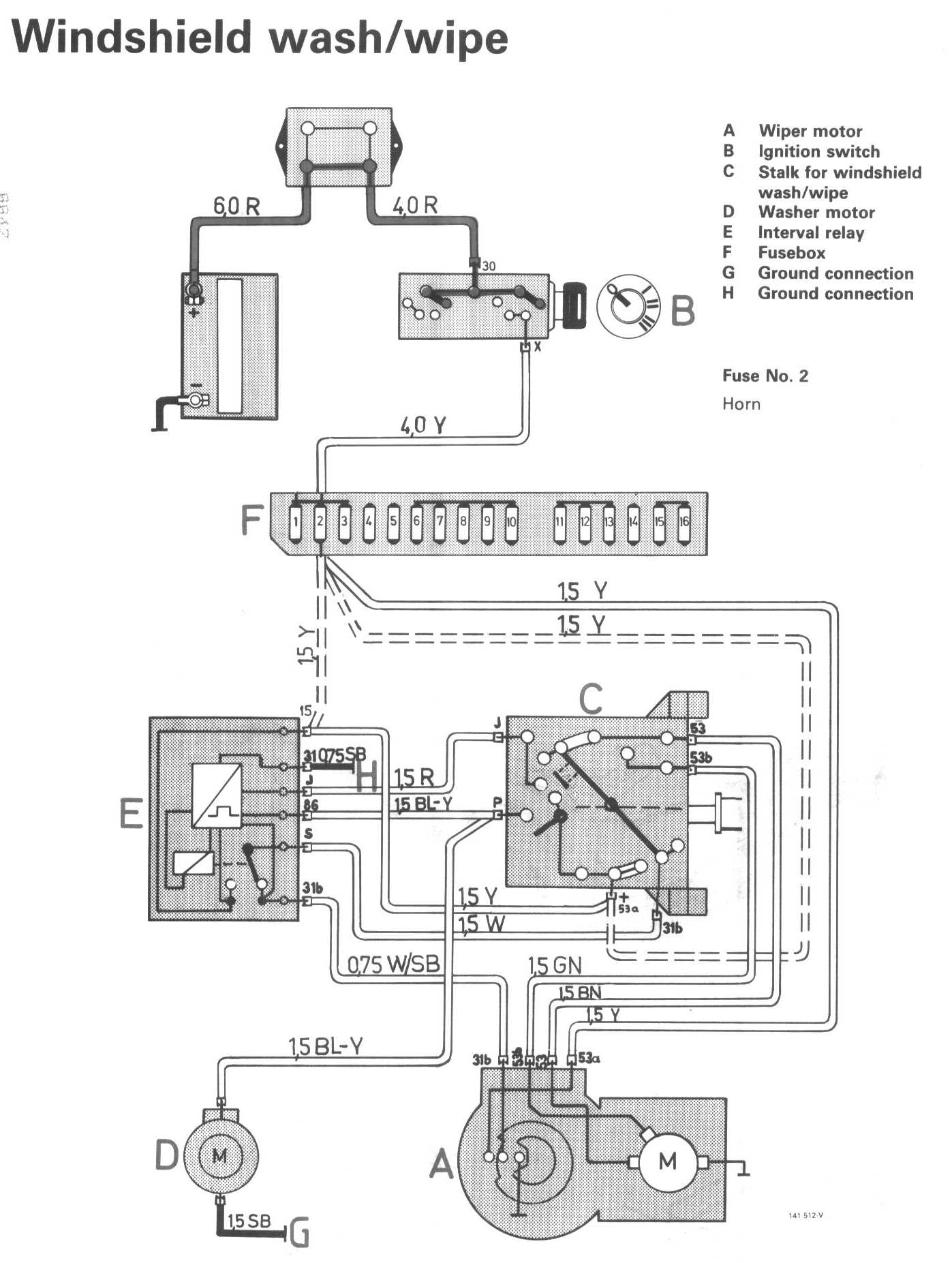

LEGEND
A Wiper motor
B Ignition switch
C Stalk for windshield wash/wipe
D Washer motor
E Interval relay
F Fusebox
G Ground connection
H Ground connection
