Shift Indicator Light

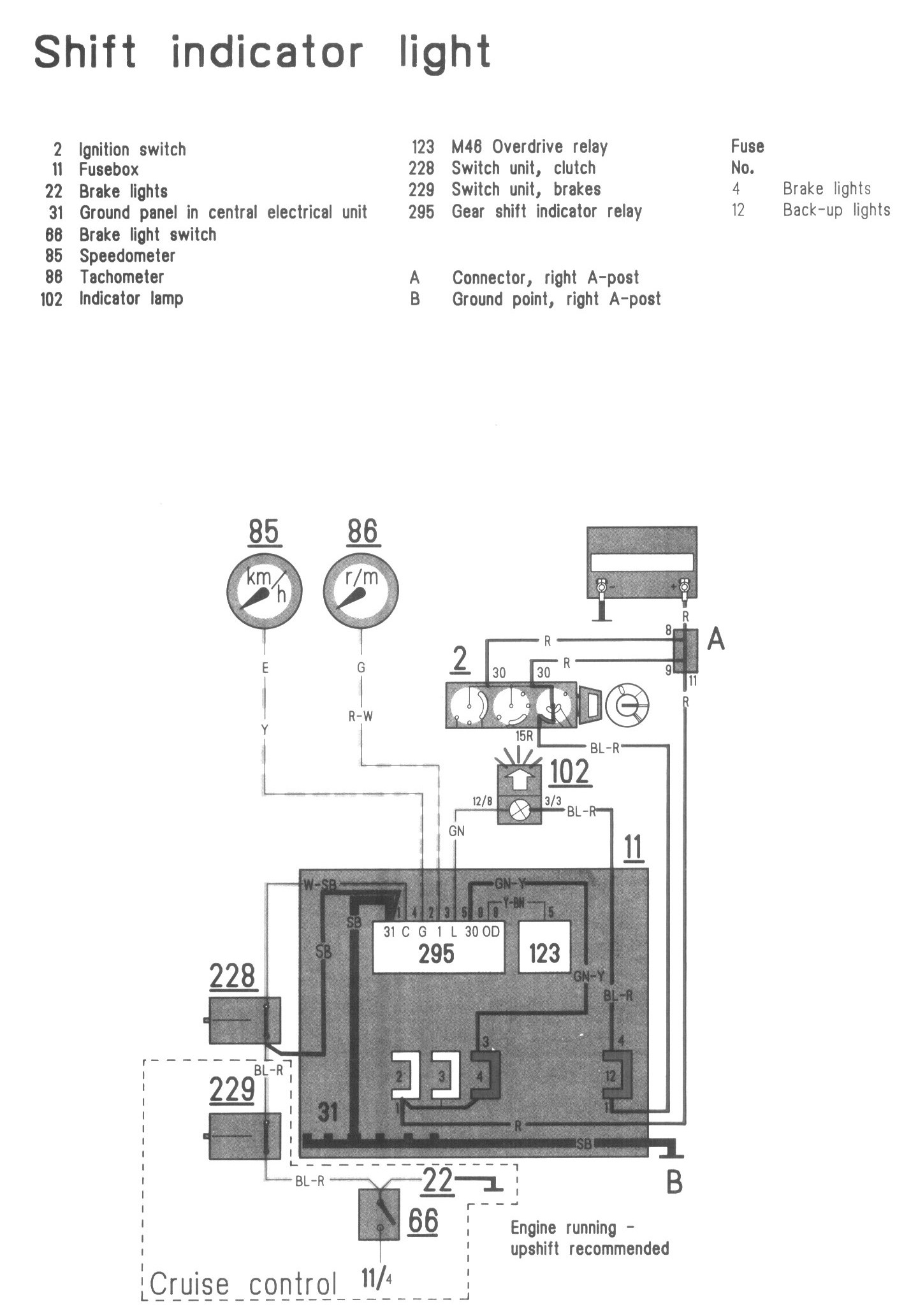

Wiring Diagrams:

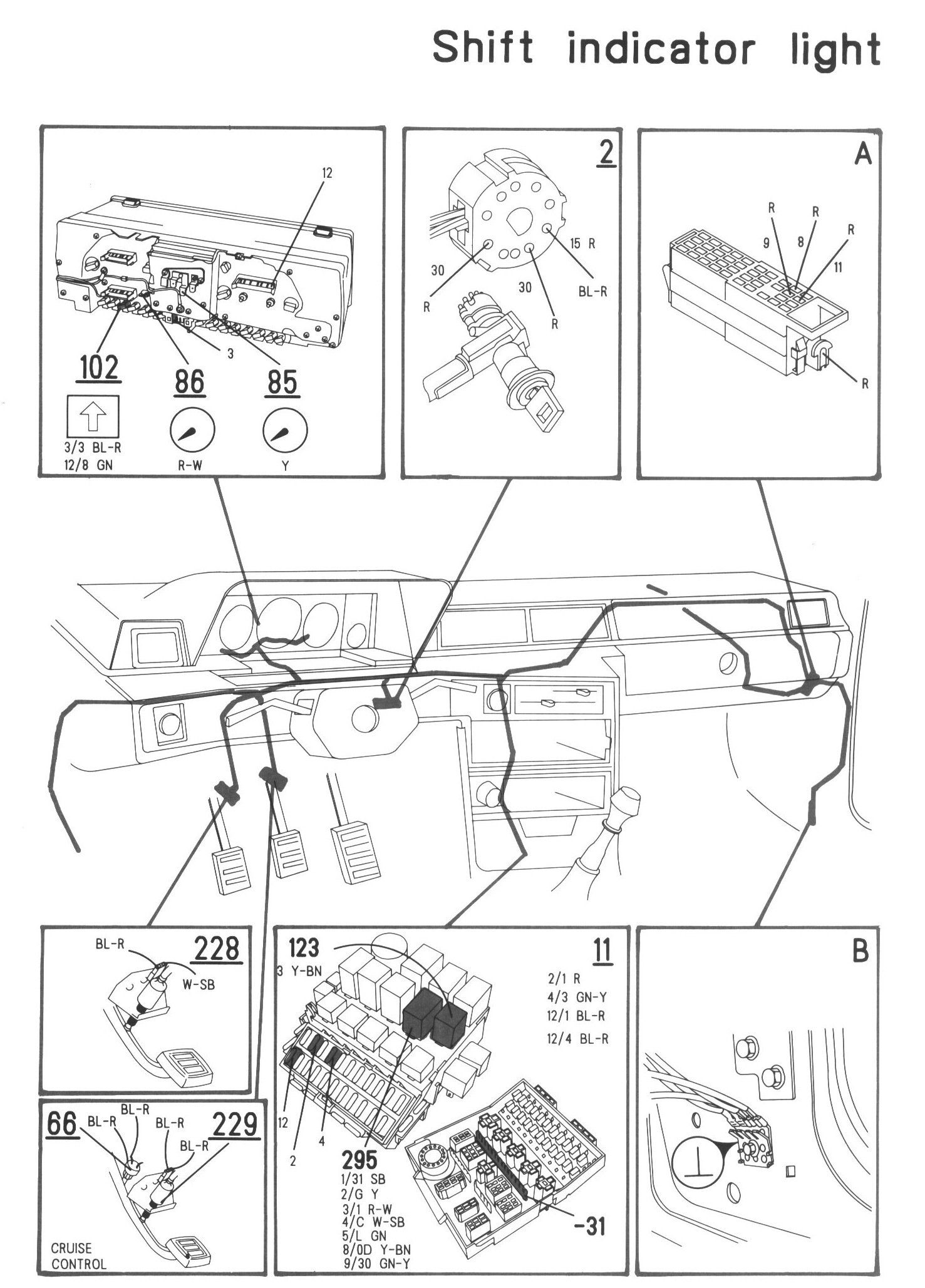

Component / Connector Views:

LEGEND
2 Ignition switch

11 Fusebox
22 Brake lights
31 Ground panel in central electrical unit
88 Brake light switch
95 Speedometer
98 Tachometer

102 Indicator lamp
123 M46 Overdrive relay
228 Switch unit, clutch
229 Switch unit, brakes
295 Gear shift indicator relay

A Connector, right A-post
B Ground point, right A-post
