Automatic Climate Control

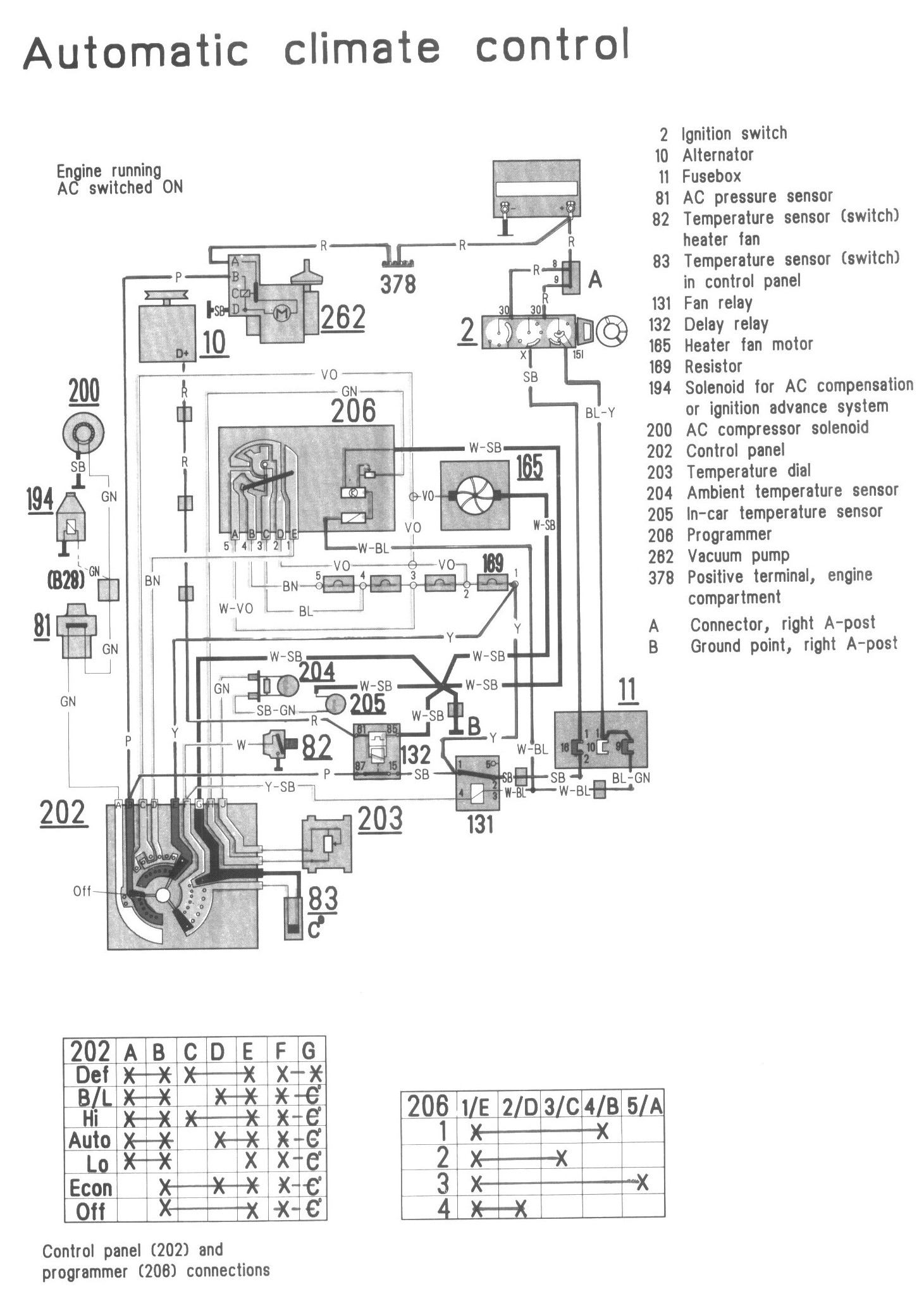

Wiring Diagrams:

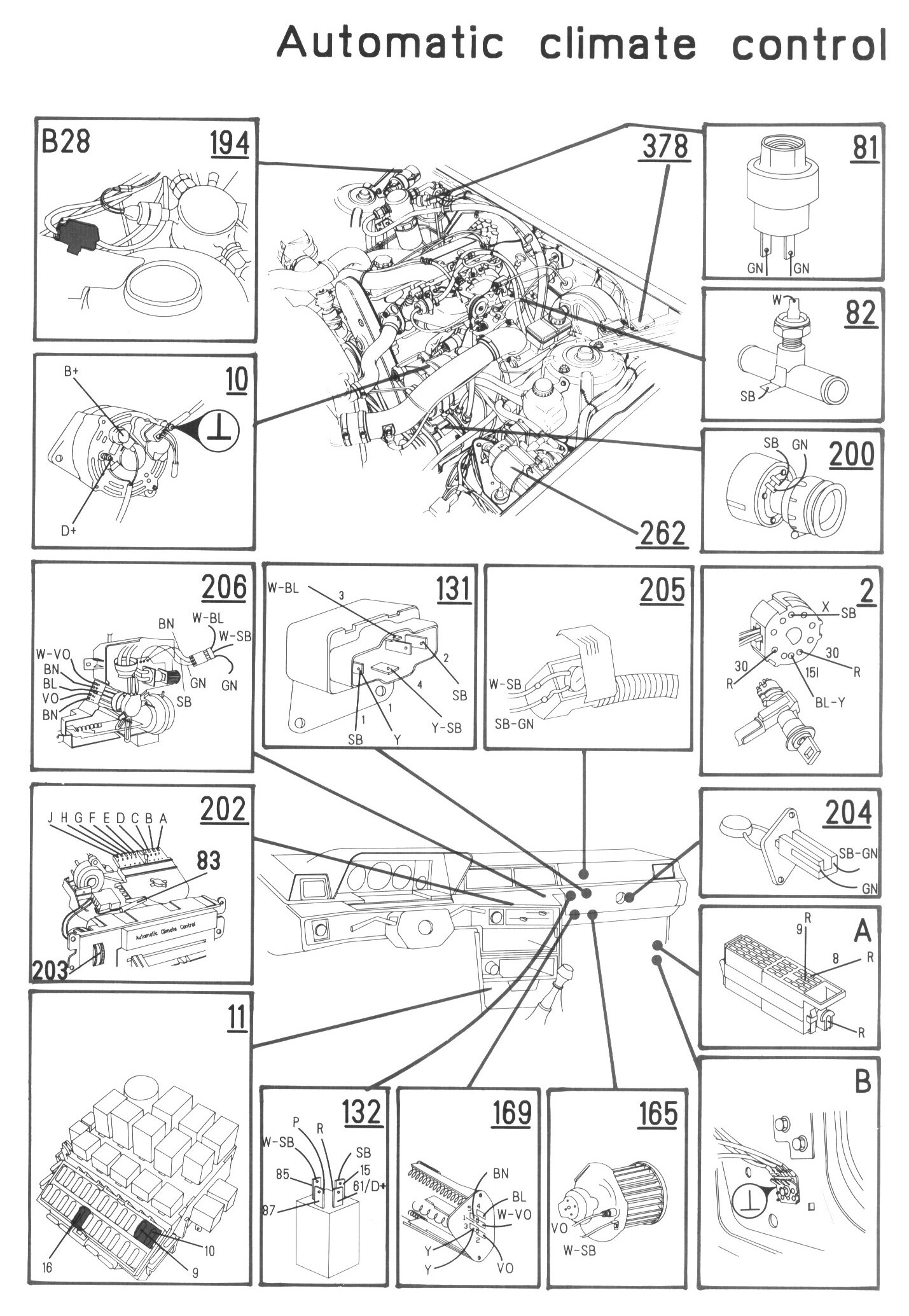

Component / Connector Views:

LEGEND
2 Ignition switch

10 Alternator
11 Fuse box
81 AC pressure switch
82 Temperature sensor (switch) heater fan
83 Temperature sensor (switch) in control panel

131 Fan relay
132 Delay relay
185 Heater fan motor
189 Resistor
194 Solenoid for AC compensation or ignition advance system
200 AC compressor solenoid
202 Control panel
203 Temperature dial
204 Ambient temperature sensor
205 In-car temperature sensor
208 Programmer
282 Vacuum pump
378 Positive terminal, engine compartment

A Connector, right A-post
B Ground point, right A-post
