Fuel Injection System

Component Locations:

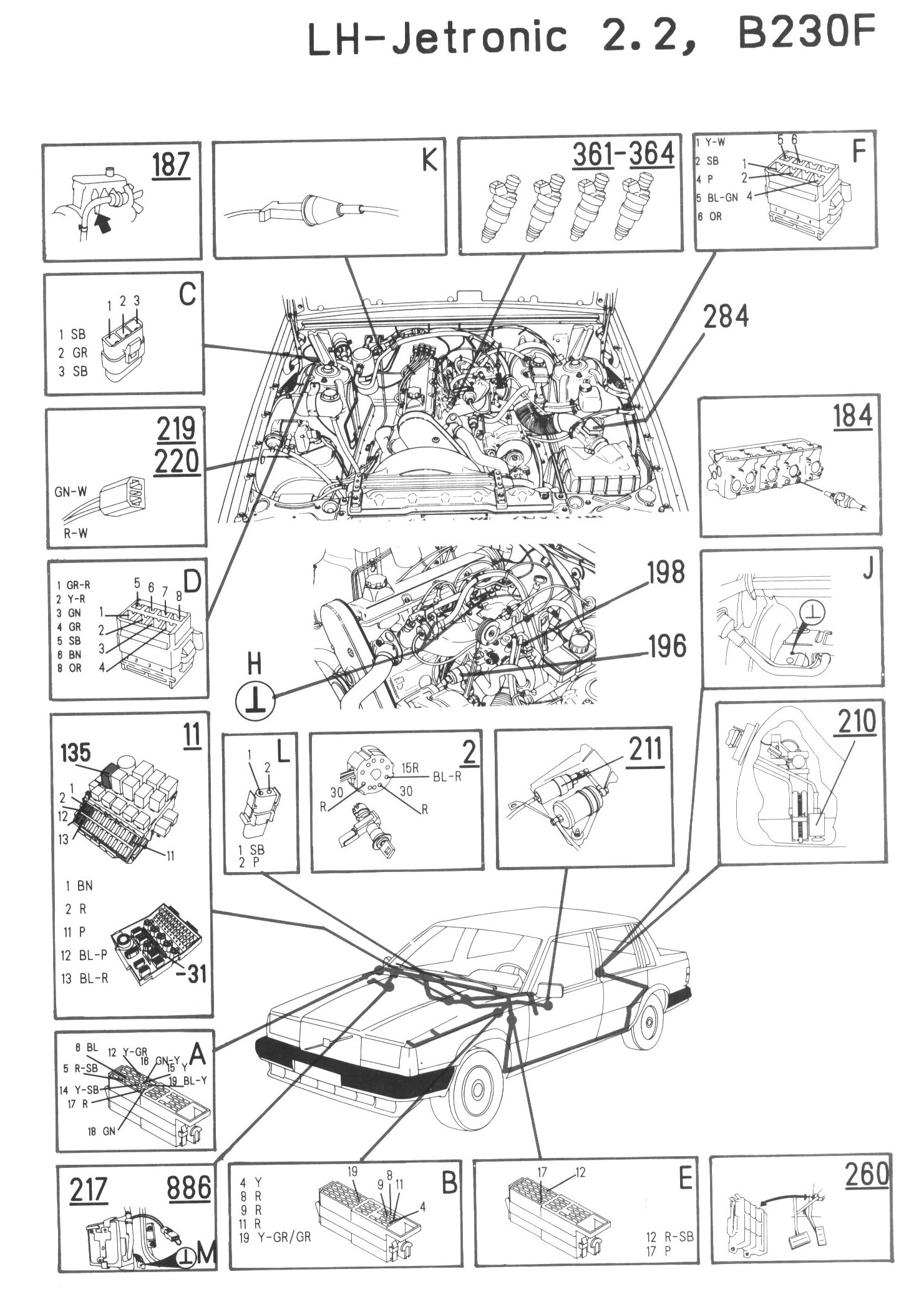

Wiring Diagram:

LEGEND
2 Ignition switch

31 Ground point in central electrical unit

135 Relay, fuel injection
187 Lambda sond
198 Air control valve
198 Throttle switch, LH-Jetronic
202 CU heater unit
210 Tank pump 1.8 A
211 Fuel pump 8.5 A
217 Control unit LH-Jetronic
219 Test point Lambda sond system
220 Test point CIS-system
280 Ignition system control unit
284 Air mass meter
286 Bridge connector

A Connector, right A-post
B Connector, left A-post
C Connector, right wheelhouse
D Connector, right wheelhouse
E Connector, left A-post
F Connector, left wheelhouse
H Ground point, inlet manifold
J Ground point in trunk
K Connector on bulkhead
L Connector, central electrical unit
M Ground point, right A-post Soldered joint
