Ignition System

Component Locations:

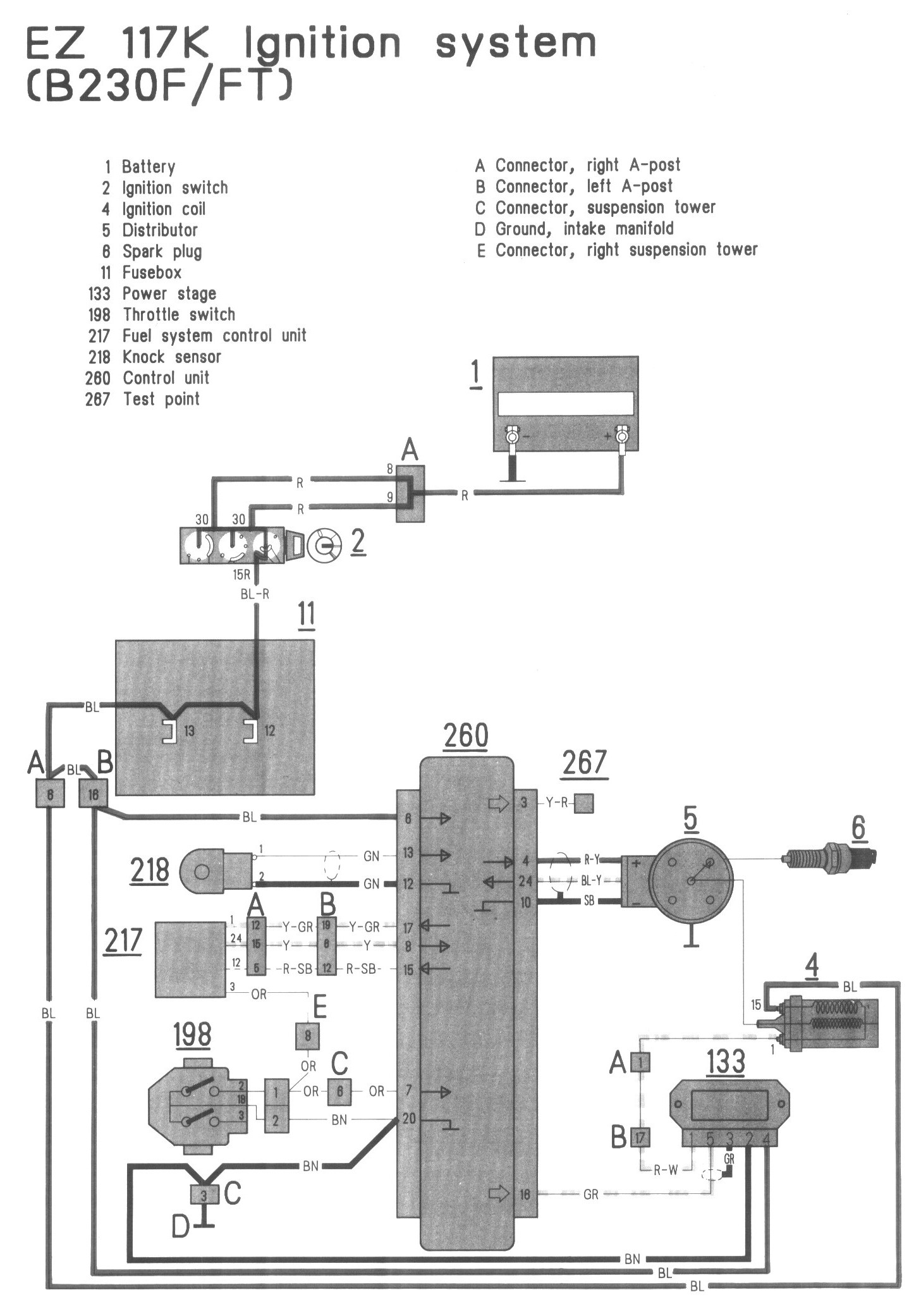

Wiring Diagram:

LEGEND
1 Buttery
2 Ignition switch
4 Ignition coil
5 Distributor
6 Spark plug

11 Fusebox

133 Power stage
199 Throttle switch
217 Fuel system control unit
218 Knock sensor
280 Control unit
287 Test point

A Connector, right A-post
B Connector, left A-post
C Connector, suspension tower
D Ground, intake manifold
E Connector, right suspension tower
