Temperature Controlled Ignition Advance

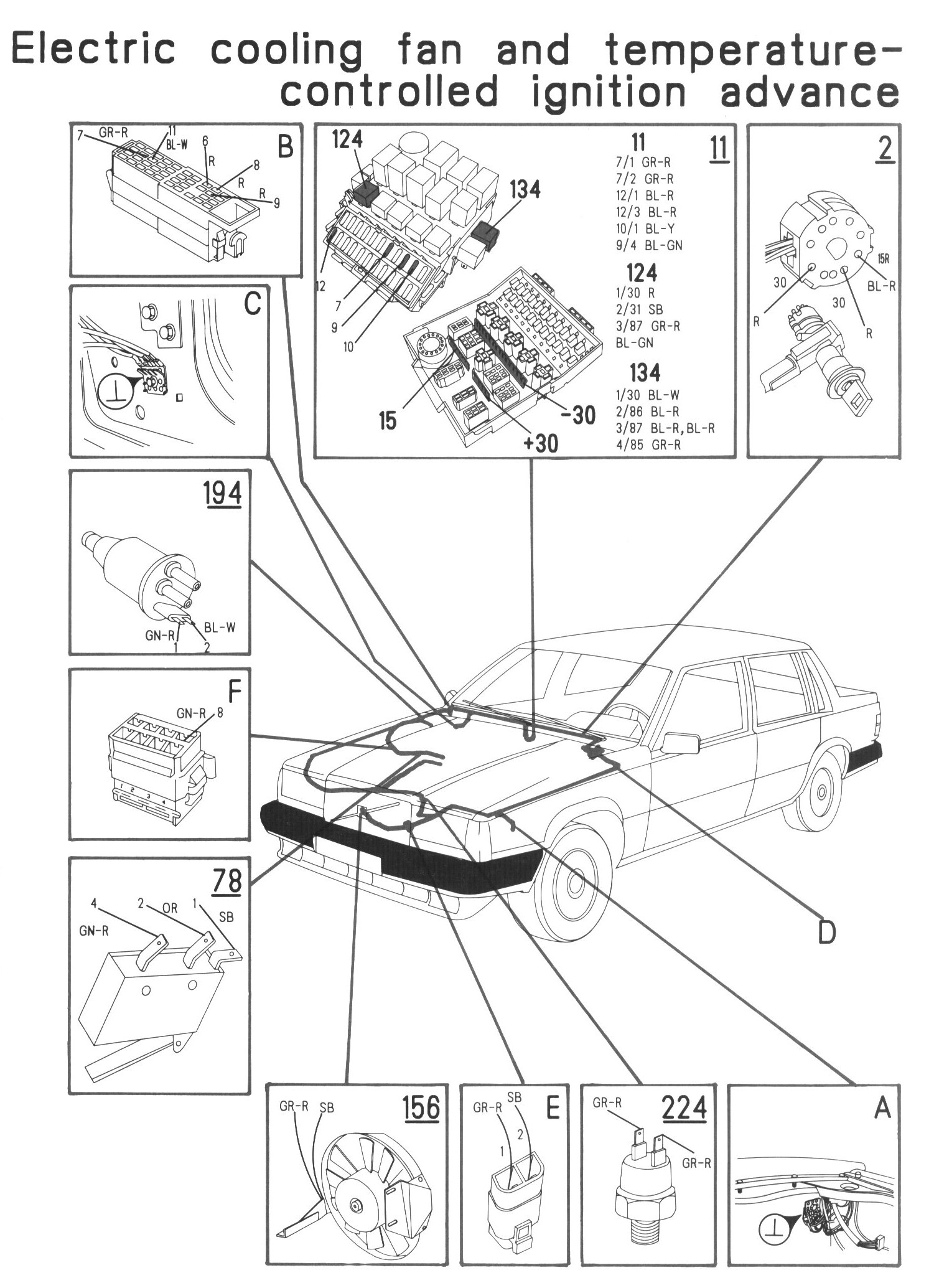

Component / Connector Views:

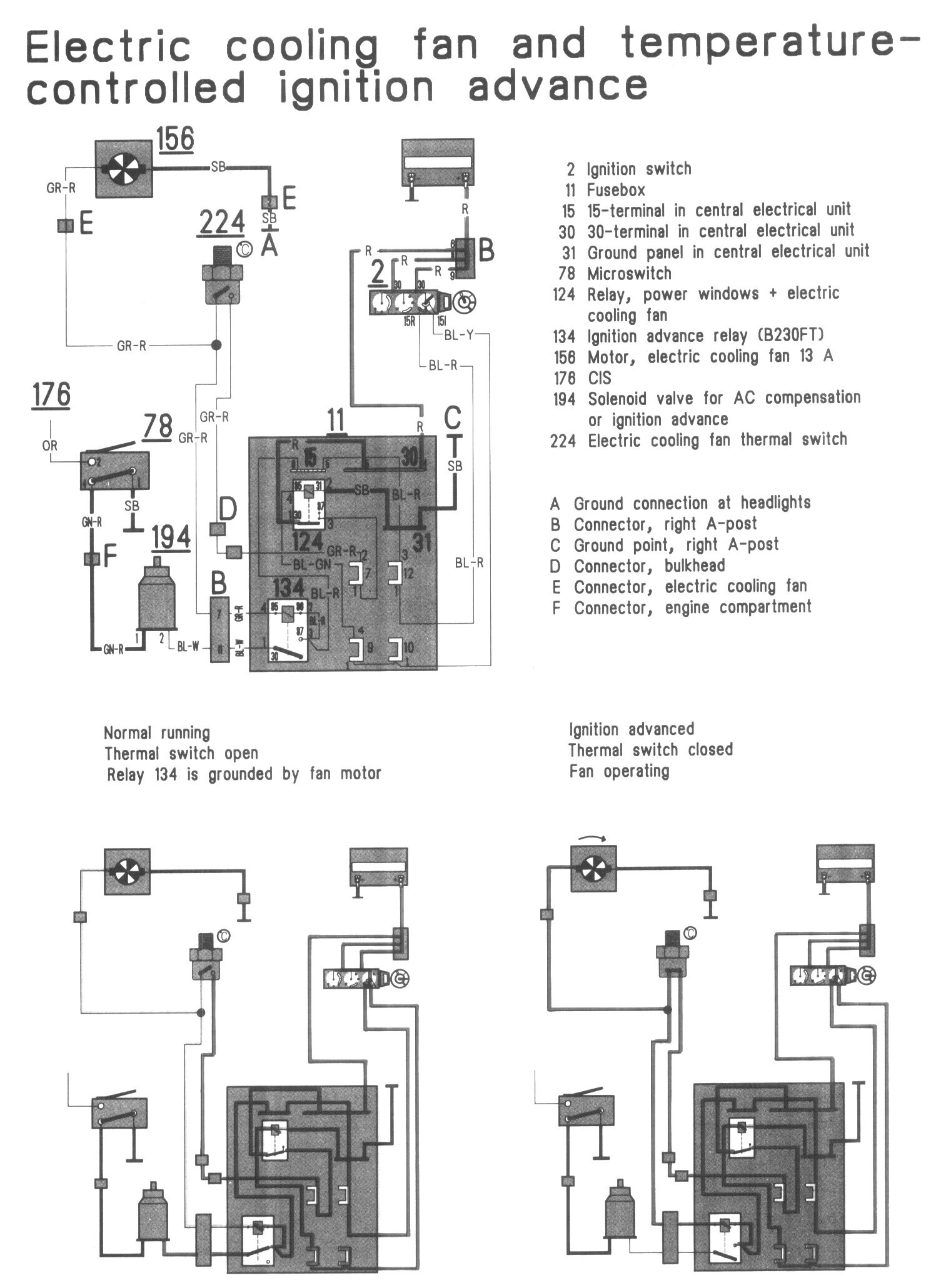

Wiring Diagrams:

LEGEND
2 Ignition switch

11 Fusebox
15 15-terminal in central electrical unit
30 30-terminal in central electrical unit
31 Ground panel in central electrical unit
78 Microswitch

124 Relay, power windows + electric cooling fan
134 Ignition advance relay (B23OFT)
156 Motor, electric cooling fan 13 A
176 CIS
194 Solenoid valve for AC compensation or ignition advance
224 Electric cooling fan thermal switch

A Ground connection at headlights
B Connector, right A-post
C Ground point, right A-post
D Connector, bulkhead
E Connector, electric cooling fan
F Connector, engine compartment
