Windshield Wash / Wipe

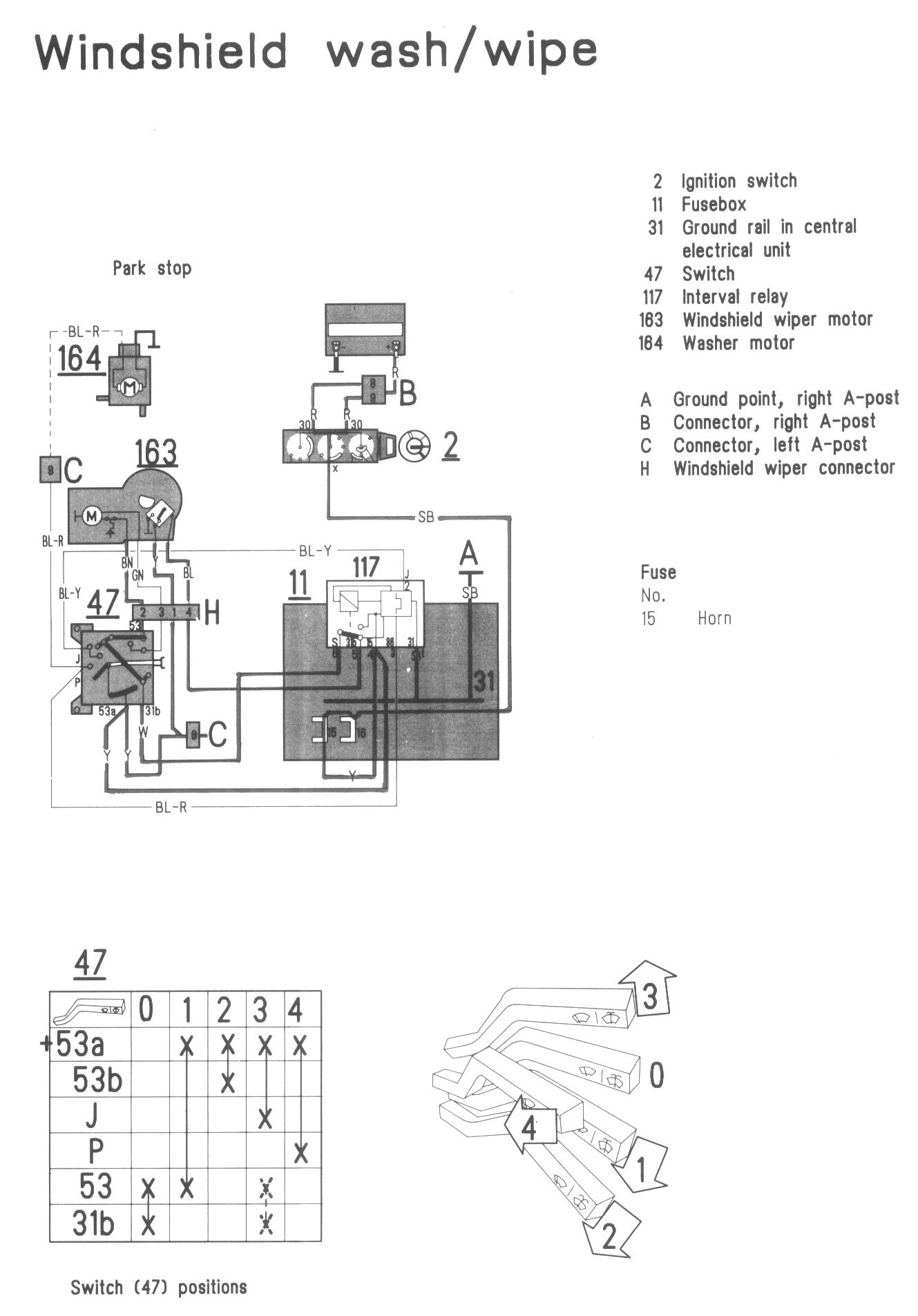

Wiring Diagrams:

Component / Connector Views:

LEGEND
2 Ignition switch

11 Fusebox
31 Ground rail in central electrical unit
47 Switch

117 Interval relay
183 Windshield wiper motor
184 Washer motor

A Ground point, right A-post
B Connector, right A-post
C Connector, left A-post
H Windshield wiper connector
