Heated Seats (Dual-Output)

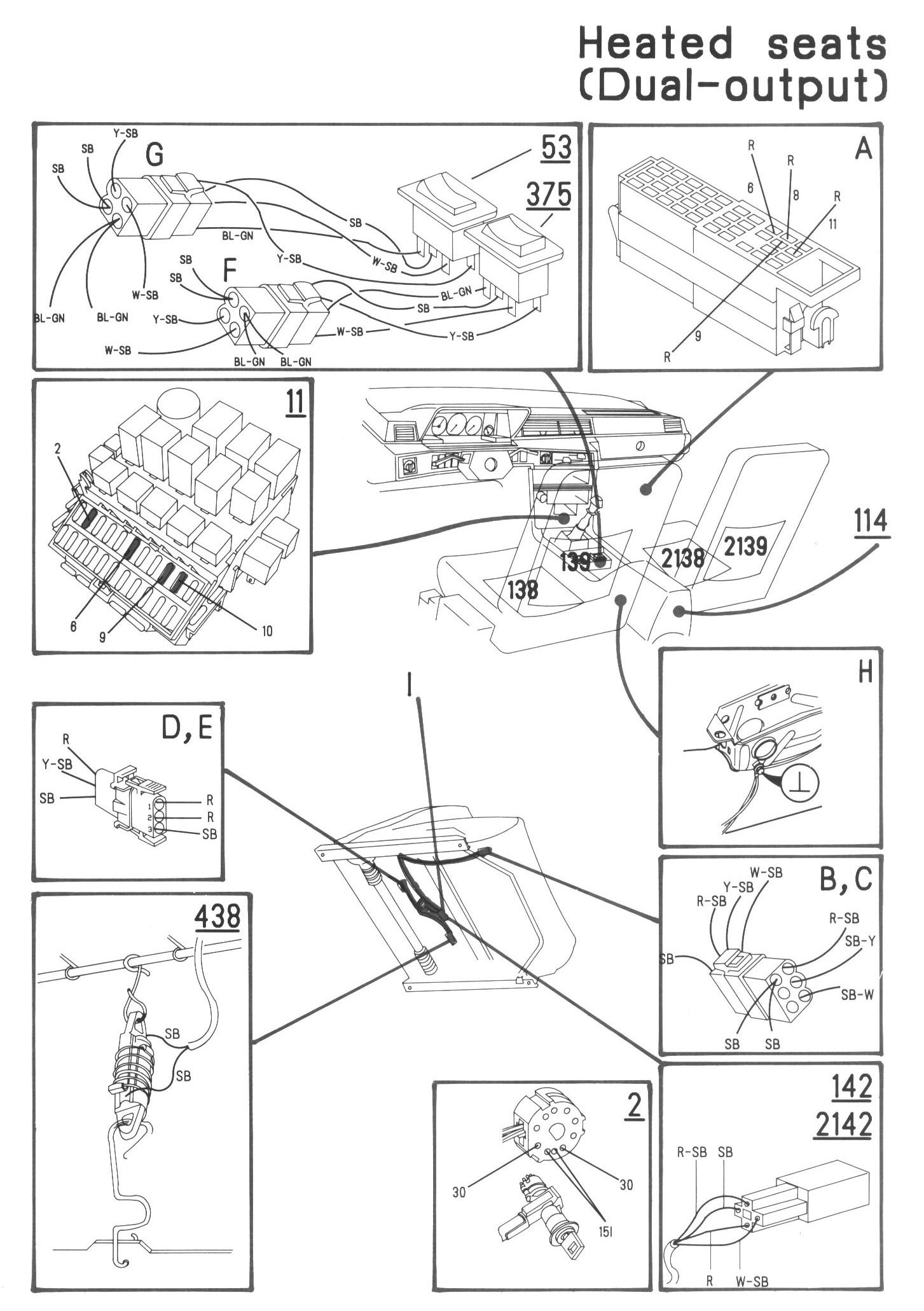

Component / Connector Views:

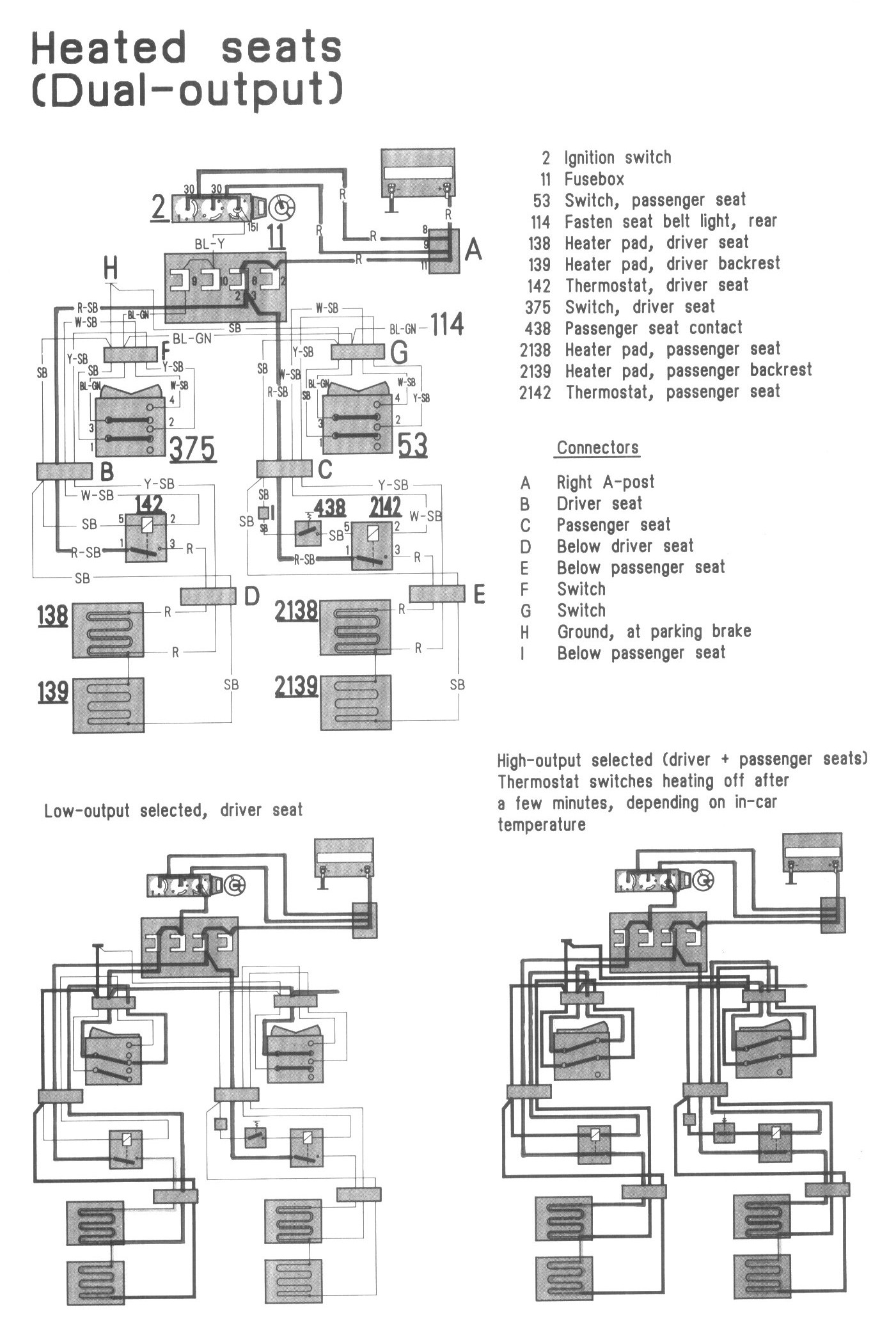

Wiring Diagrams:

LEGEND
2 Ignition switch

11 Fusebox
53 Switch, passenger seat

114 Fasten seat belt light, rear
138 Heater pad, driver seat
139 Heater pad, driver backrest
142 Thermostat, driver seat
375 Switch, driver Beat
438 Passenger seat contact

2138 Heater pad, passenger seat
2139 Heater pad, passenger backrest
2142 Thermostat, passenger seat

Connectors
A Right A-post
B Driver seat
C Passenger seat
D Below driver seat
E Below passenger seat
F Switch
G Switch
H Ground, at parking brake
I Below passenger seat
