Heated Seats (Single-Output)

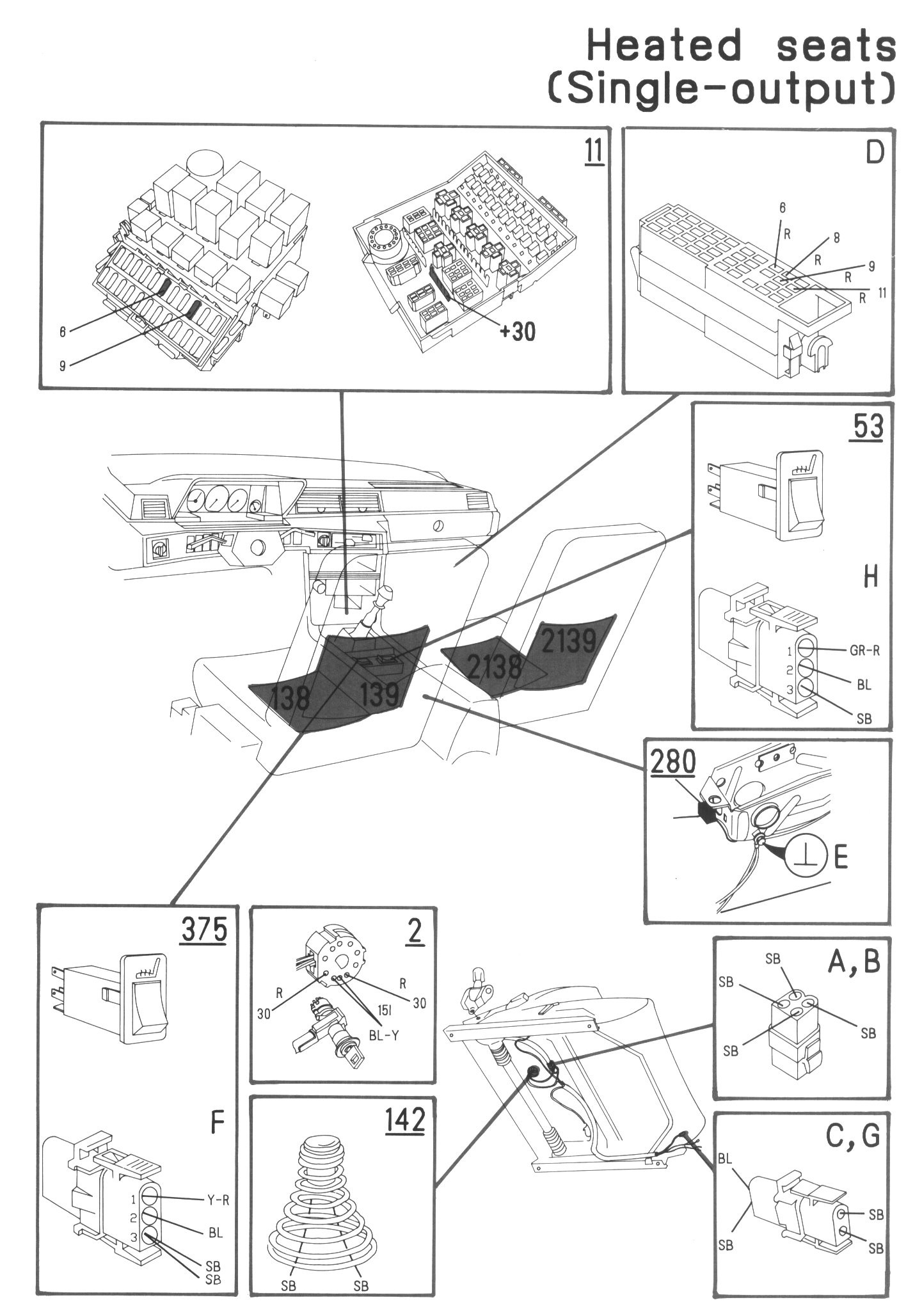

Component / Connector Views:

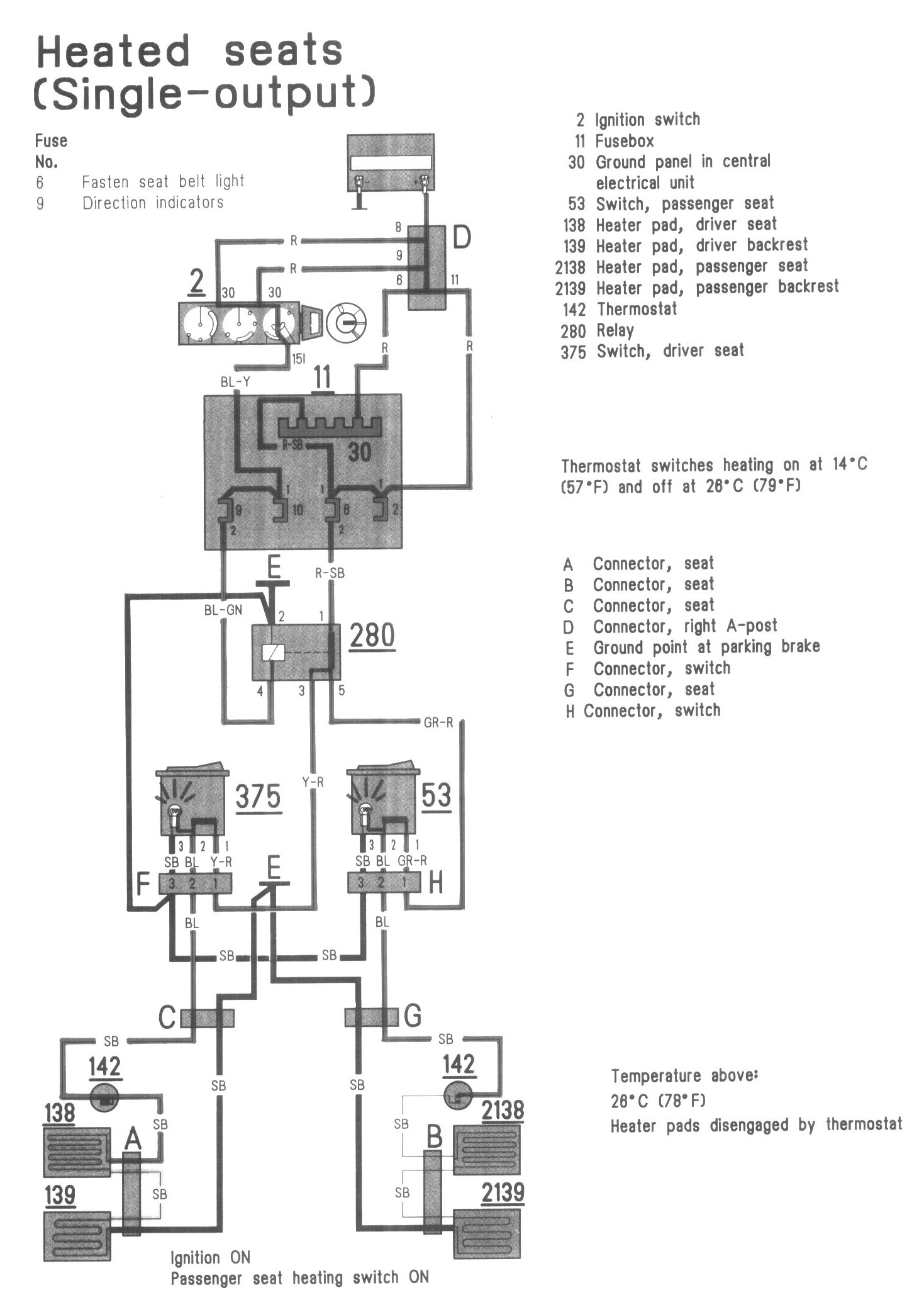

Wiring Diagrams:

LEGEND
2 Ignition switch

11 Fusebox
30 Ground panel in central electrical unit
53 Switch, passenger seat

138 Heater pad, driver seat
139 Heater pad, driver backrest

2138 Heater pad, passenger seat
2139 Heater pad, passenger backrest

142 Thermostat
280 Relay
375 Switch, driver seat

Thermostat switches heating on at 14°C (57°F) and off at 26°C (79°F)

A Connector, seat
B Connector, seat
C Connector, seat
D Connector, right A-post
E Ground point at parking brake
F Connector, switch
G Connector, seat
H Connector, switch

Temperature above: 26°C (78°F)
Heater pads disengaged by thermostat
