Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volvo
>>
1986
>>
740 L4-2320cc 2.3L SOHC Turbo VIN 87 B230FT
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

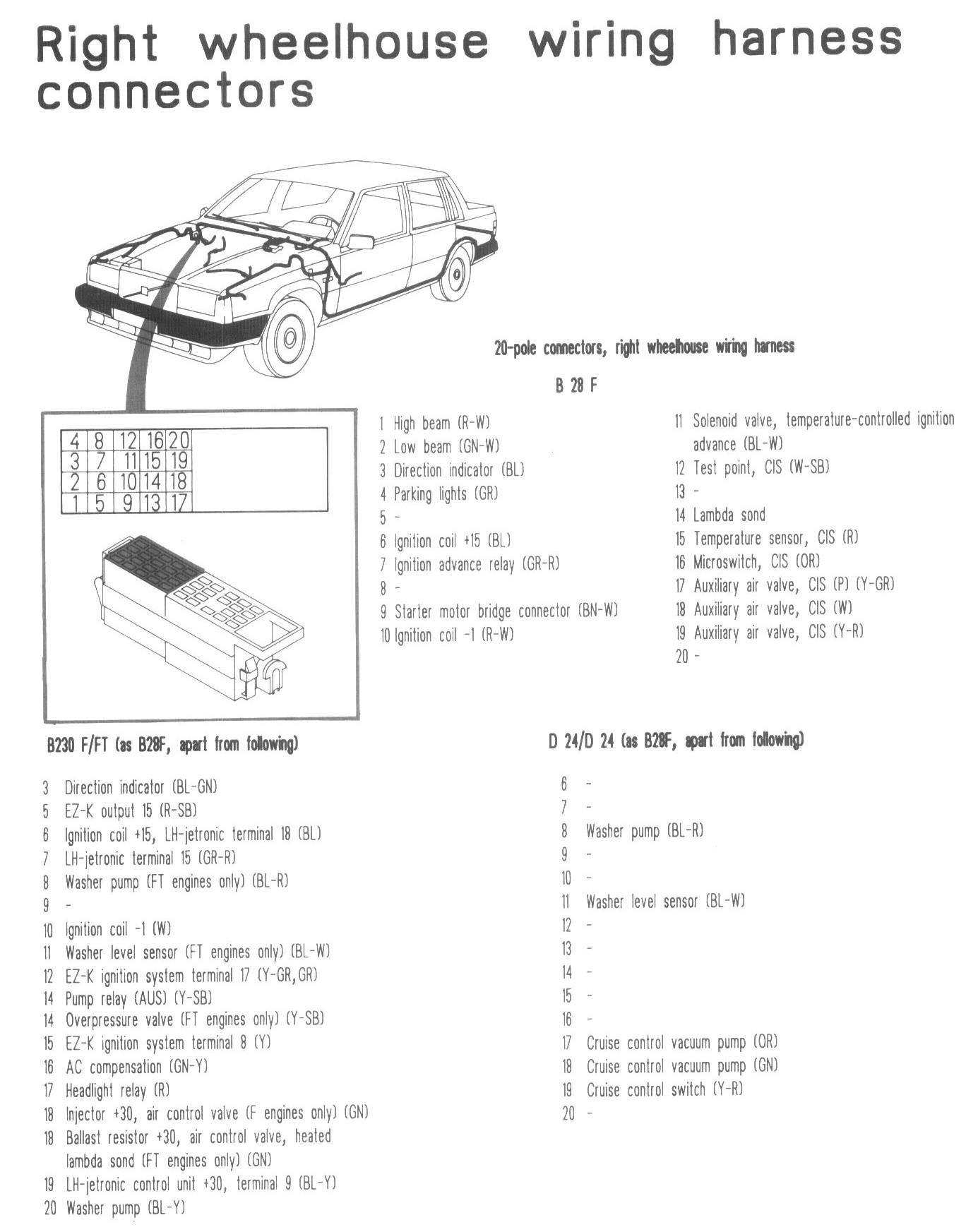

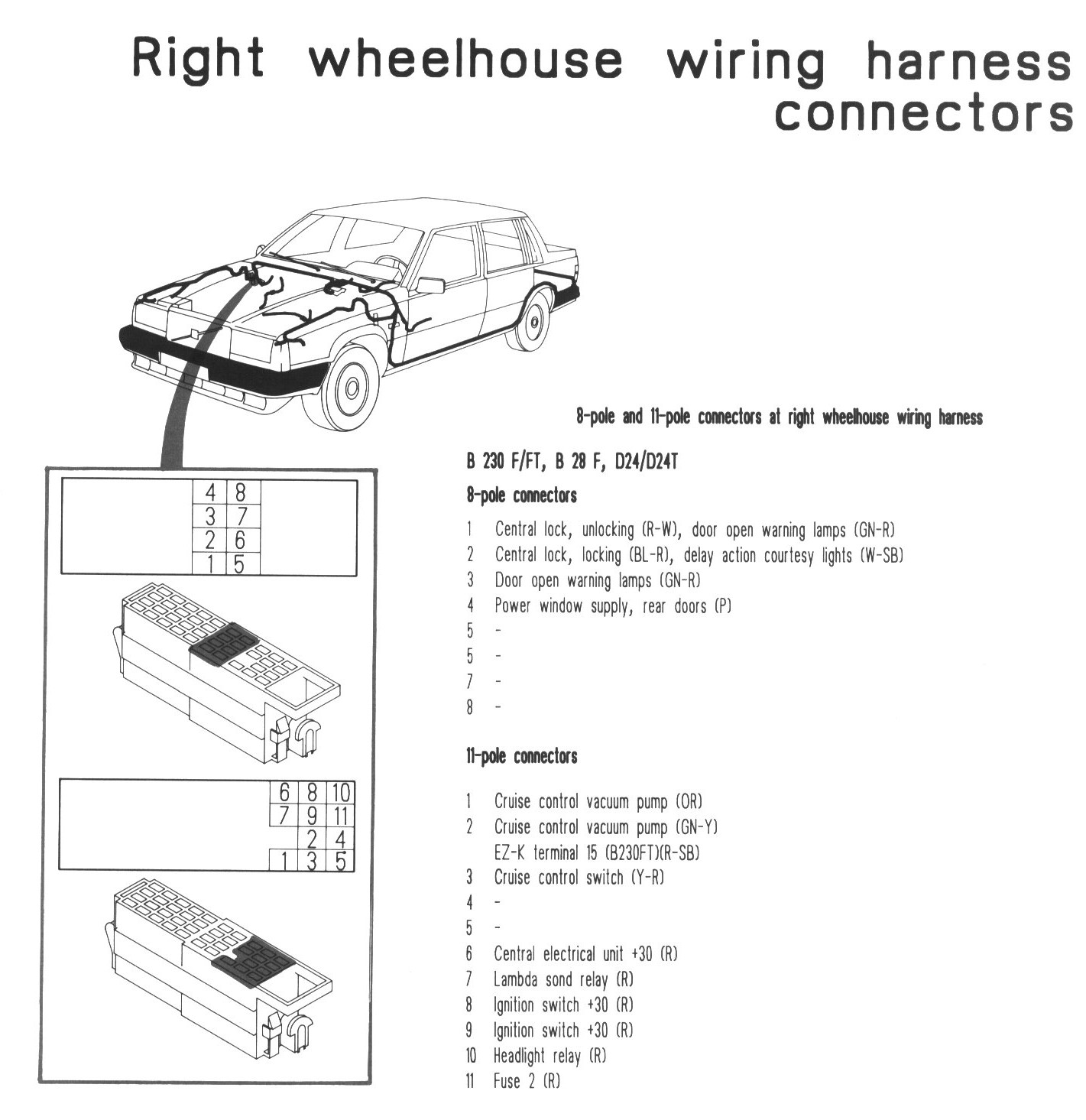

Right Wheelhouse Wiring Harness
Right Wheelhouse Wiring Harness
