System Diagram

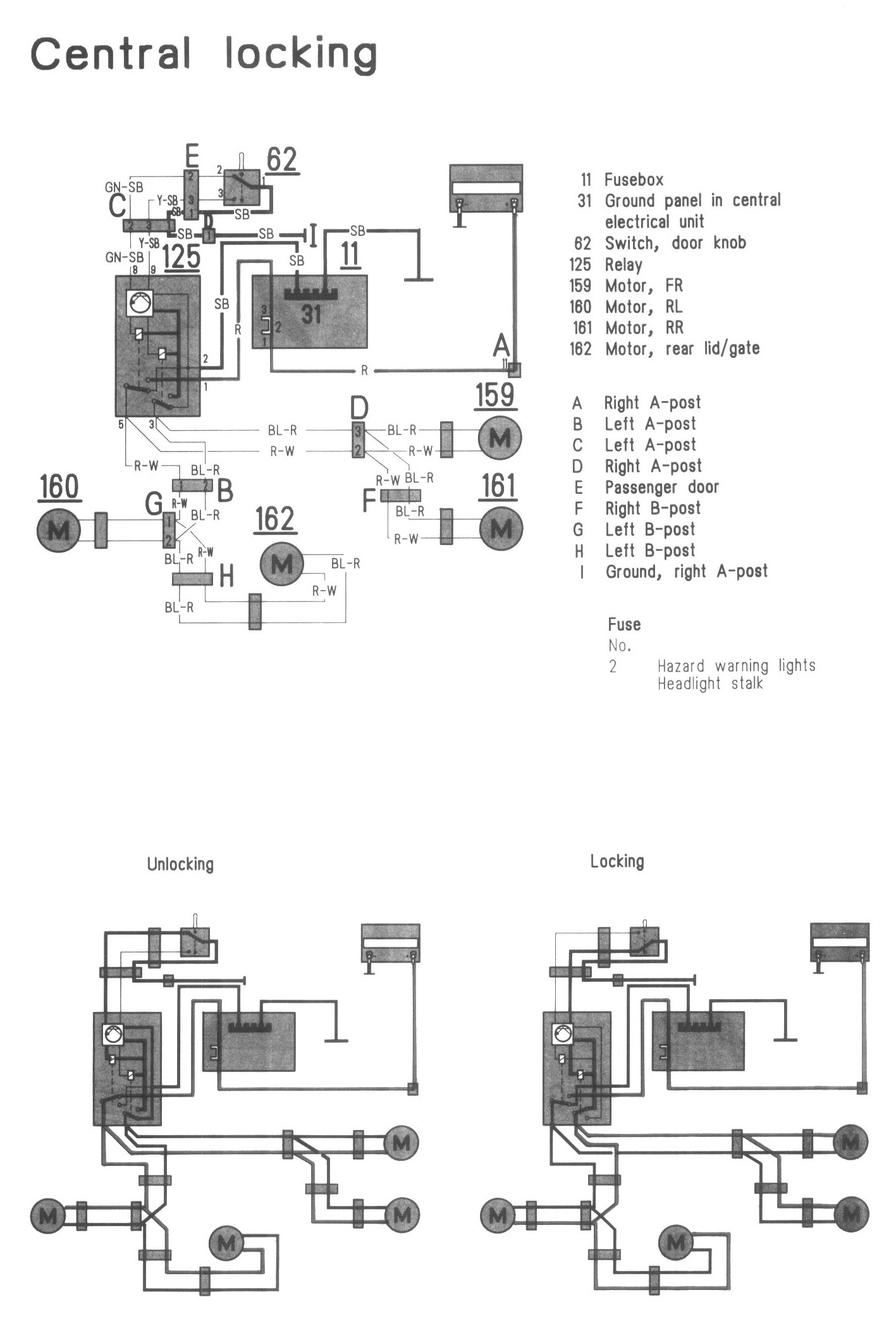

Wiring Diagrams:

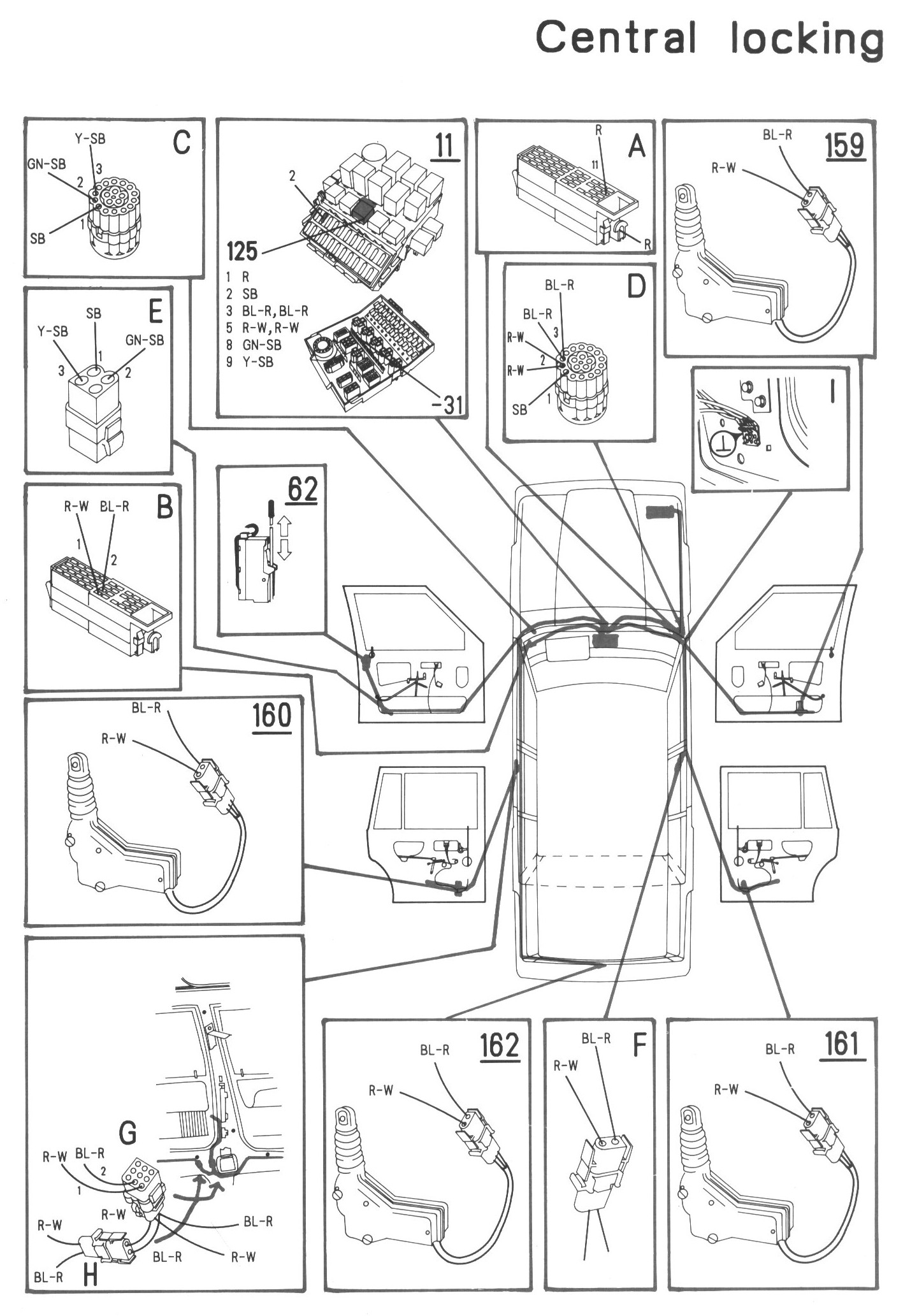

Component / Connector Views:

LEGEND
11 Fusebox
31 Ground panel in central electrical unit
62 Switch, door knob

125 Relay
159 Motor, FR
160 Motor, RL
161 Motor, RR
162 Motor, rear lid/gate

A Right A-post
B Left A-post
C Left A-post
D Right A-post
E Passenger door
F Right B-post
G Left B-post
H Left B-post
I Ground, right A-post
