System Diagram

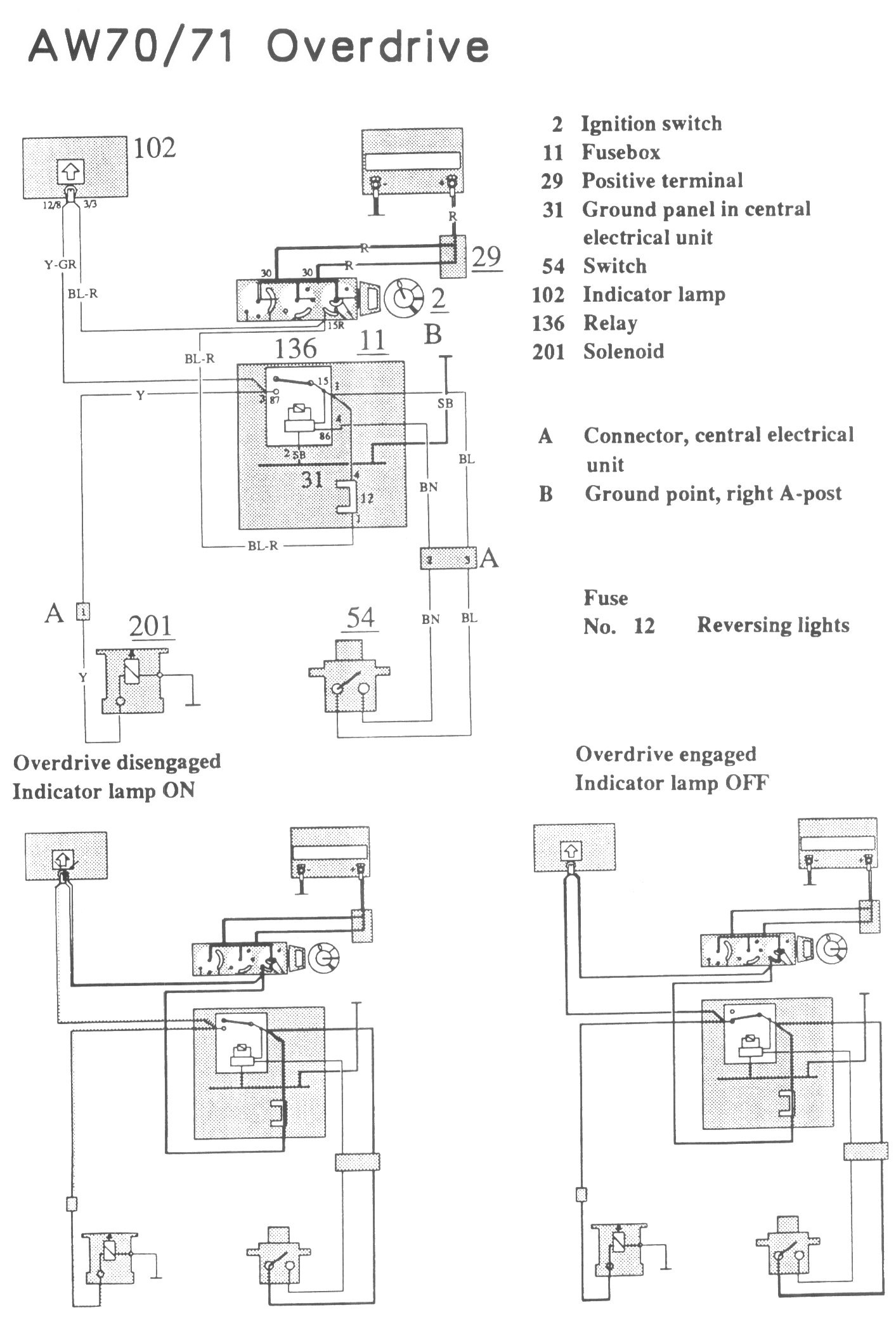

Wiring Diagrams:

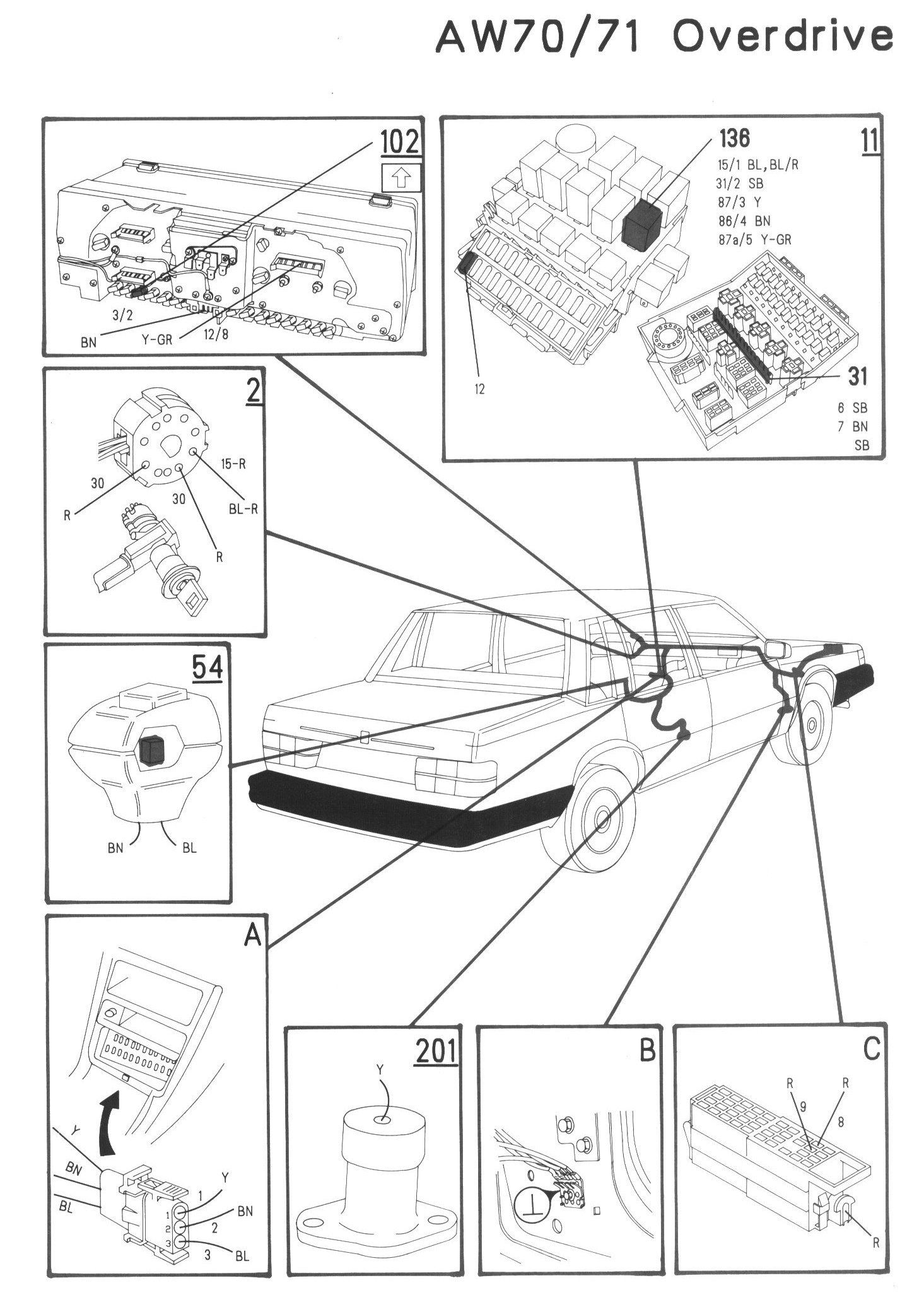

Component / Connector Views:

LEGEND
2 Ignition switch

11 Fusebox
31 Ground panel in central electrical unit
54 Switch

102 Indicator lamp
138 Relay
201 Solenoid

A Connector, central electrical unit
B Ground point, right A-post
C Connector, right A-post
