System Diagram

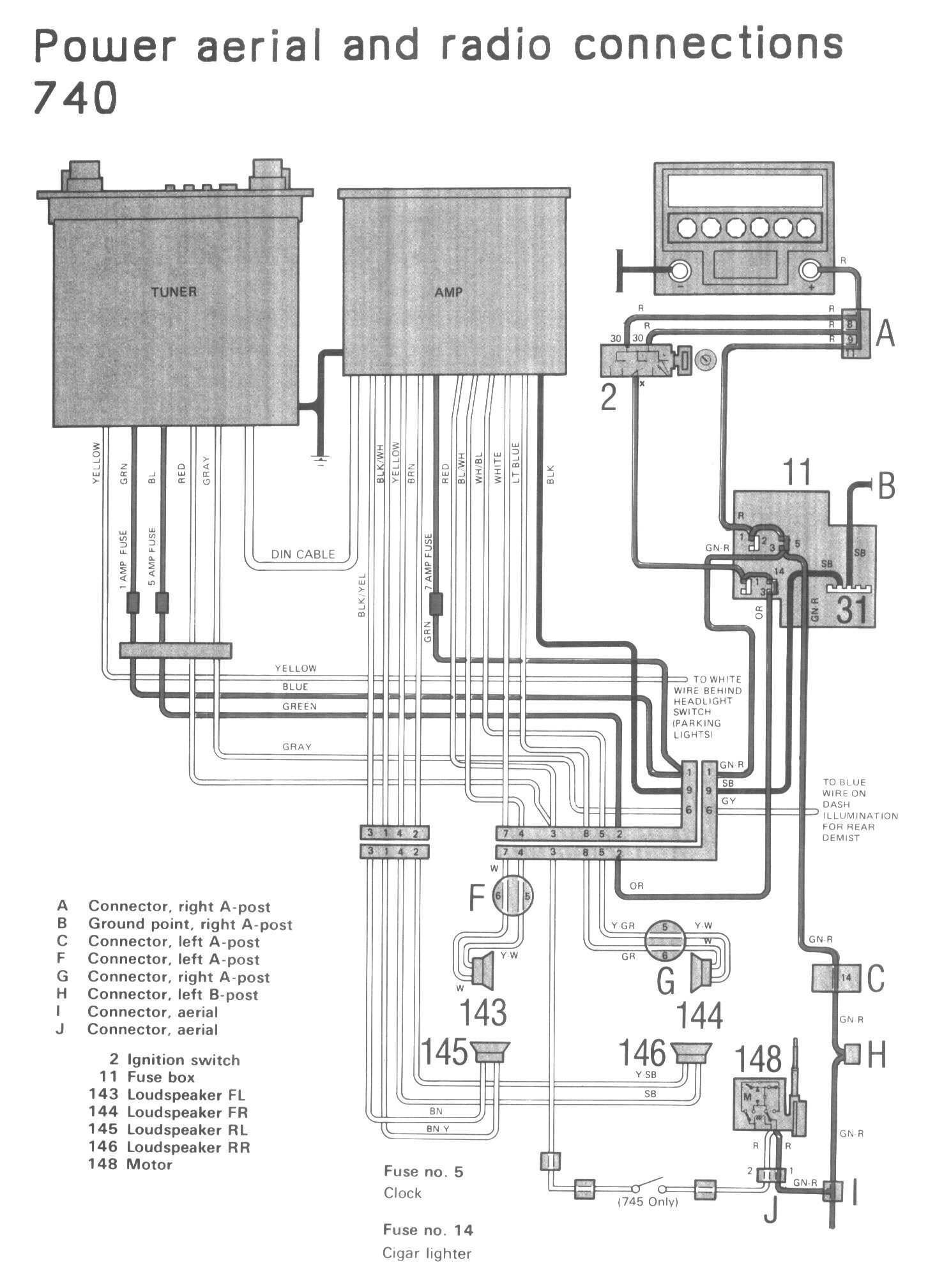

Wiring Diagrams:

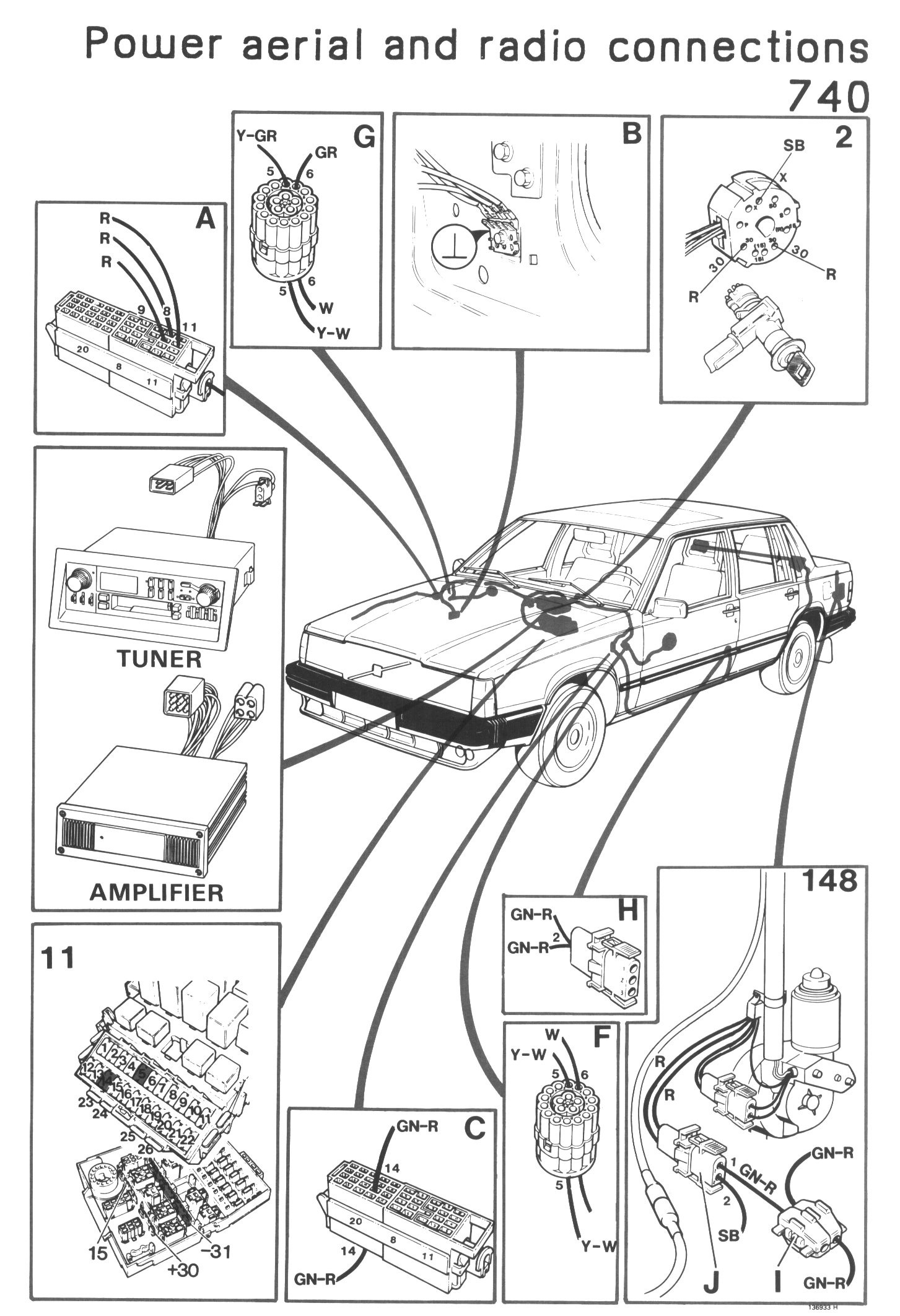

Component / Connector Views:

LEGEND
A Connector, right A-post
B Ground point. right A-post
C Connector, left A-post
F Connector, left A-post
G Connector, right A-post
H Connector, left B-post
I Connector, aerial
J Connector, aerial

2 Ignition switch

11 Fuse box

143 Loudspeaker FL
144 Loudspeaker FR
145 Loudspeaker RL
146 Loudspeaker RR
148 Motor
