Fog Lights (Front)

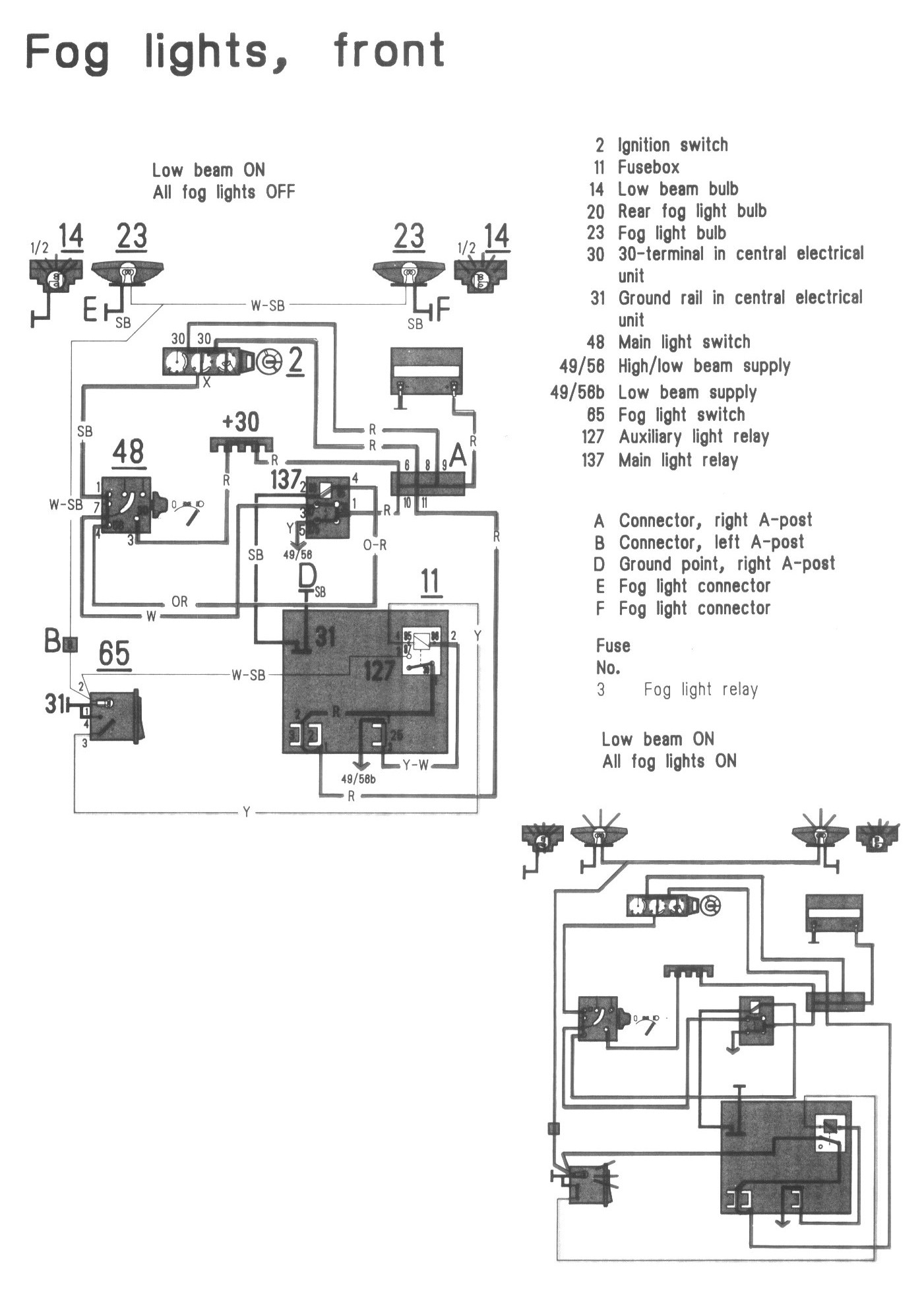

Wiring Diagrams:

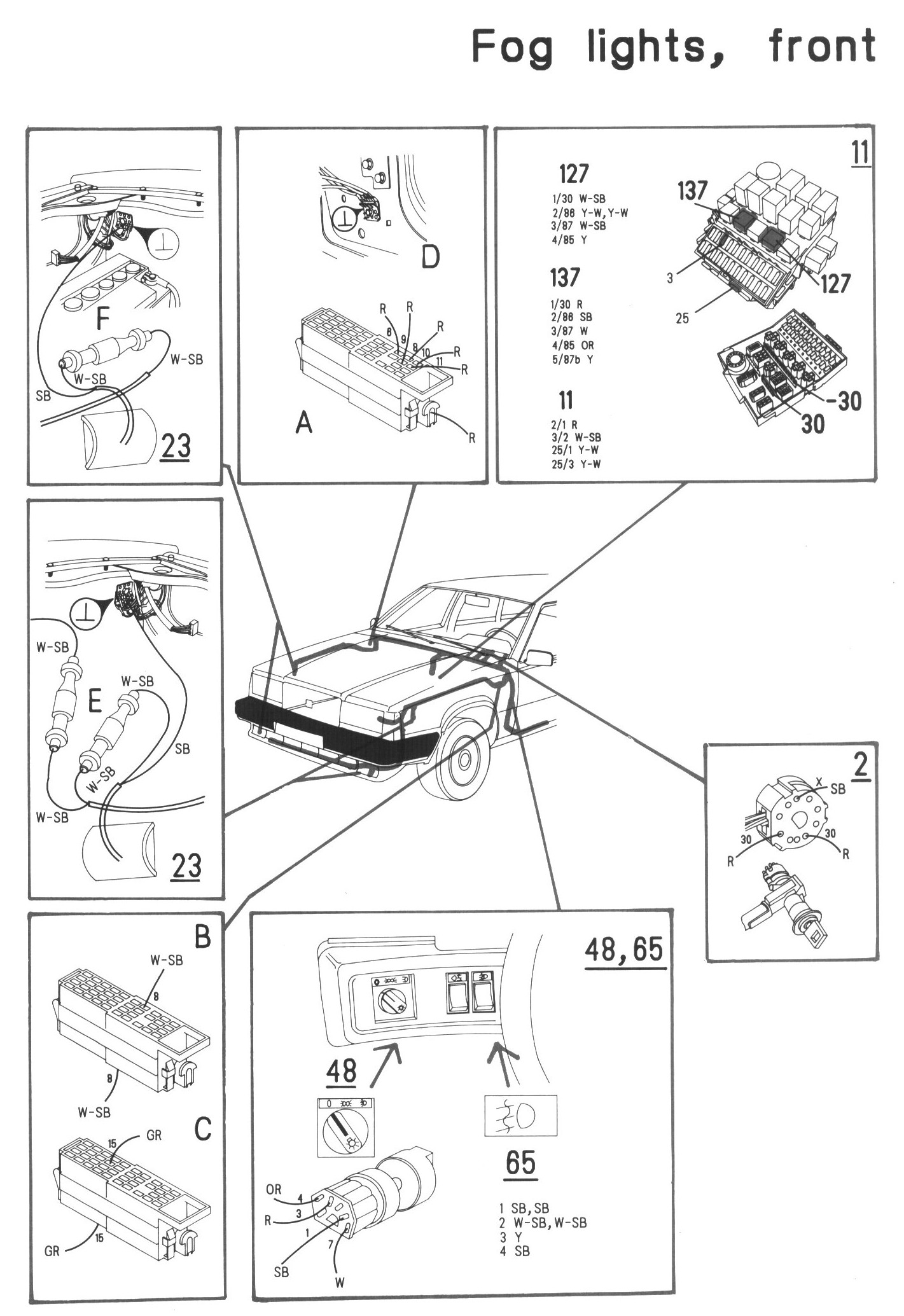

Component / Connector Views:

LEGEND
2 Ignition switch

11 Fusebox
14 Low beam bulb
20 Rear tog light bulb
23 Fog light bulb
30 30-terminal in central electrical unit
31 Ground rail in central electrical unit
48 Main light switch
49/56 High/low beam supply
49/58b Low beam supply
85 Fog light switch

127 Auxiliary light relay
137 Main light relay

A Connector, right A-post
B Connector, left A-post
D Ground point, right A-post
E Fog light connector
F Fog light connector
