Fuel Injection System

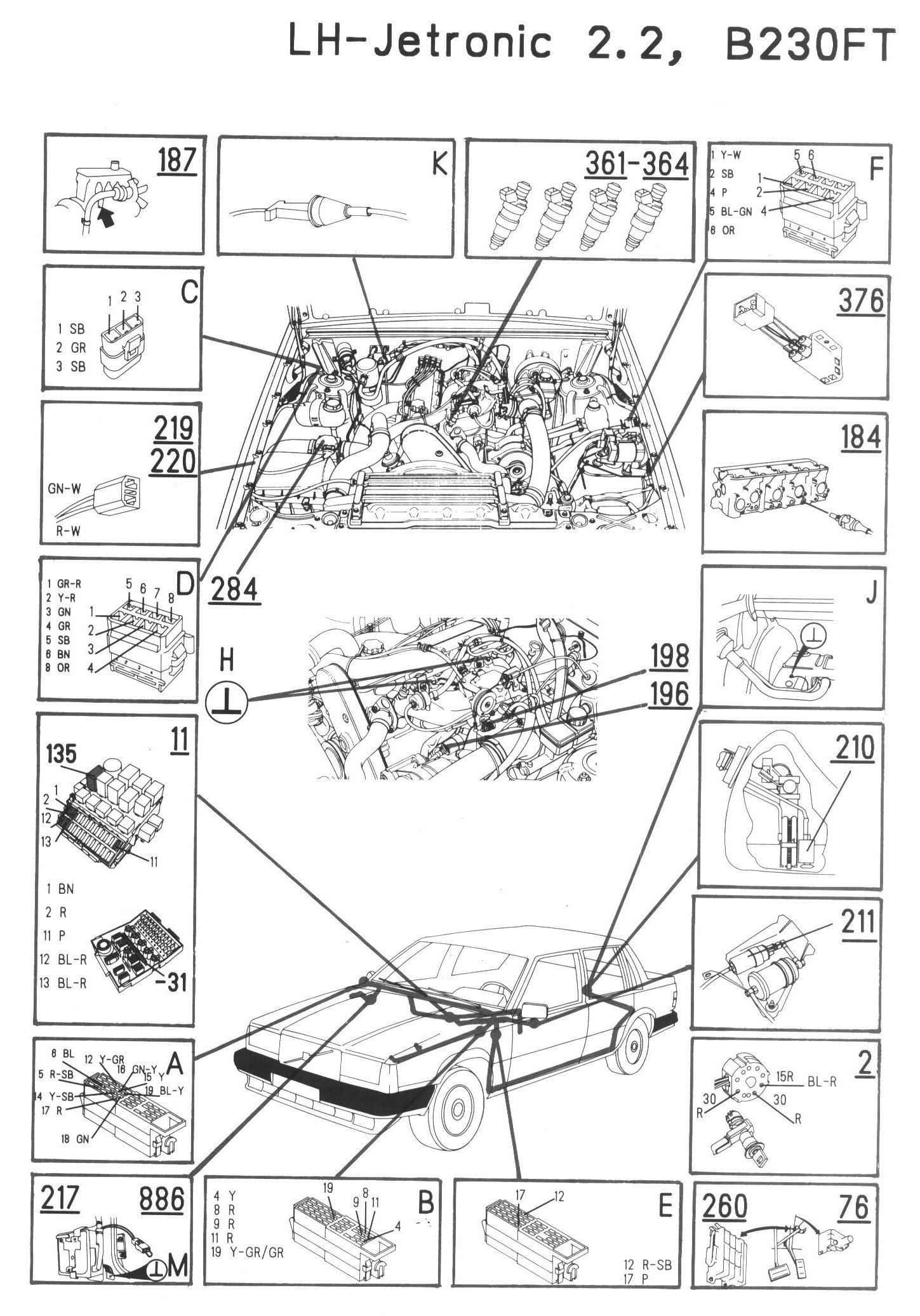

Component Locations:

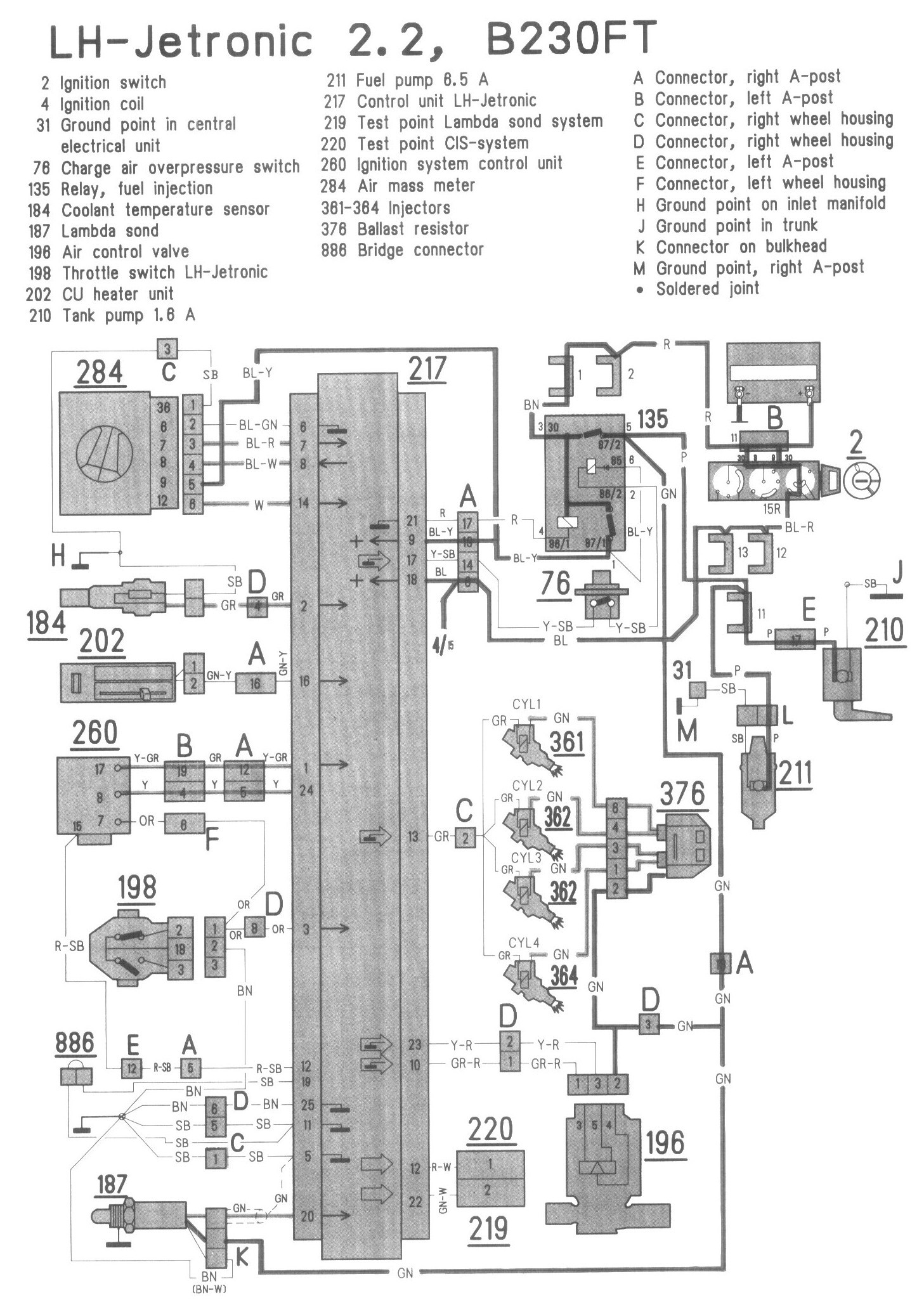

Wiring Diagram:

LEGEND
2 Ignition switch
4 Ignition coil

31 Ground point in central electrical unit
76 Charge air overpressure switch

135 Relay, fuel injection
184 Coolant temperature sensor
197 Lambda sond
198 Air control valve
199 Throttle switch LH-Jetronic
202 CU heater unit
210 Tank pump 1.6 A
211 Fuel pump 8.5 A
217 Control unit LH-Jetronic
219 Test point Lambda sond system
220 Test point CIS-system
260 Ignition system control unit
284 Air mass meter
381-384 Injectors
376 Ballast resistor
886 Bridge connector

A Connector, right A-post
B Connector, left A-post
C Connector, right wheel housing
D Connector, right wheel housing
E Connector, left A-post
F Connector, left wheel housing
H Ground point on inlet manifold
J Ground point in trunk
K Connector on bulkhead
M Ground point, right A-post
