Constant Idle Speed System, B28F

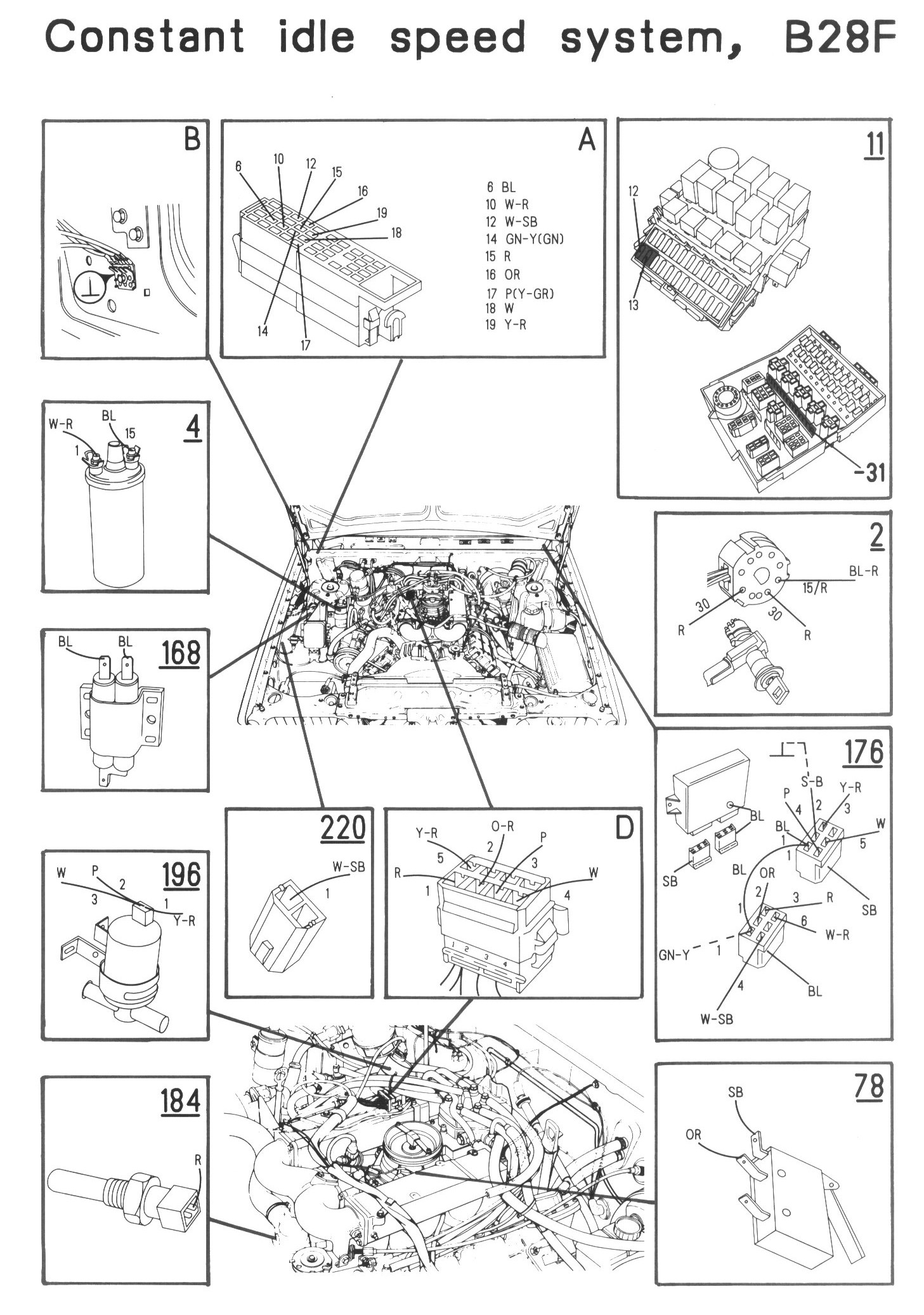

Component Locations:

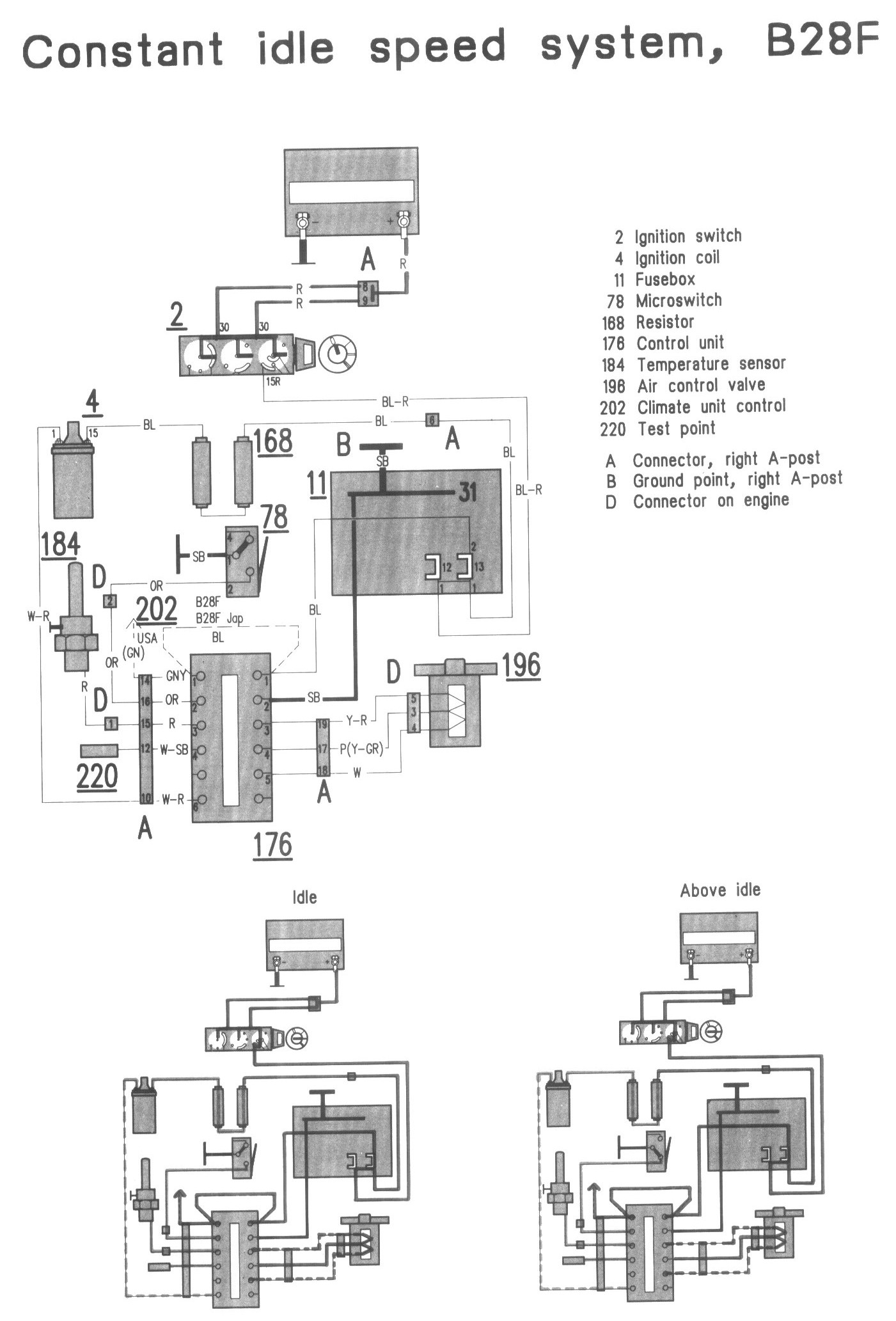

Wiring Diagram:

LEGEND
2 Ignition switch
4 Ignition coil

11 Fusebox
78 Microswitch

188 Resistor
178 Control unit
184 Temperature sensor
196 Air control valve
202 Climate unit control
220 Test point

A Connector, right A-post
B Ground point, right A-post
D Connector on engine
