Fuel Injection System

Component Locations:

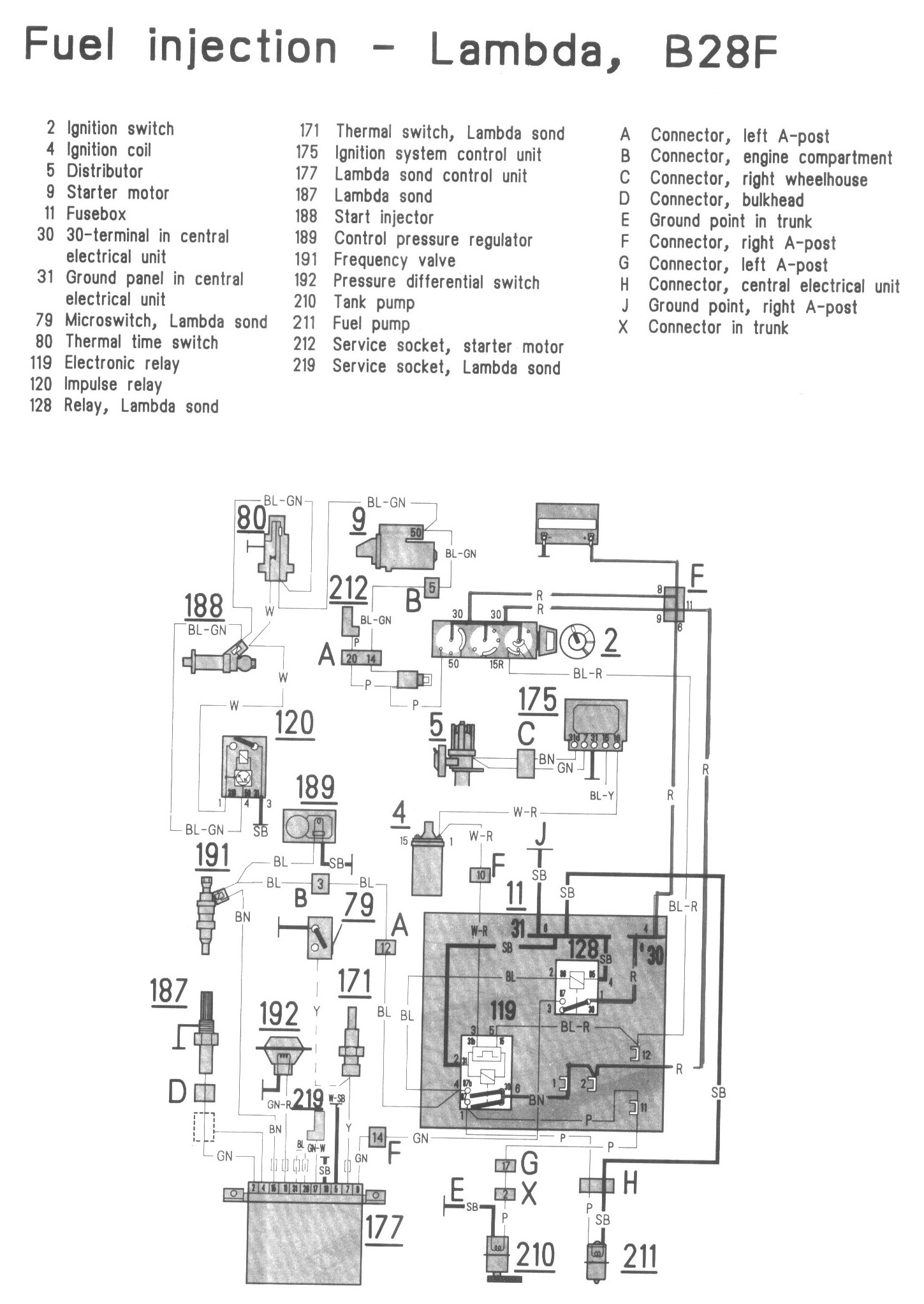

Wiring Diagram:

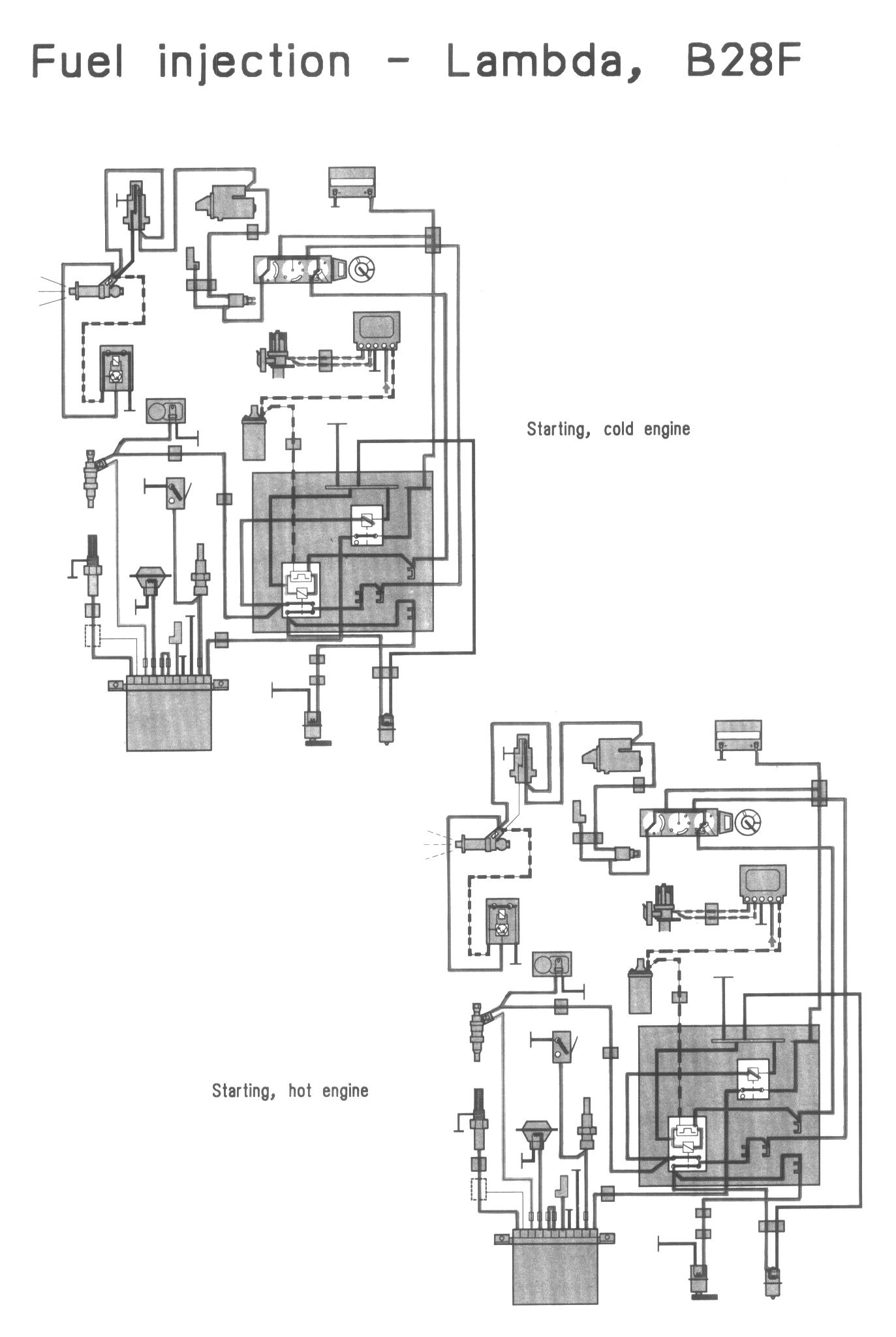

Starting, Engine Hot / Cold:

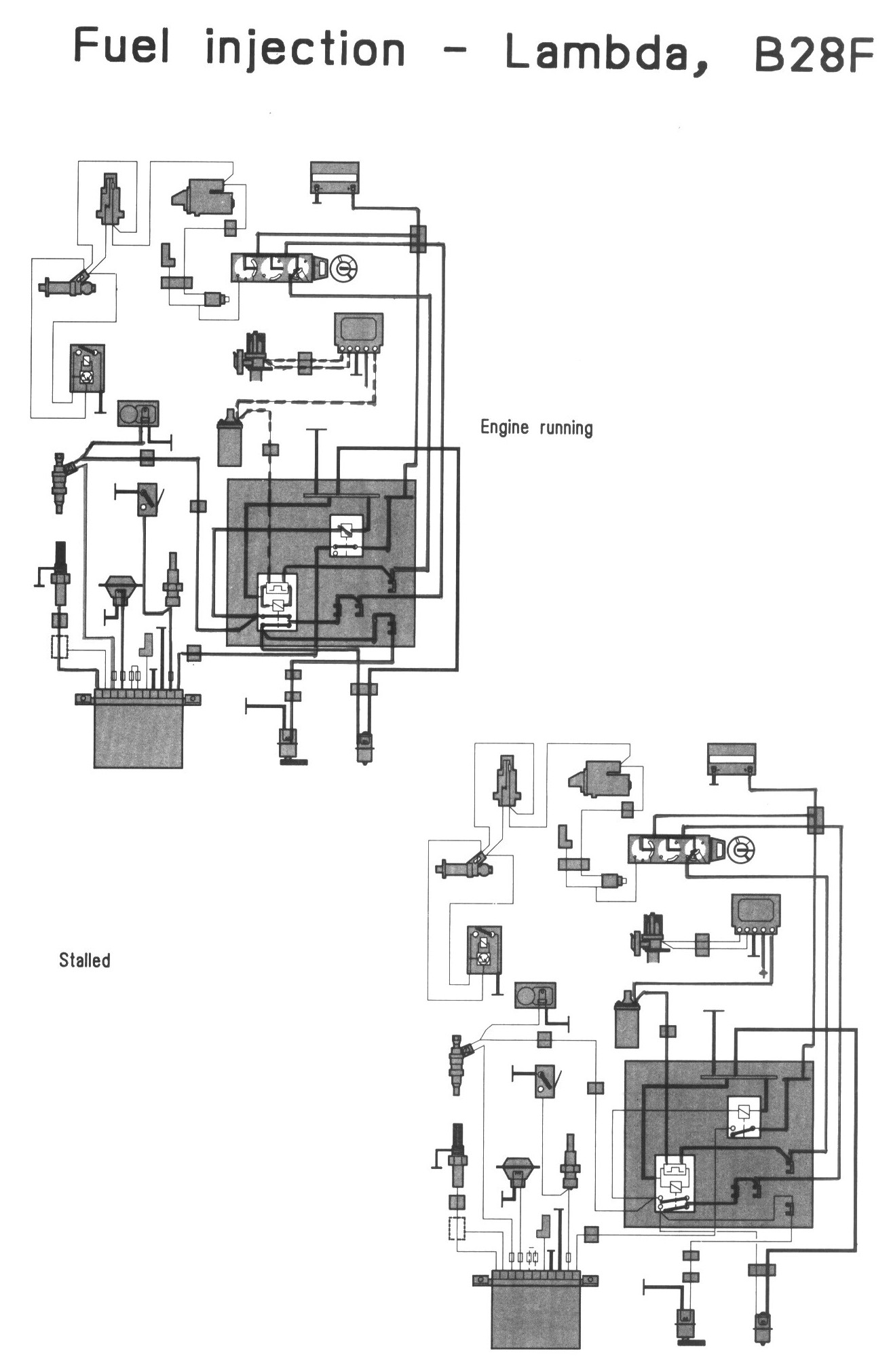

Engine, Running / Stalled:

LEGEND
2 Ignition switch
4 Ignition coil
5 Distributor
9 Starter motor

11 Fusebox
30 30-terminal in central electrical unit
31 Ground panel in central electrical unit
79 Microswitch, Lambda sond
80 Thermal time switch

119 Electronic relay
120 Impulse relay
128 Relay, Lambda sond
171 Thermal switch, Lambda sond
175 Ignition system control unit
177 Lambda sond control unit
197 Lambda sond
189 Start injector
199 Control pressure regulator
191 Frequency valve
192 Pressure differential switch
210 Tank pump
211 Fuel pump
212 Service socket, starter motor
219 Service socket, Lambda sond

A Connector, left A-post
B Connector, engine compartment
C Connector, right wheelhouse
D Connector, bulkhead
E Ground point in trunk
F Connector, right A-post
G Connector, left A-post
H Connector, central electrical unit
J Ground point, right A-post
X Connector in trunk
