Ignition System, B28F

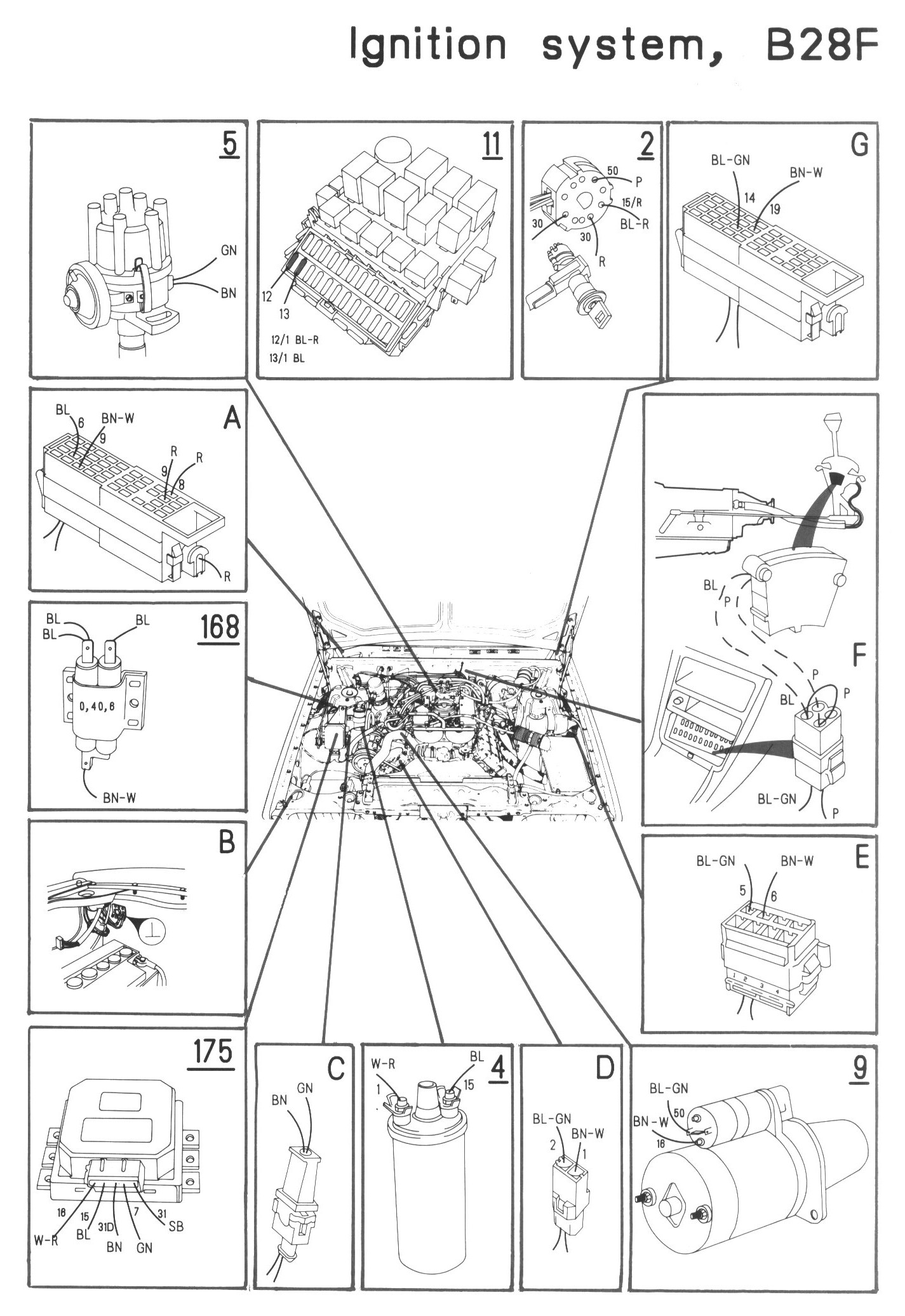

Component Locations:

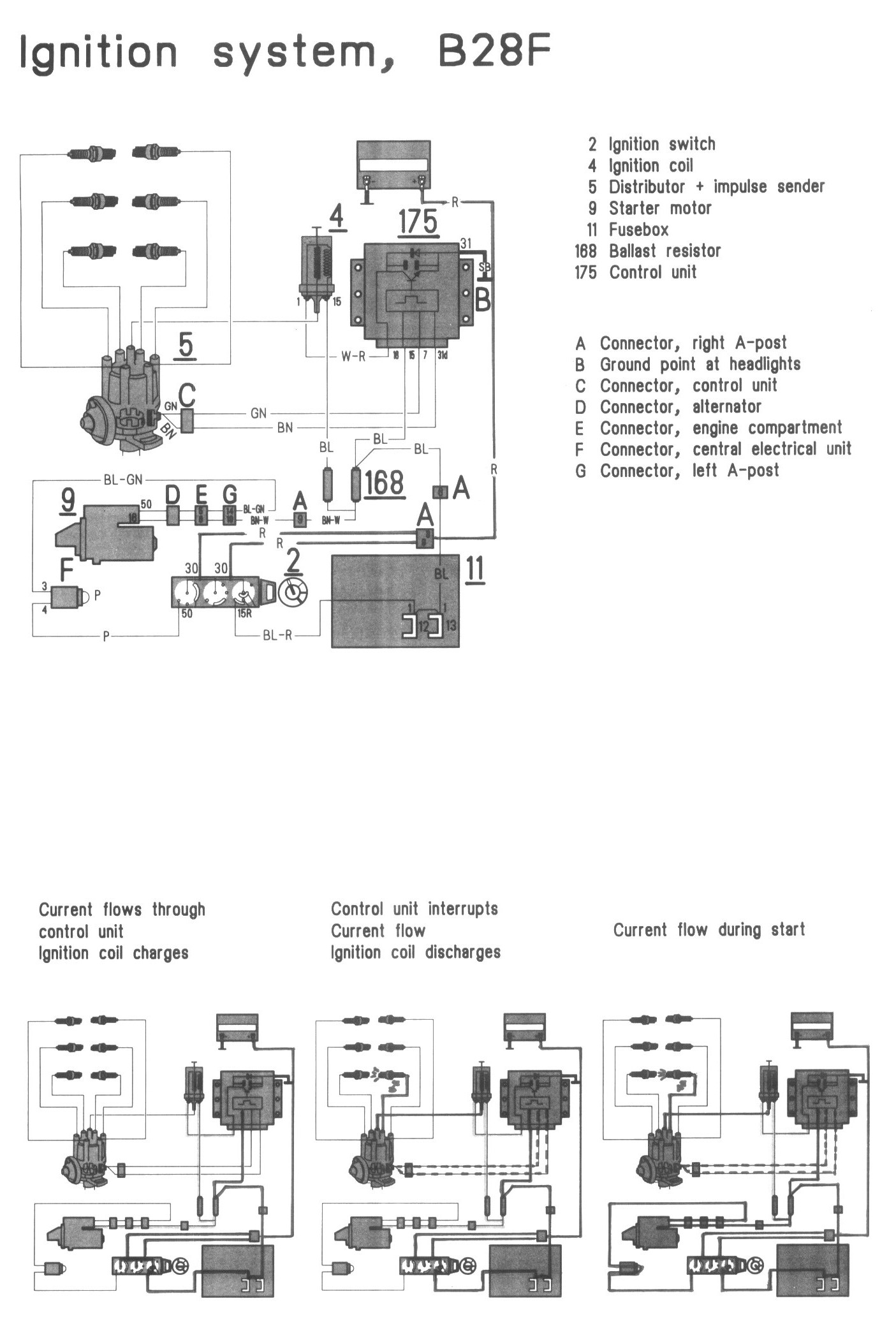

Wiring Diagram:

LEGEND
2 Ignition switch
4 Ignition coil
5 Distributor + impulse sender
9 Starter motor

11 Fusebox

189 Ballast resistor
175 Control unit

A Connector, right A-post
B Ground point at headlights
C Connector, control unit
D Connector, alternator
E Connector, engine compartment
F Connector, central electrical unit
G Connector, left A-post
