Fog/Driving Lamp

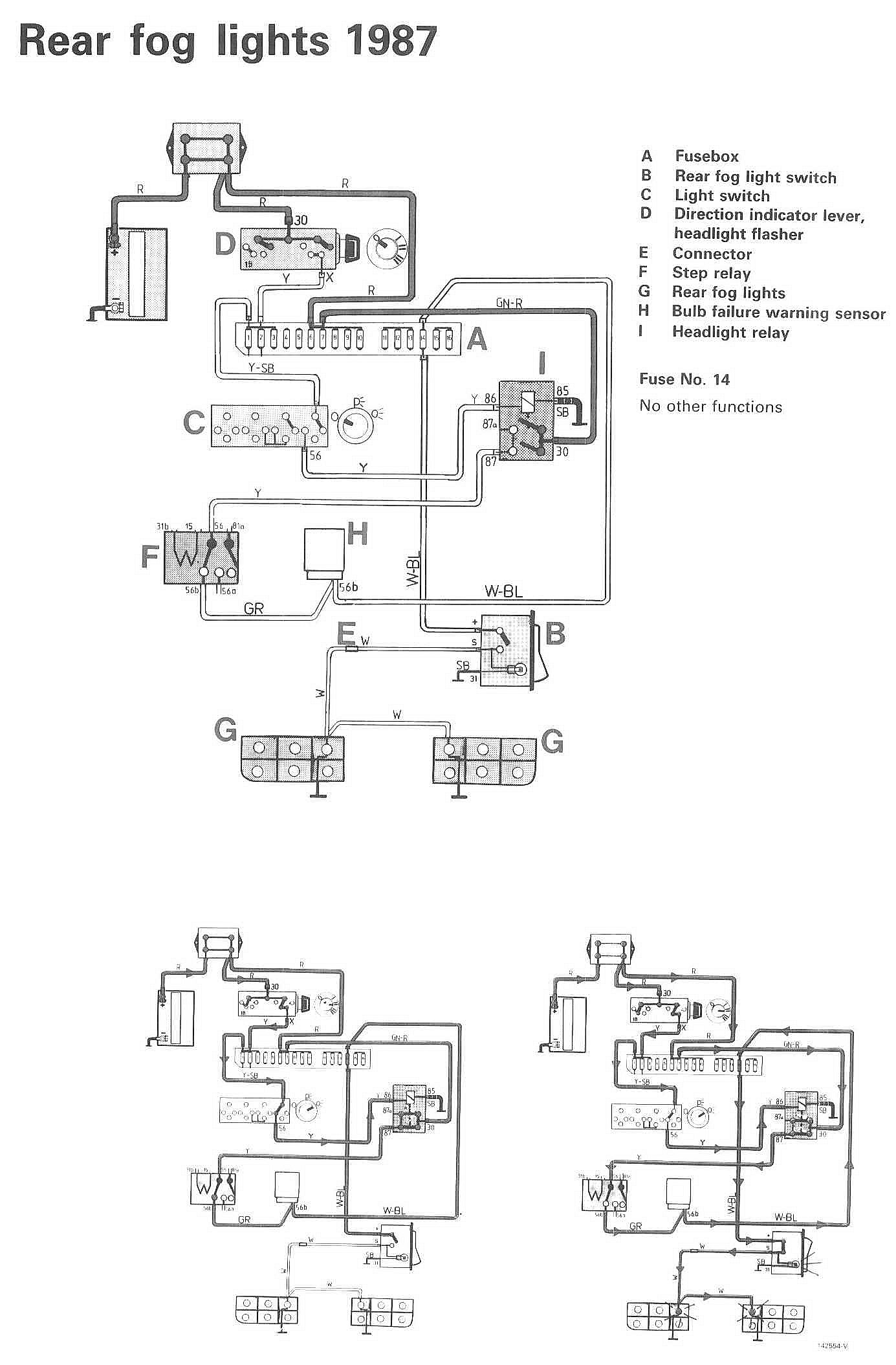

Wiring Diagrams:

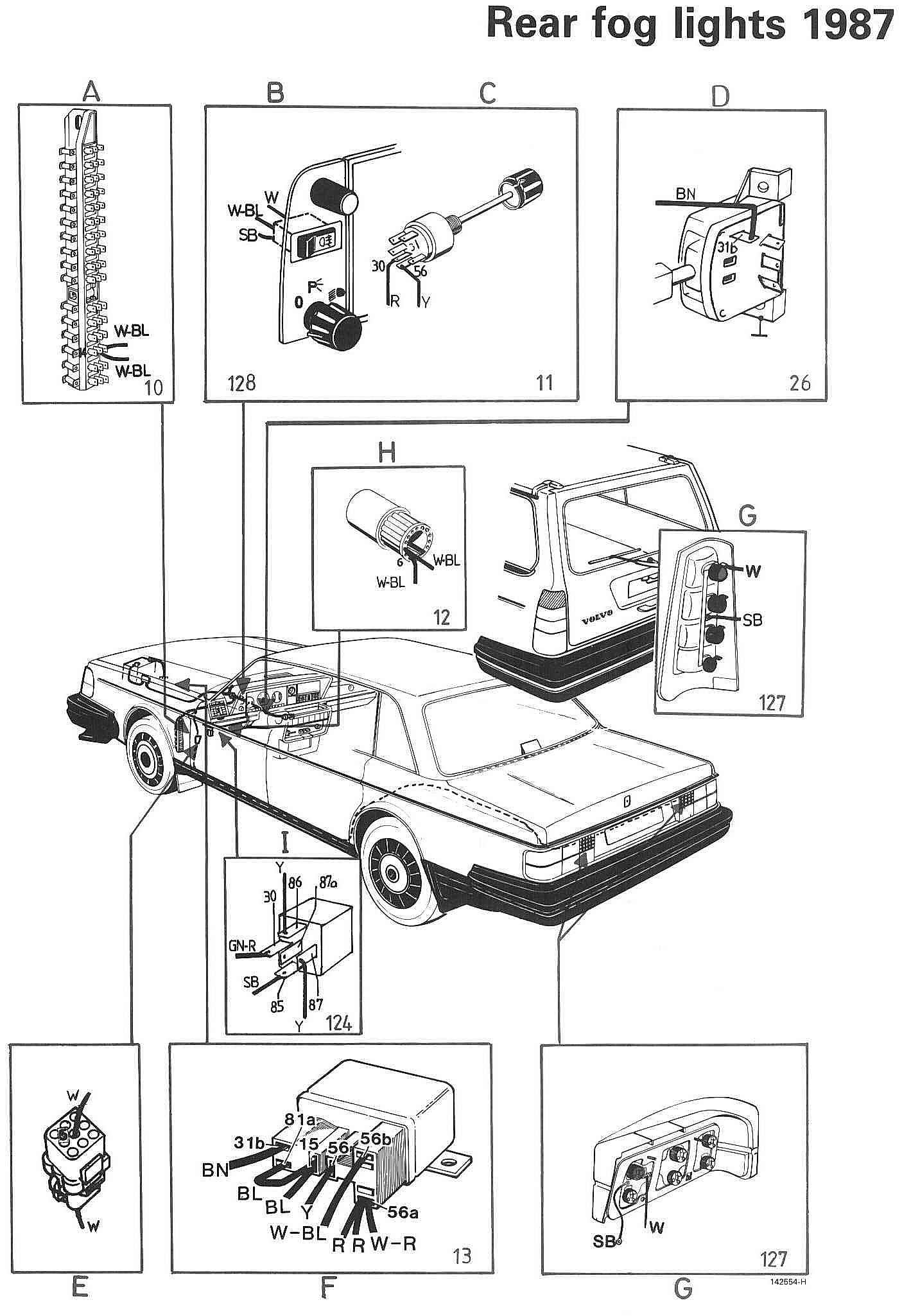

Locations/Connector Views:

LEGEND
A Fusebox
B Rear fog light switch
C Light switch
D Direction indicator lever, headlight flasher
E Connector
F Step relay
G Rear fog lights
H Bulb failure warning sensor
I Headlight relay
