Engine Compartment, Trunk Light

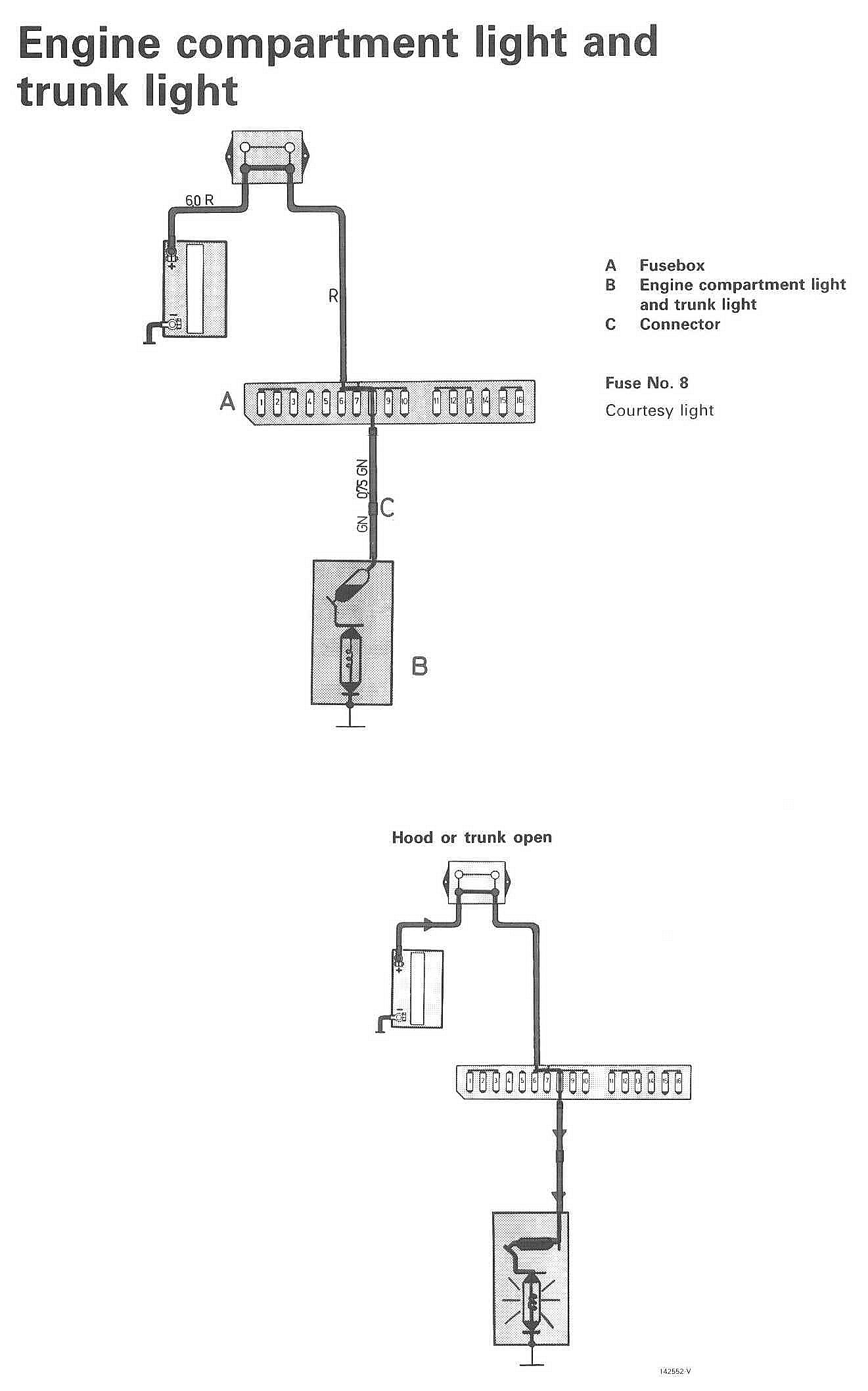

Wiring Diagrams:

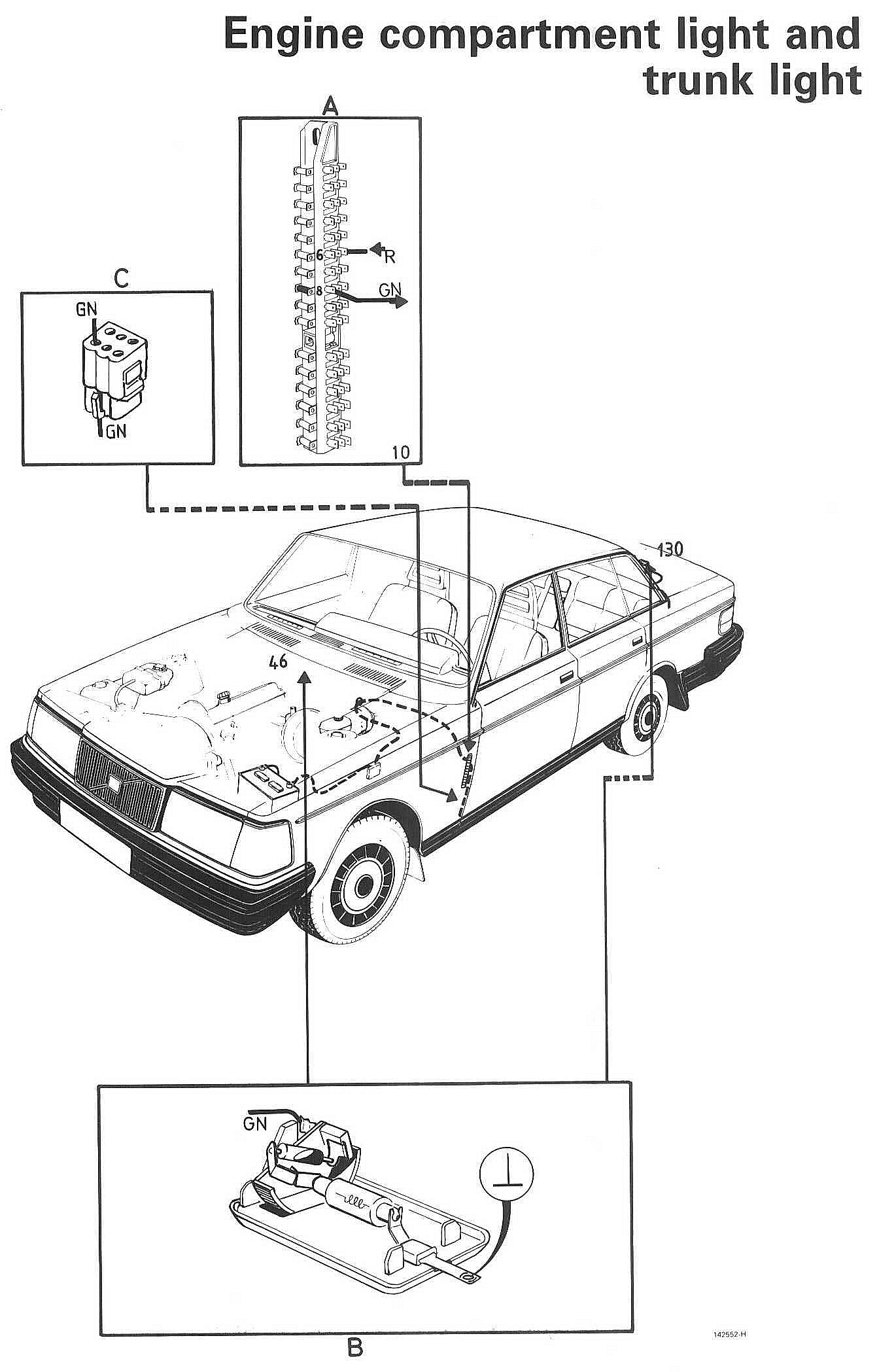

Locations/Connector Views:




LEGEND
A Fusebox
B Engine compartment light and trunk light
C Connector
