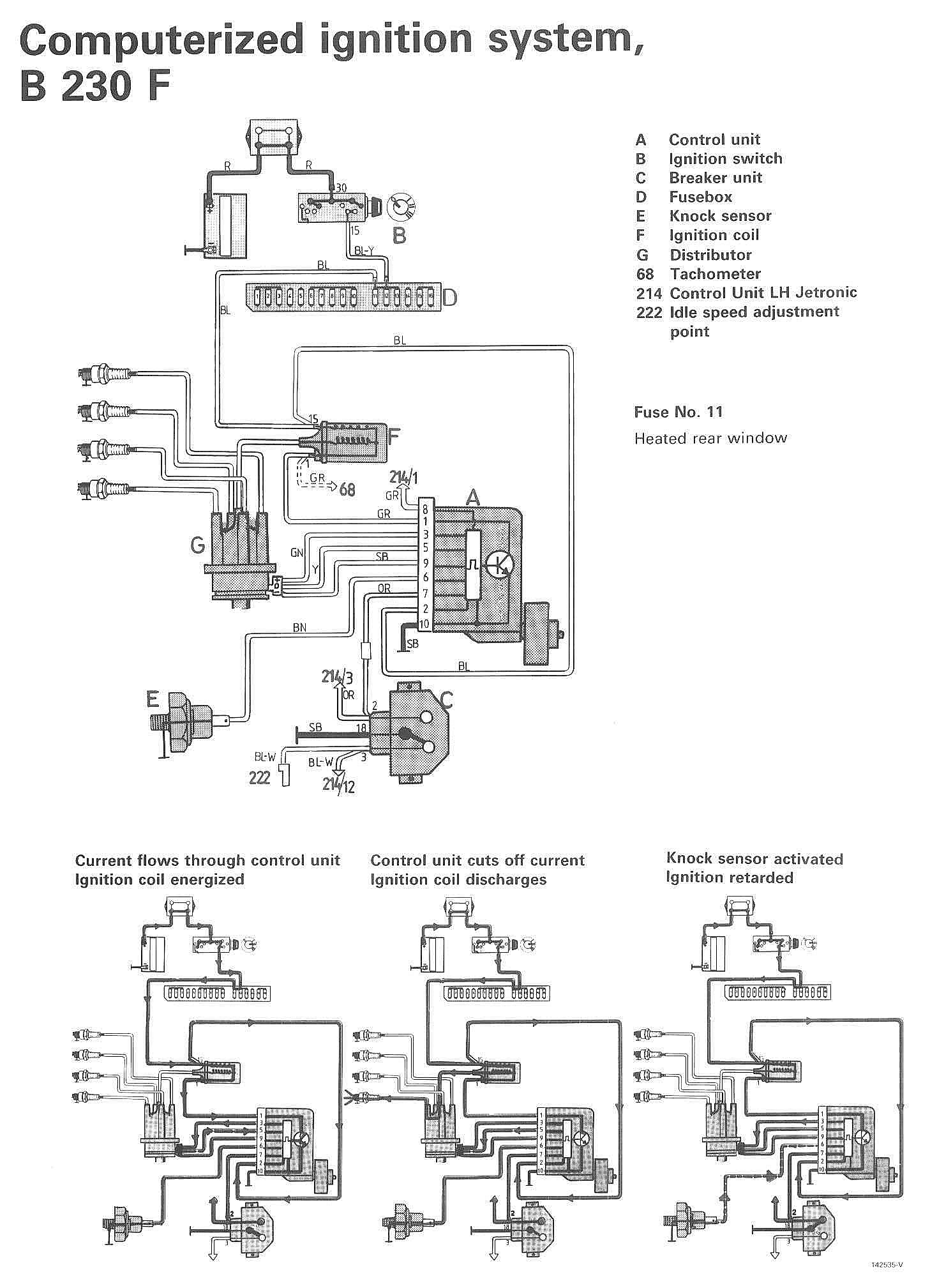

Computerized Ignition System, B 230 F

Locations/Connector Views:

Wiring Diagrams:

LEGEND
A Control unit
B Ignition switch
C Breaker unit
D Fusebox
E Knock sensor
F Ignition coil
G Distributor
68 Tachometer
214 Control Unit LH Jetronic
222 Idle speed adjustment point
