Windshield Wash/Wipe

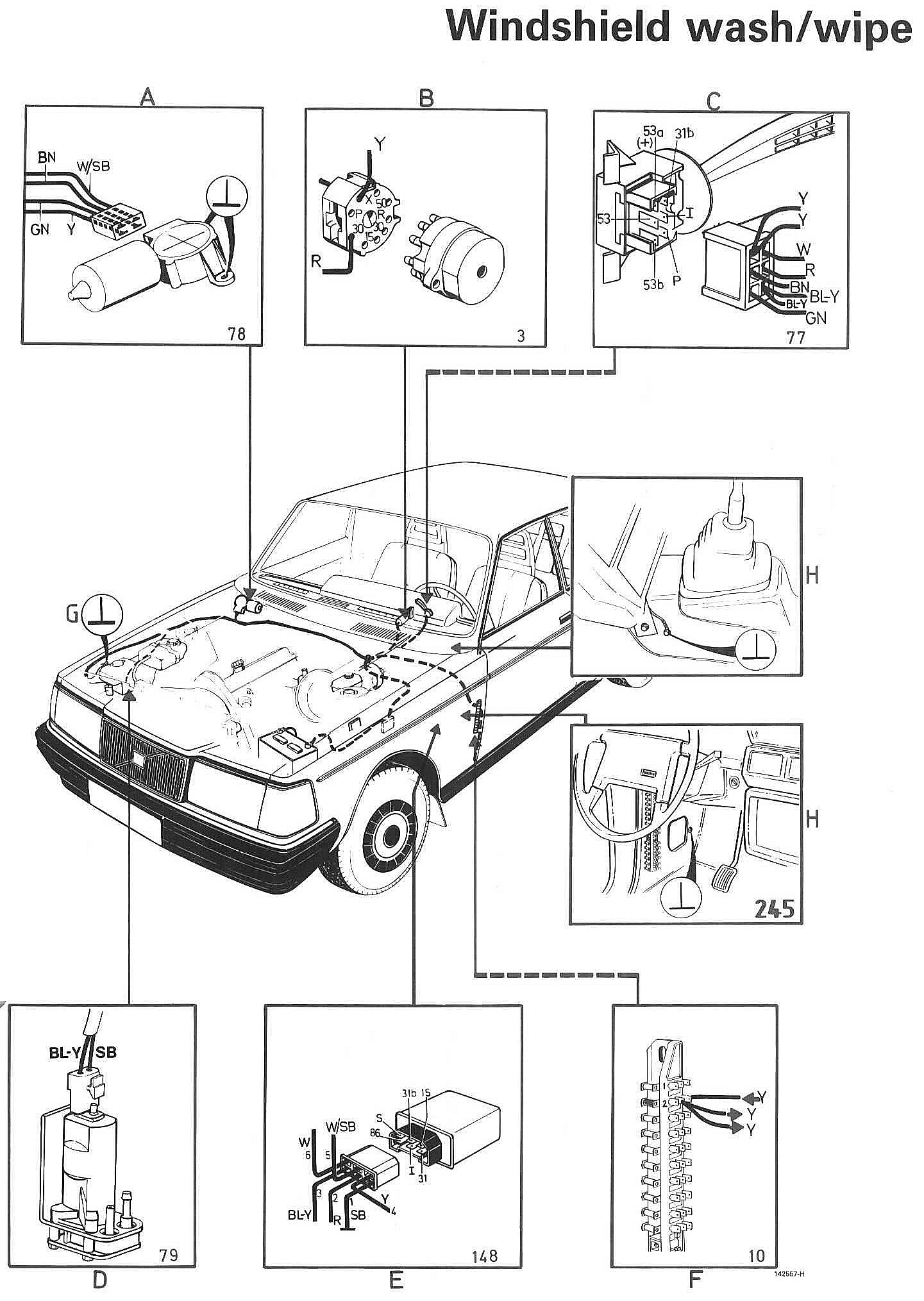

Locations/Connector Views:

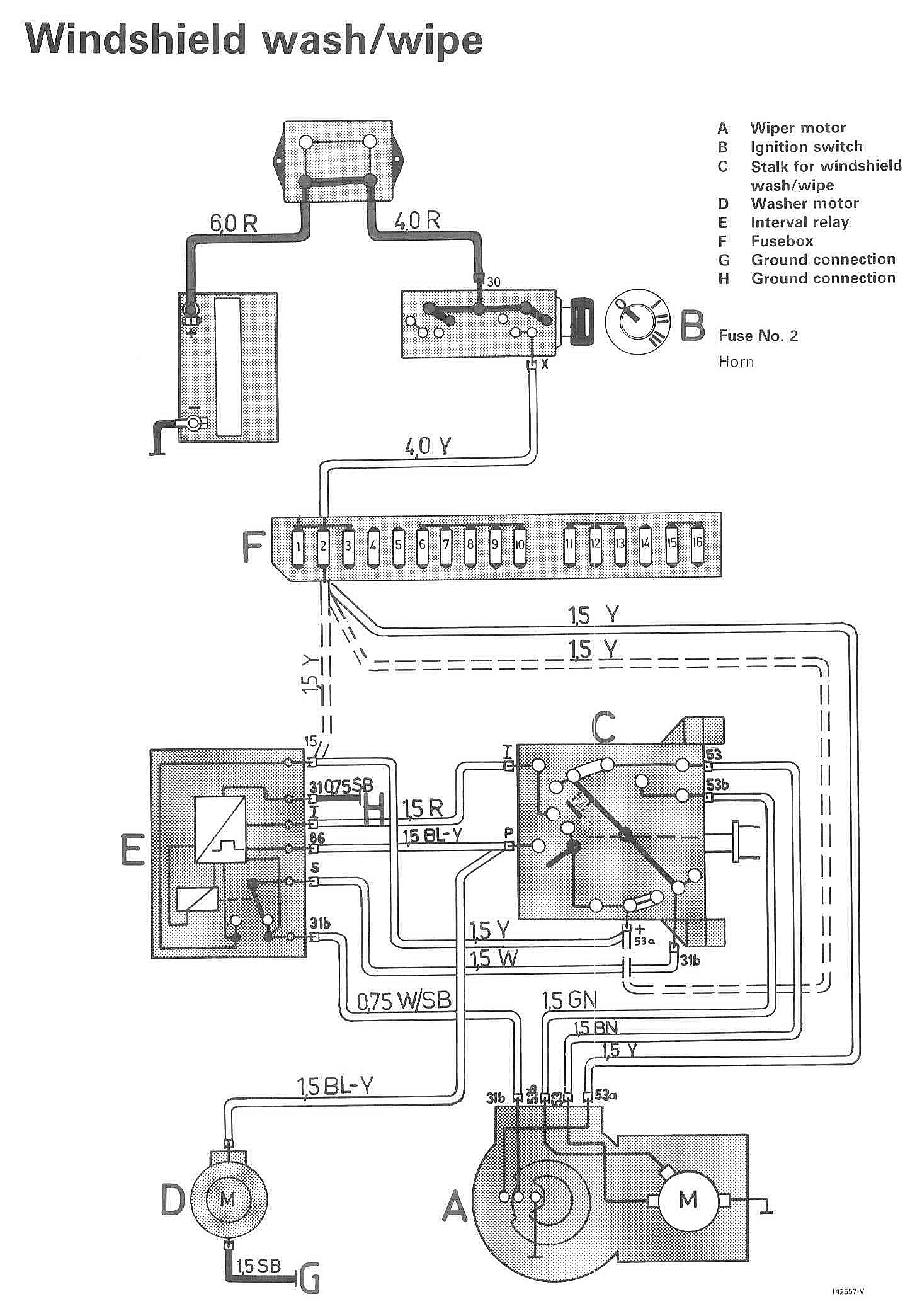

Wiring Diagrams:

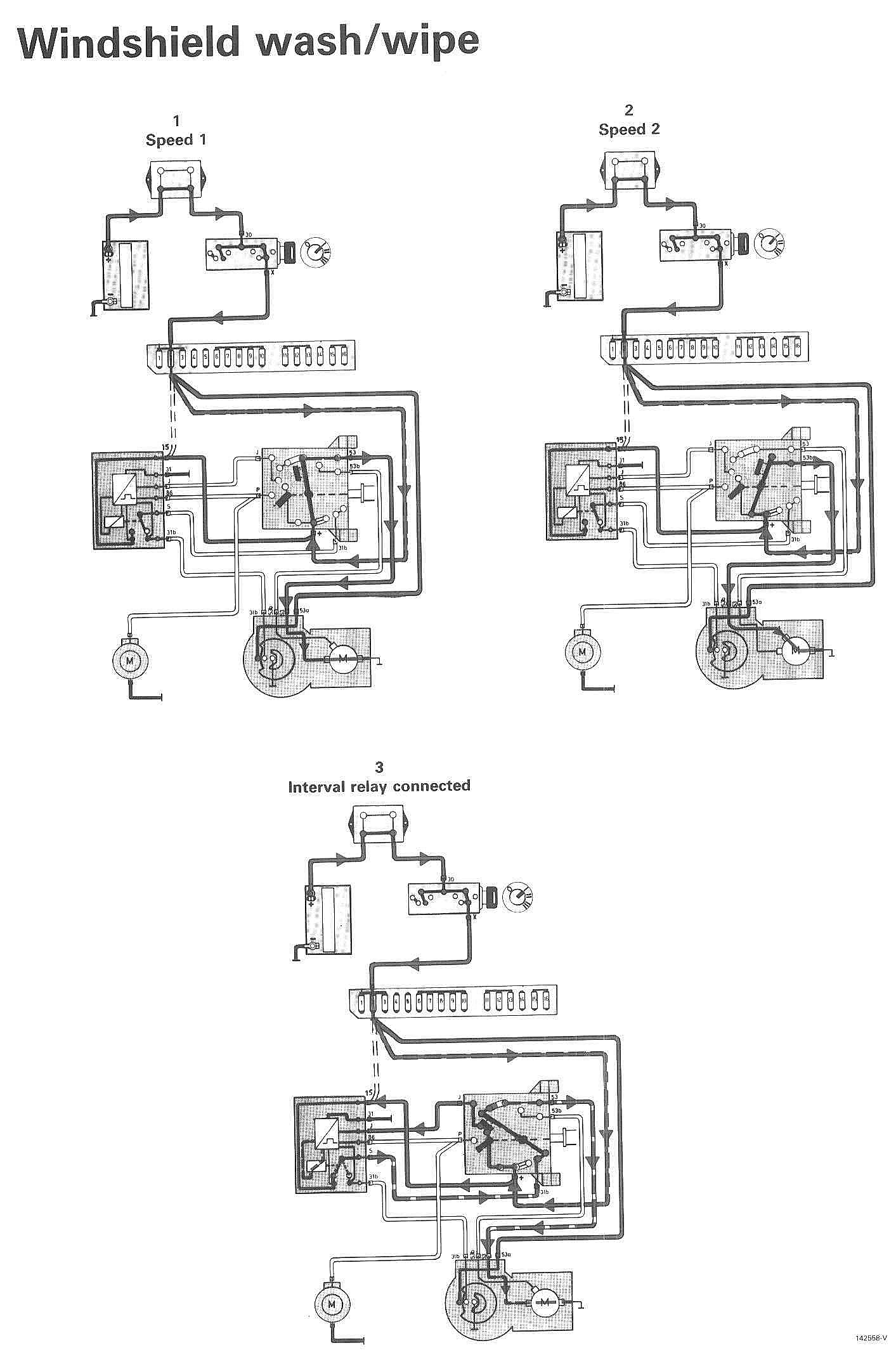

Conditions 1:

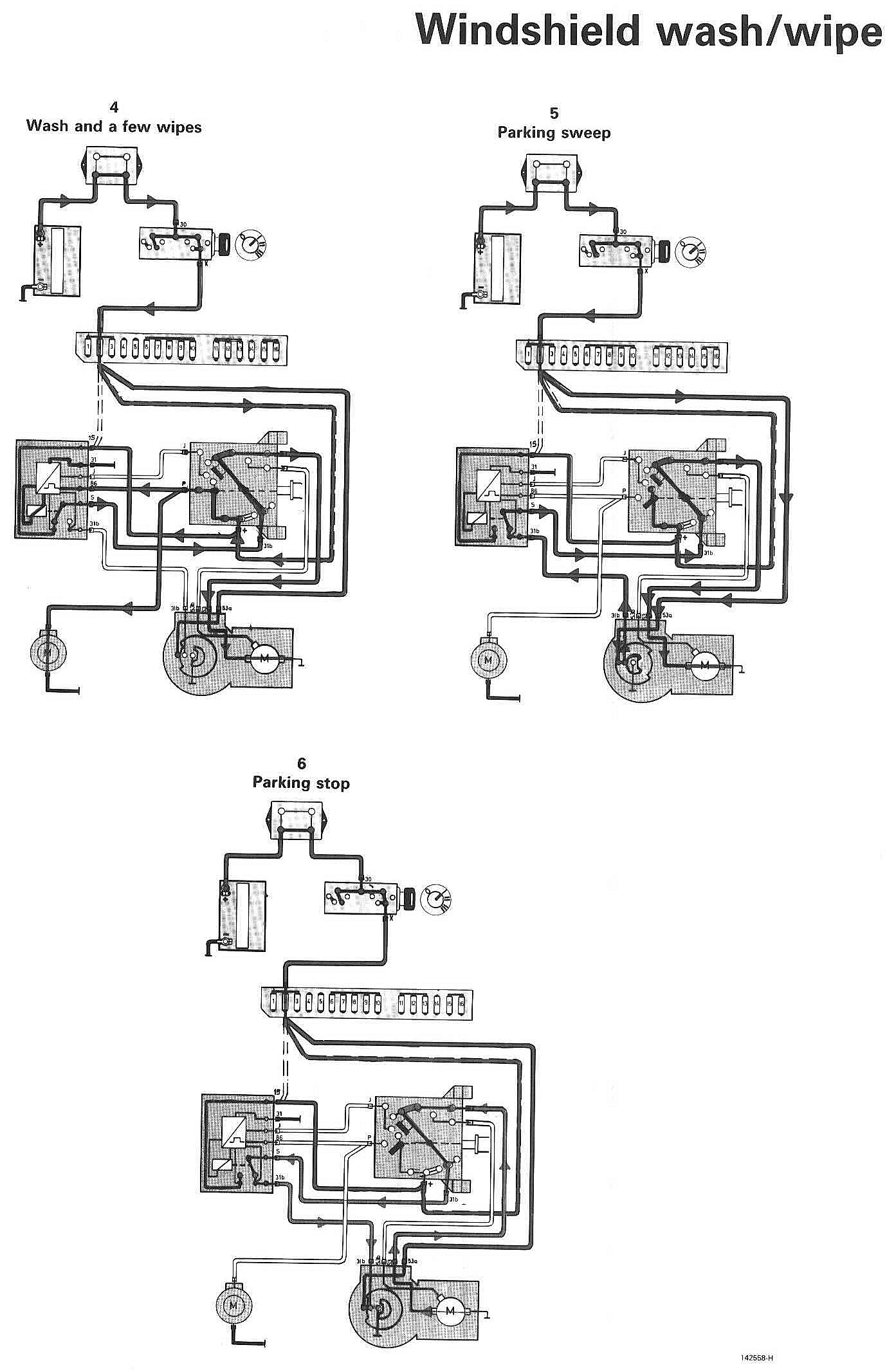

Conditions 2:

LEGEND
A Wiper motor
B Ignition switch
C Stalk for windshield wash/wipe
D Washer motor
E Interval relay
F Fusebox
G Ground connection
H Ground connection
