Fuel Injection System

Component Locations:

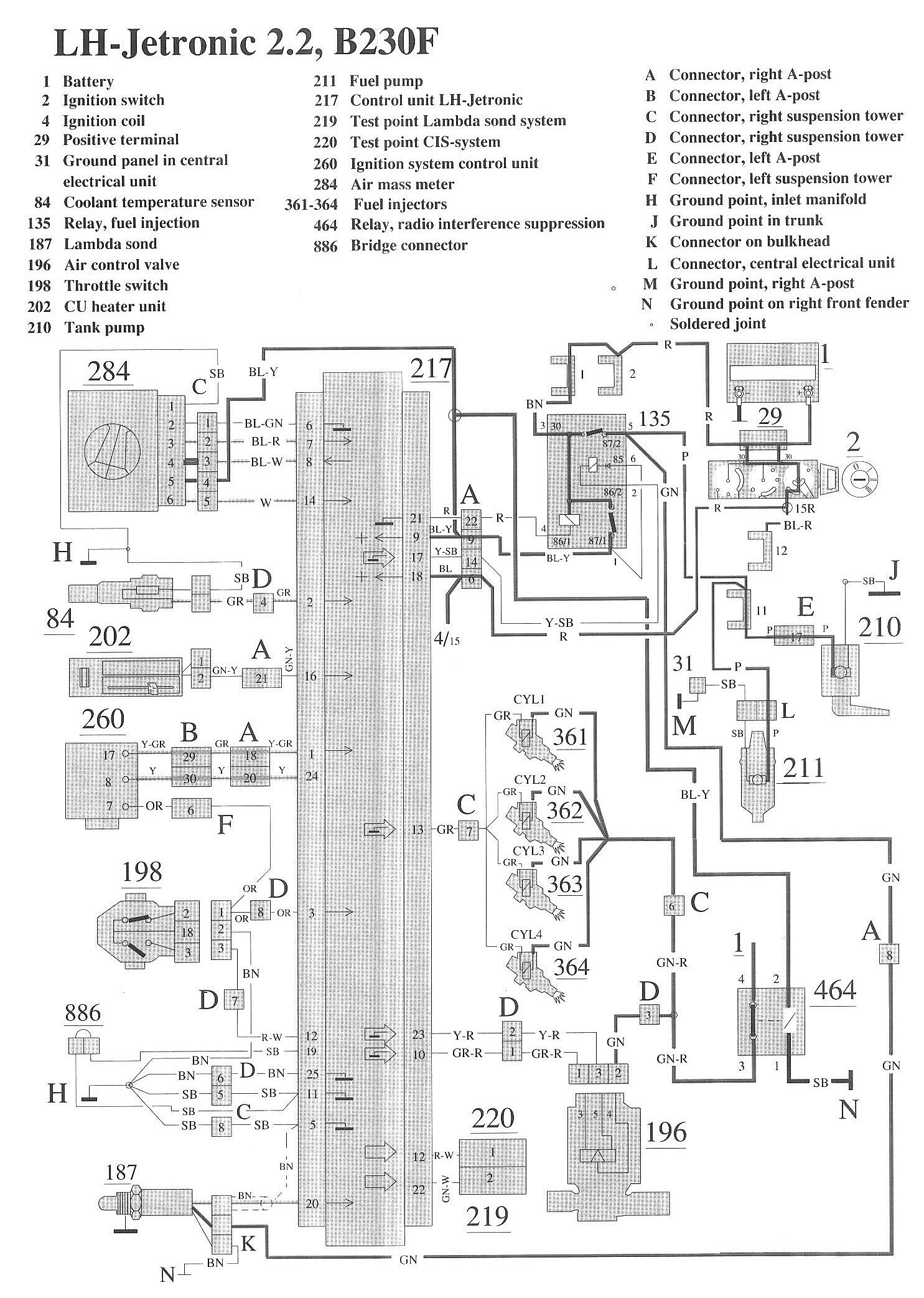

Wiring Diagram:




LEGEND
1 Battery
2 Ignition switch
4 Ignition coil

29 Positive terminal
31 Ground panel in central electrical unit
84 Coolant temperature sensor

135 Relay, fuel injection
187 Lambda sond
196 Air control valve
198 Throttle switch
202 CU heater unit
210 Tank pump
211 Fuel pump
217 Control unit LH-Jetronic
219 Test point Lambda sond system
220 Test point CIS-system
260 Ignition system control unit
284 Air mass meter
361-364 Fuel injectors
464 Relay, radio interference suppression
886 Bridge connector

A Connector, right A-post
B Connector, left A-post
C Connector, right suspension tower
D Connector, right suspension tower
E Connector, left A-post
F Connector, left suspension tower
H Ground point, inlet manifold
J Ground point in trunk
K Connector on bulkhead
L Connector, central electrical unit
M Ground point, right A-post
N Ground point on right front fender
