Throttle Body: Adjustments

Throttle adjustment
The throttle is adjusted at the factory and normally requires no further adjustment unless mechanical problems are suspected.

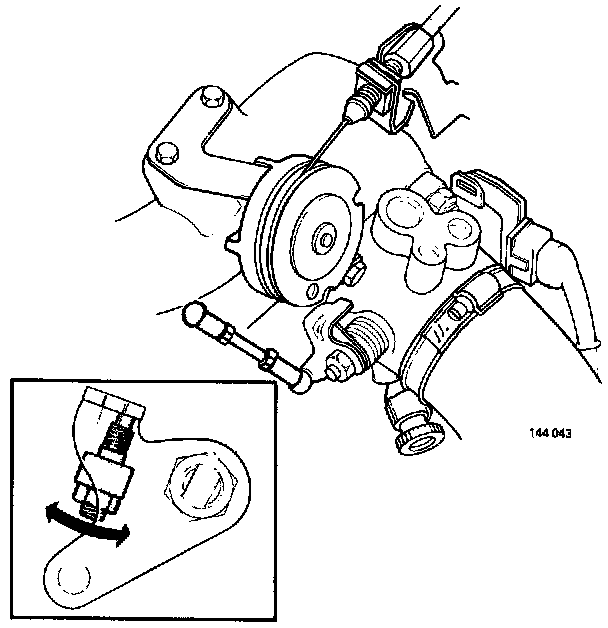

- Remove link rod from throttle pulley.
- Loosen throttle switch attaching screws (3 mm Allen)
- Loosen lock nut on adjustment screw.
- Loosen adjustment screw until throttle is completely closed.
- Tighten adjustment screw until it contacts link rod and then tighten an additional 1/2 turn. Tighten lock nut and make sure that adjustment screw does not turn during this procedure.
- Adjust throttle switch.
