Electrical Diagrams

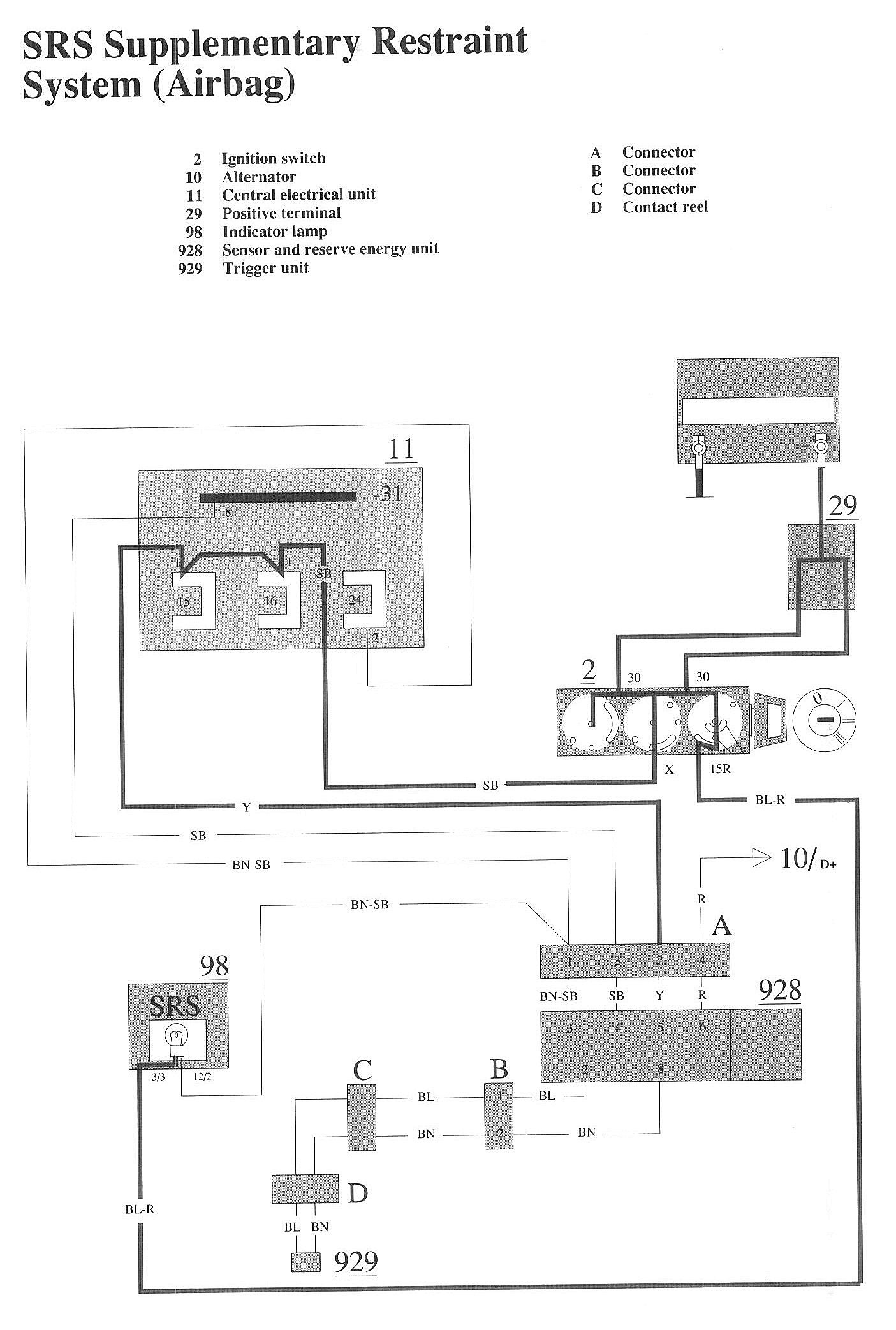

Wiring Diagrams:

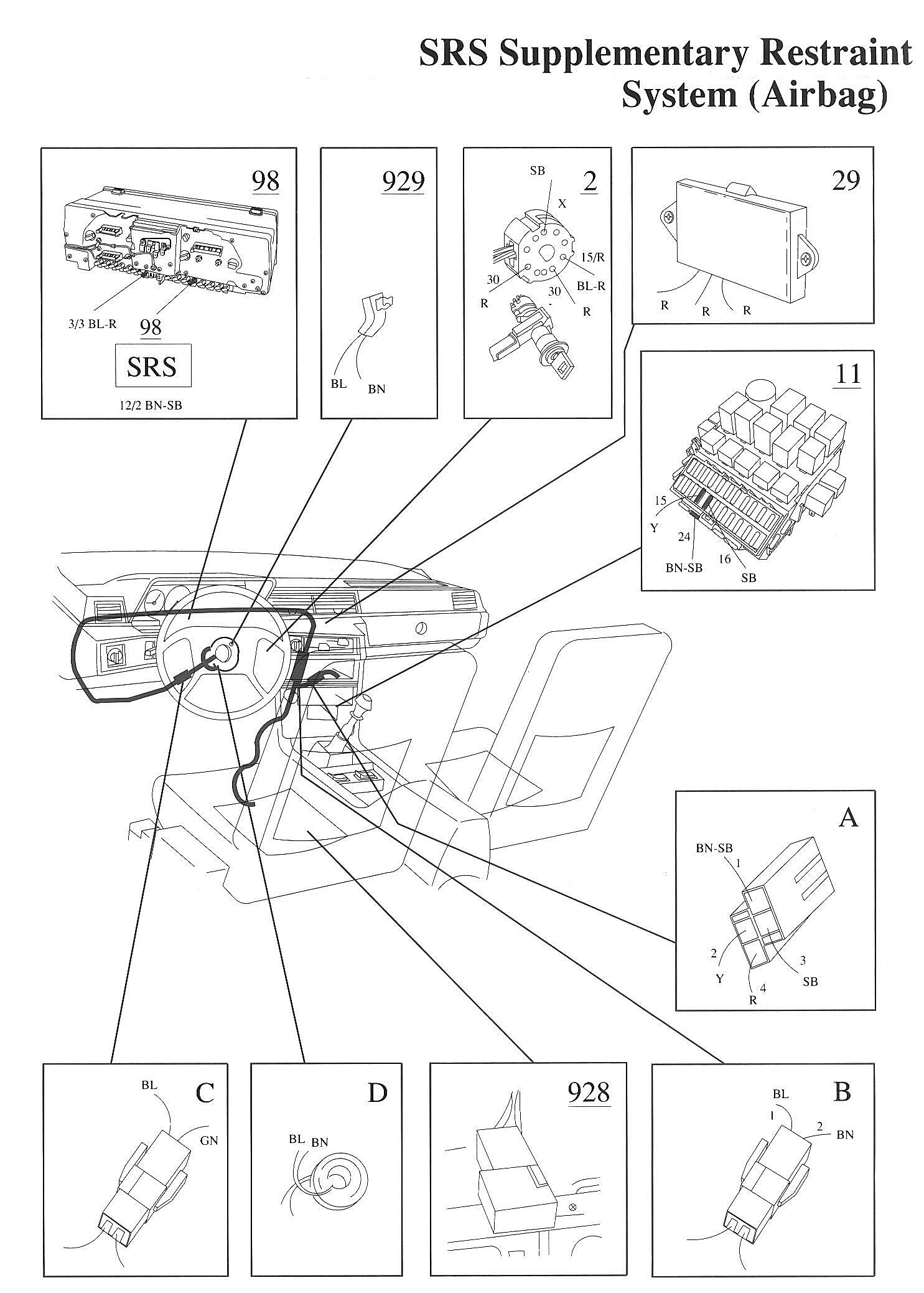

Component / Connector Views:

LEGEND
2 Ignition switch

10 Alternator
11 Central electrical unit
29 Positive terminal
98 Indicator lamp

928 Sensor and reserve energy unit
929 Trigger unit

A Connector
B Connector
C Connector
D Contact reel
