Tailgate Window Wash/Wipe (Interval Relay (Wagon))

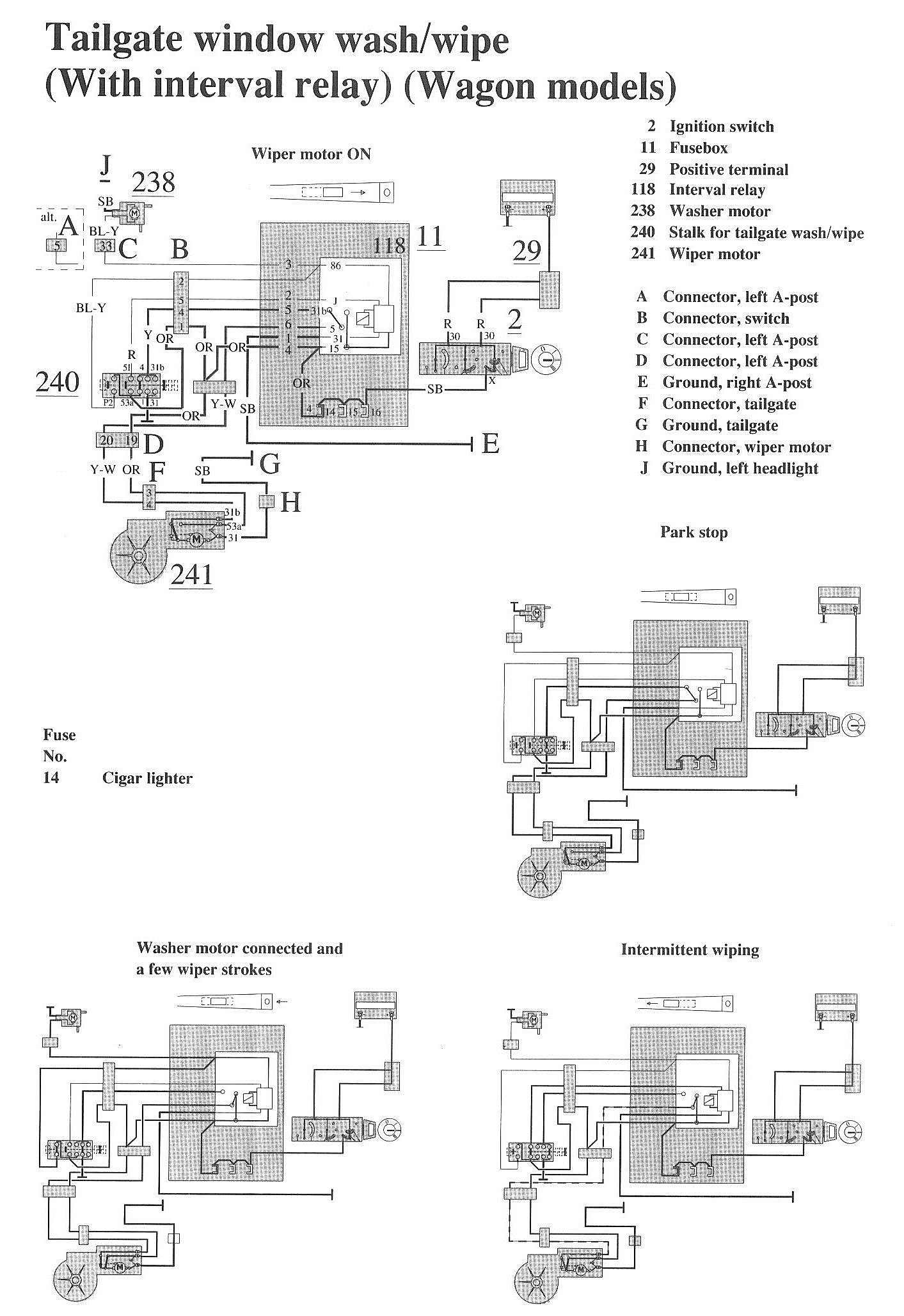

Wiring Diagrams:

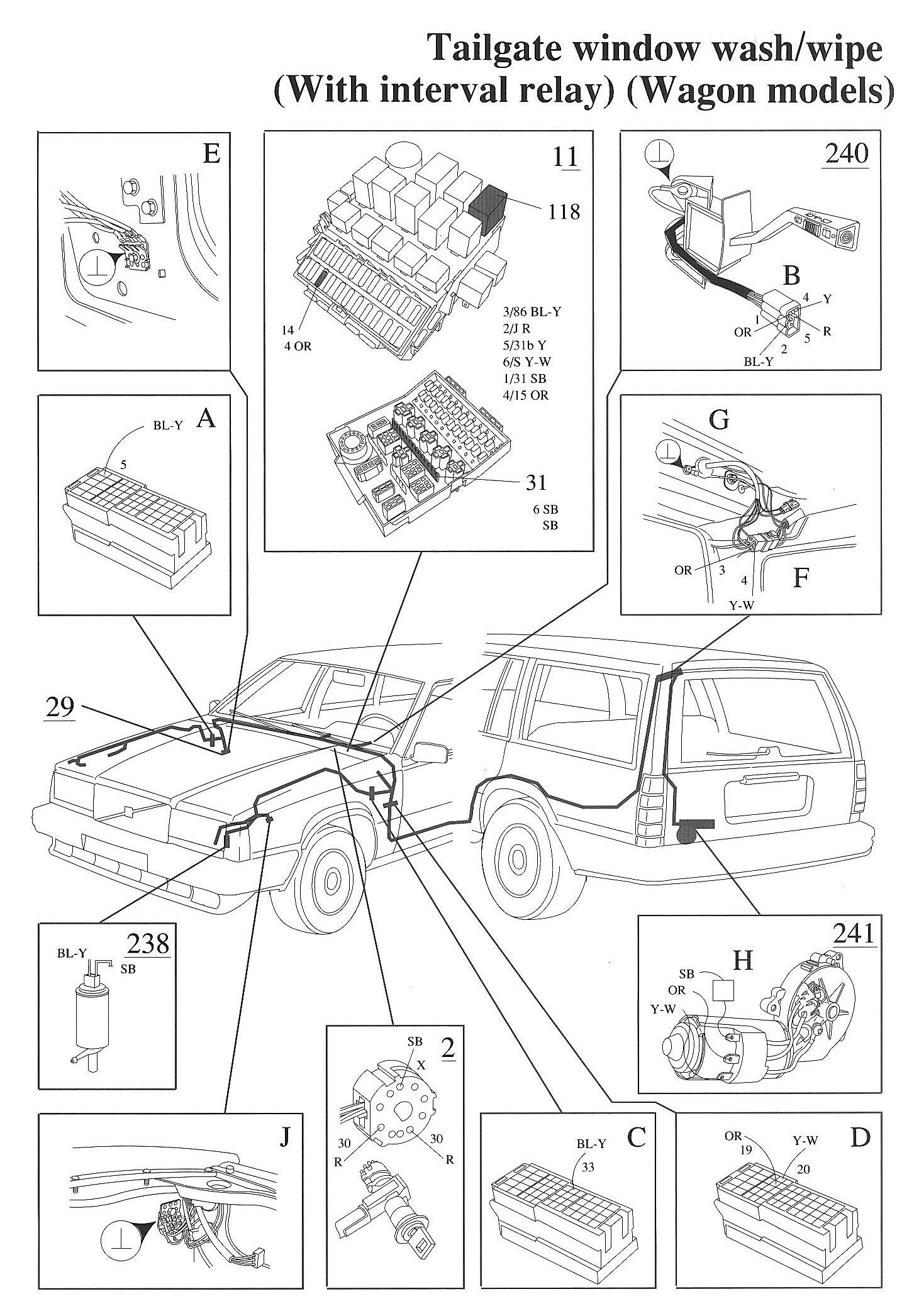

Component / Connector Views:

LEGEND
2 Ignition switch

11 Fusebox
29 Positive terminal

118 Interval relay
238 Washer motor
240 Stalk for tailgate wash/wipe
241 Wiper motor

A Connector, left A-post
B Connector, switch
C Connector, left A-post
D Connector, left A-post
E Ground, right A-post
F Connector, tailgate
G Ground, tailgate
H Connector, wiper motor
J Ground, left headlight
