Sunroof / Moonroof: Locations

Component / Connector Views:

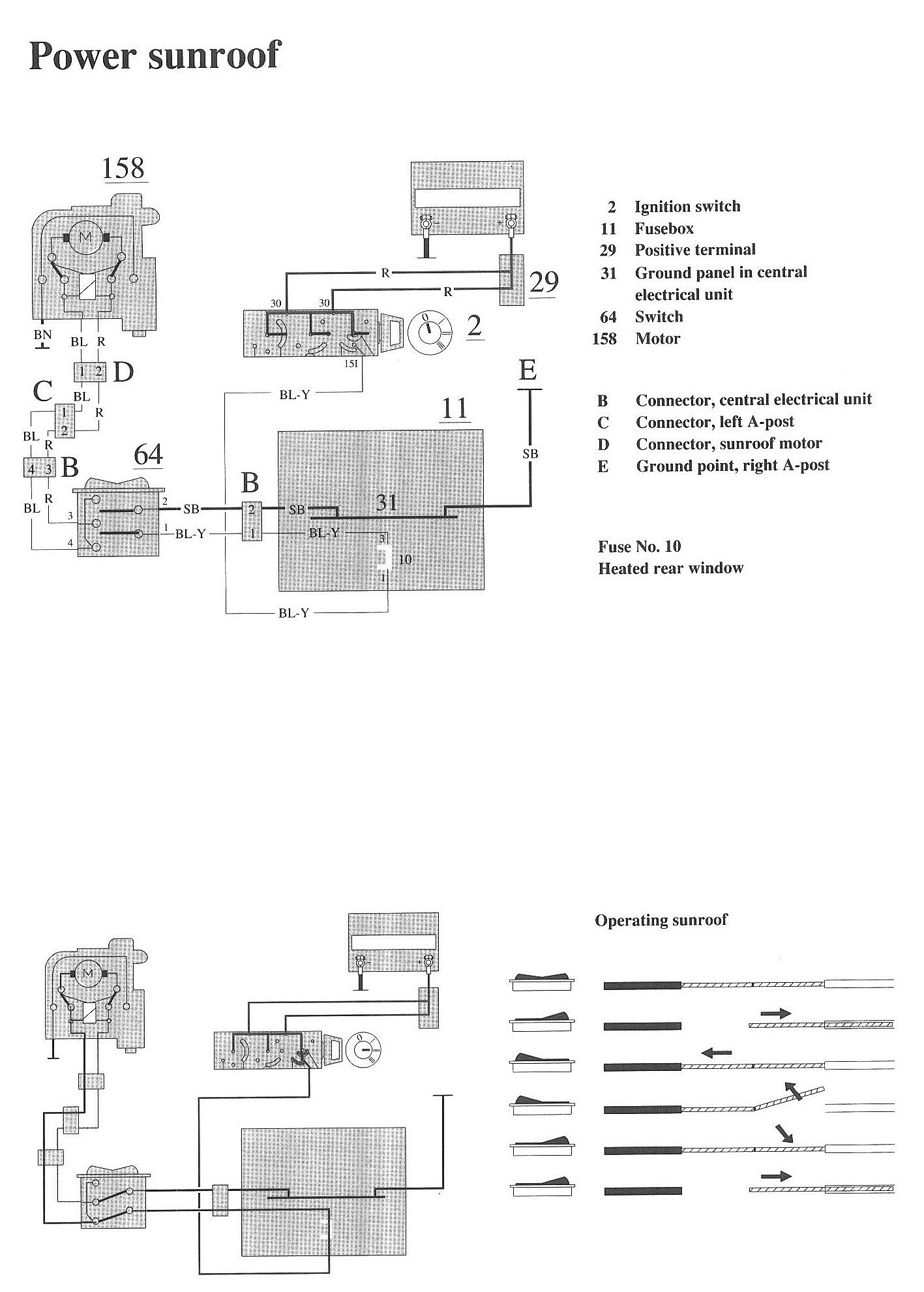

Wiring Diagrams:

LEGEND
2 Ignition switch

11 Fusebox
29 Positive terminal
31 Ground panel in central electrical unit
64 Switch

158 Motor

B Connector, central electrical unit
CConnector, left A-post
D Connector, sunroof motor
E Ground point, right A-post
