Relays

LEGEND

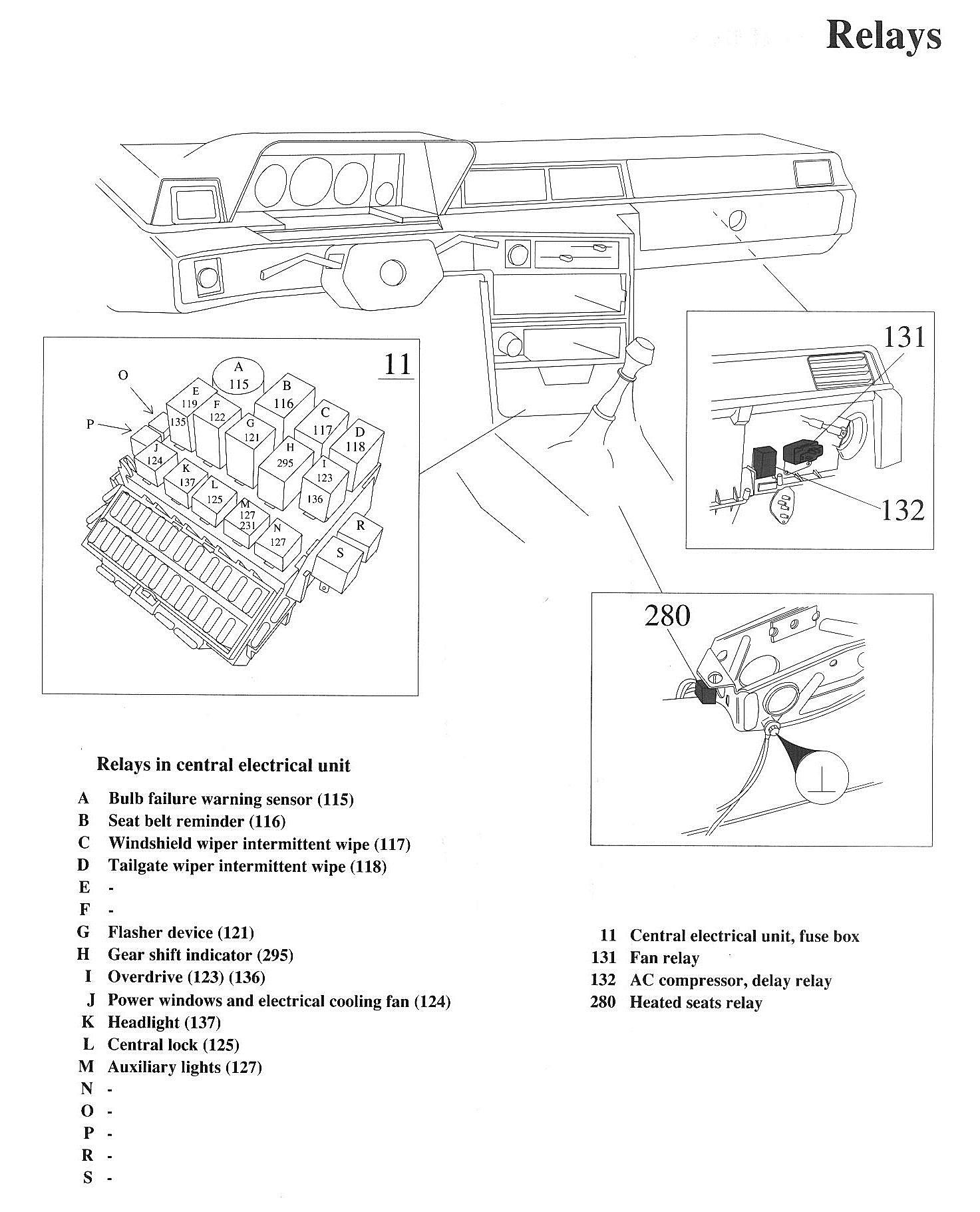

Relays in central electrical unit

A Bulb failure warning sensor (115)
B Seat belt reminder (116)
C Windshield wiper intermittent wipe (117)
D Tailgate wiper intermittent wipe (118)
F -
G Flasher device (121)
H Gear shift indicator (295)
I Overdrive (123) (136)
J Power windows and electrical cooling fan (124)
K Headlight (137)
L Central lock (125)
M Auxiliary lights (127)
N -
0 -
R -
S -

11 Central electrical unit, fuse box

131 Fan relay
132 AC compressor, delay relay
280 Heated seats relay
