System Diagram

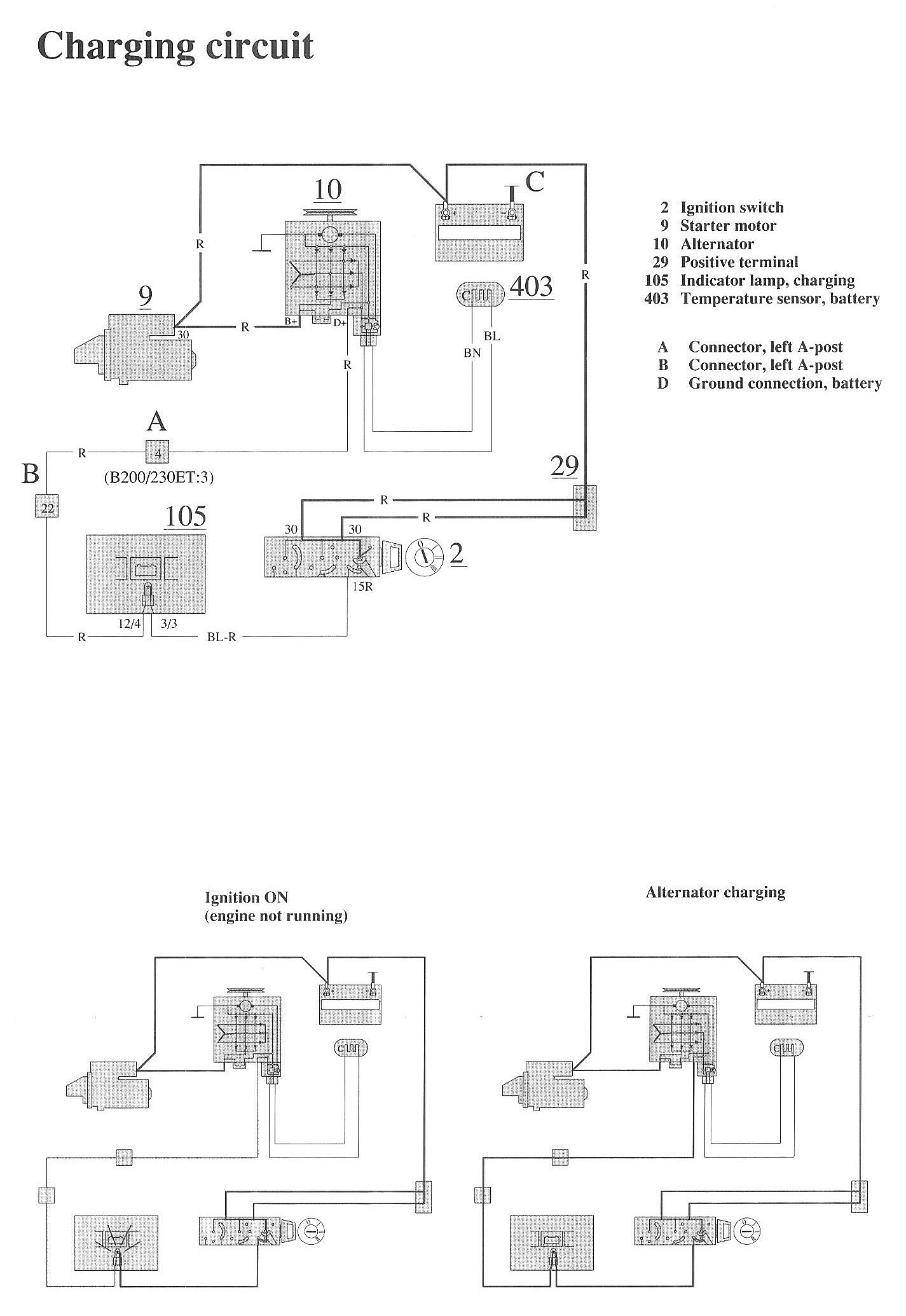

Wiring Diagrams:

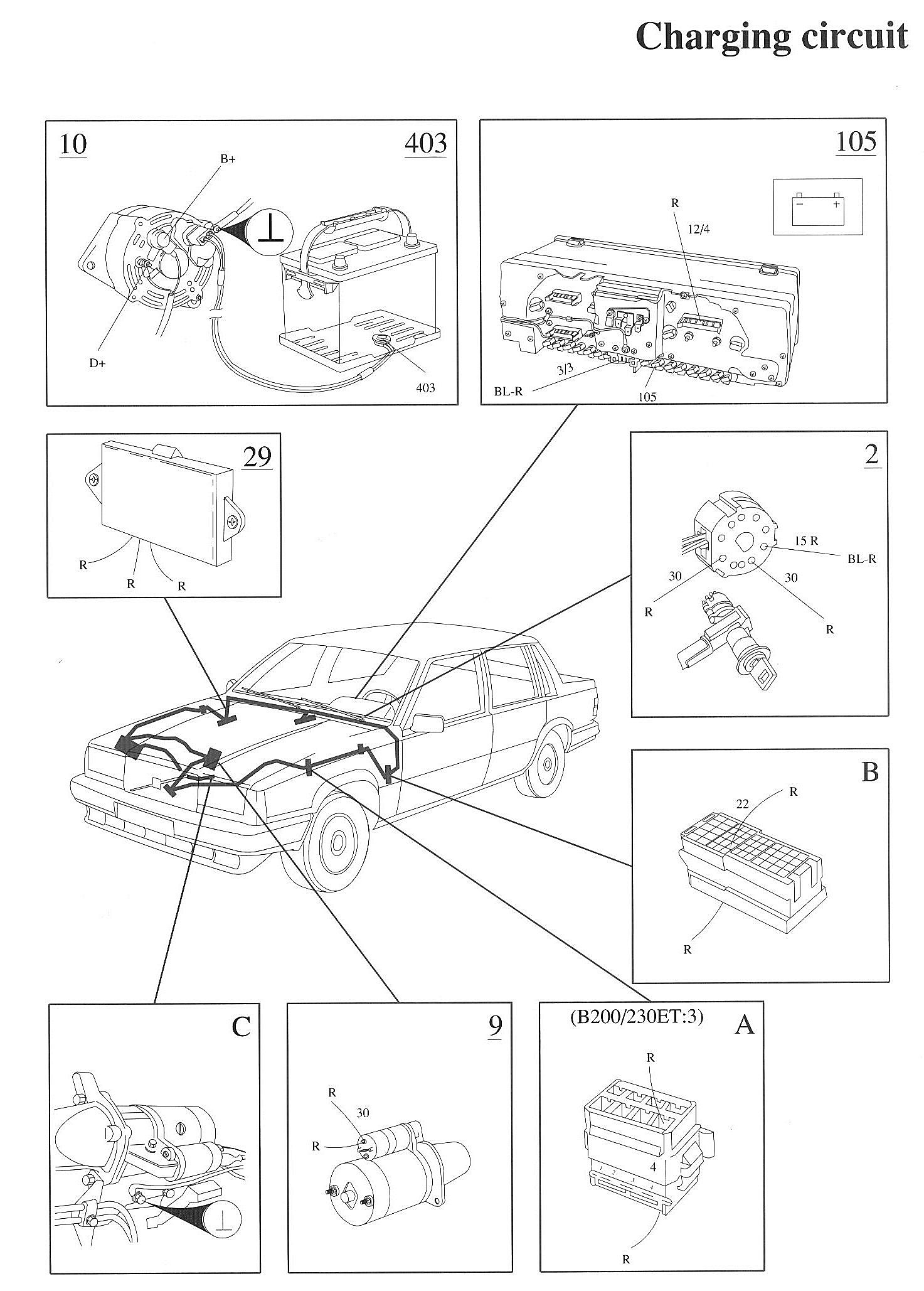

Component / Connector Views:

LEGEND
2 Ignition switch
9 Starter motor

10 Alternator
29 Positive terminal

105 Indicator lamp, charging
403 Temperature sensor, battery

A Connector, left A-post
B Connector, left A-post
D Ground connection, battery
