System Diagram

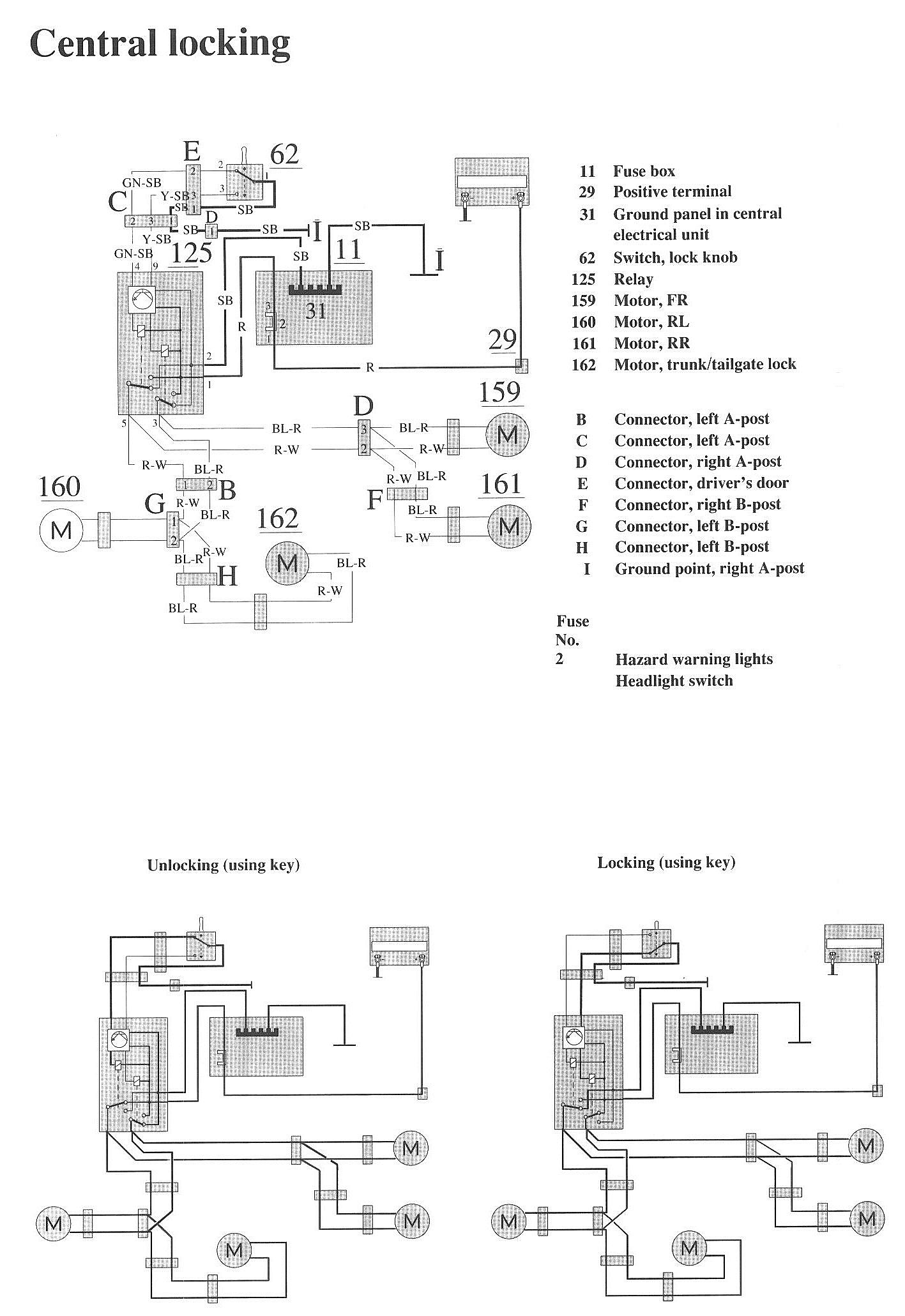

Wiring Diagrams:

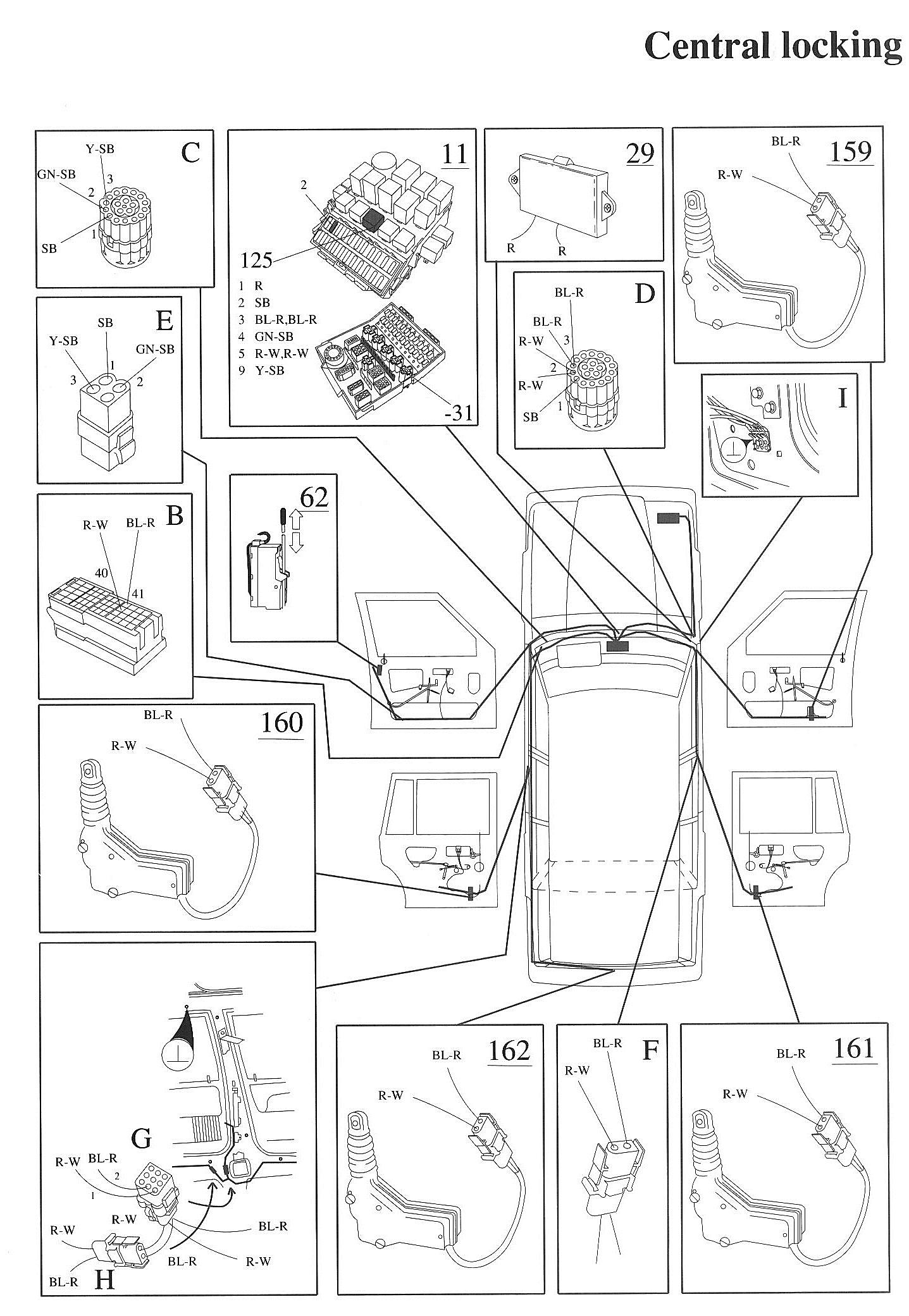

Component / Connector Views:

LEGEND
11 Fusebox

29 Positive terminal
31 Ground panel in central electrical unit
62 Switch, lock knob

125 Relay
159 Motor, FR
160 Motor, RL
161 Motor, RR
162 Motor, trunk/tailgate lock

B Connector, left A-post
C Connector, left A-post
D Connector, right A-post
E Connector, driver's door
F Connector, right B-post
G Connector, left B-post
H Connector, left B-post
I Ground point, right A-post
