Power Door Mirrors

Component / Connector Views:

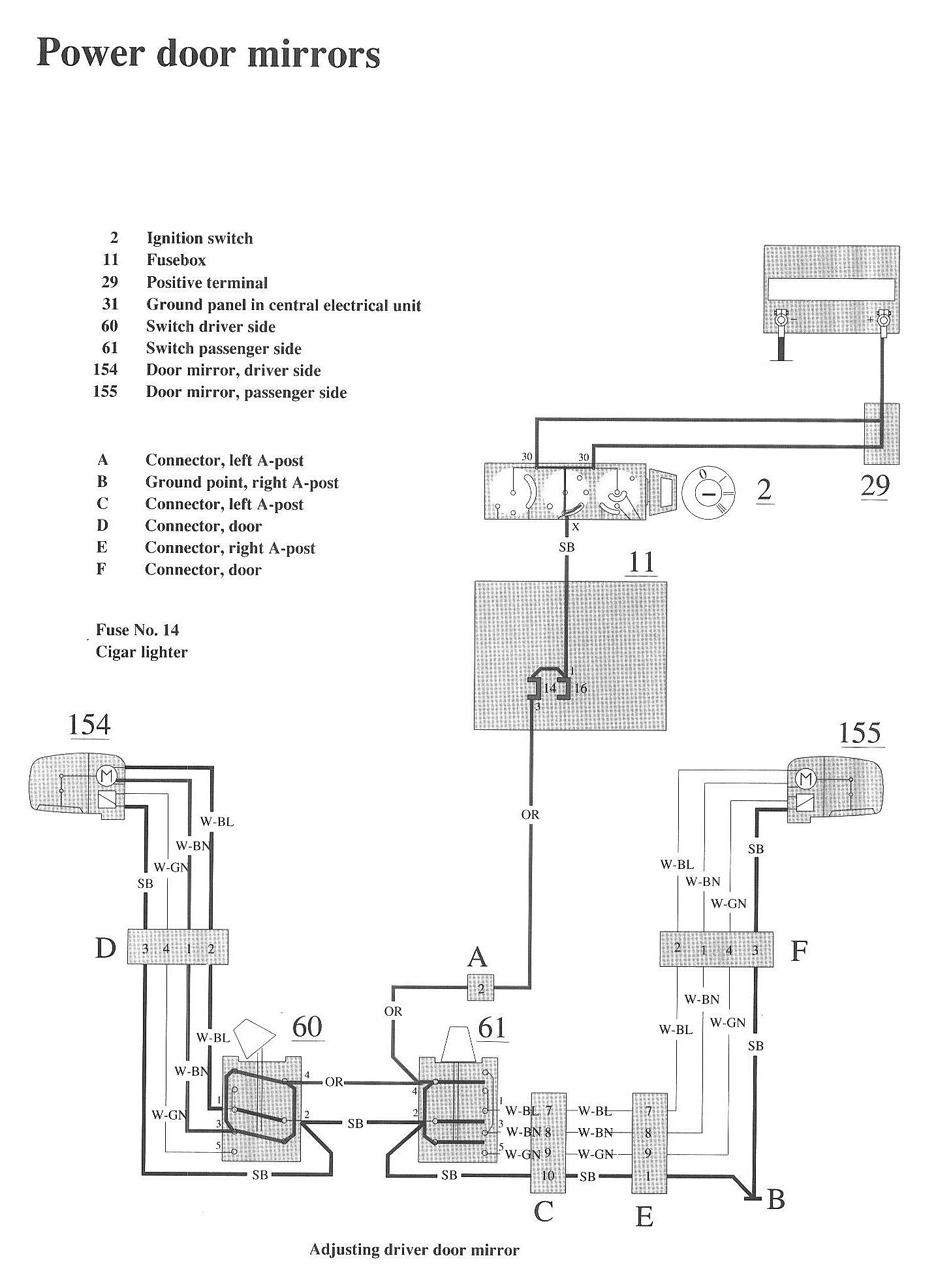

Wiring Diagrams:

LEGEND
2 Ignition switch

11 Fusebox
29 Positive terminal
31 Ground panel in central electrical unit
60 Switch driver side
61 Switch passenger side

154 Door mirror, driver side
155 Door mirror, passenger side

A Connector, left A-post
B Ground point, right A-post
C Connector, left A-post
D Connector, door
E Connector, right A-post
F Connector, door
