Ignition System

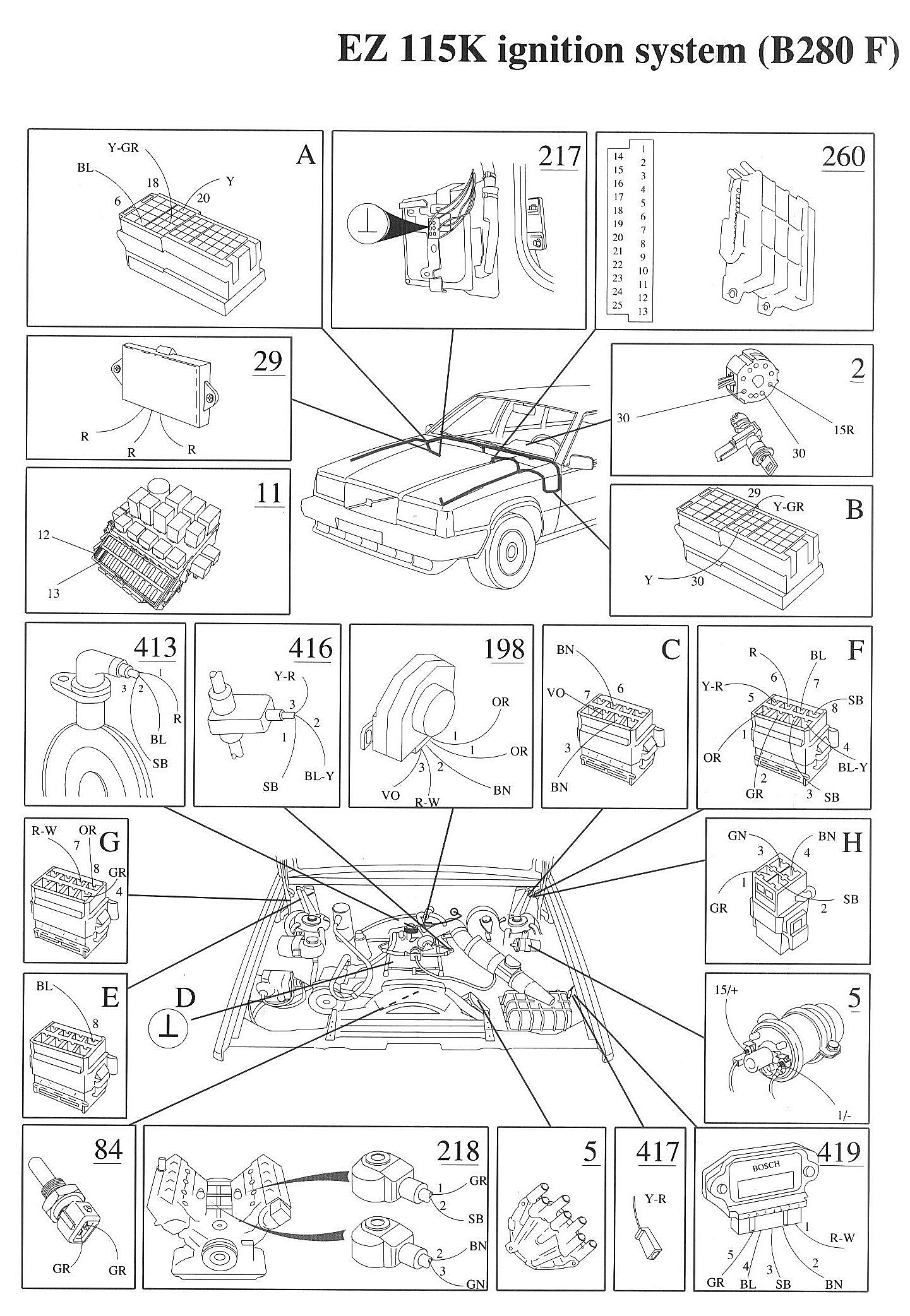

Component Locations:

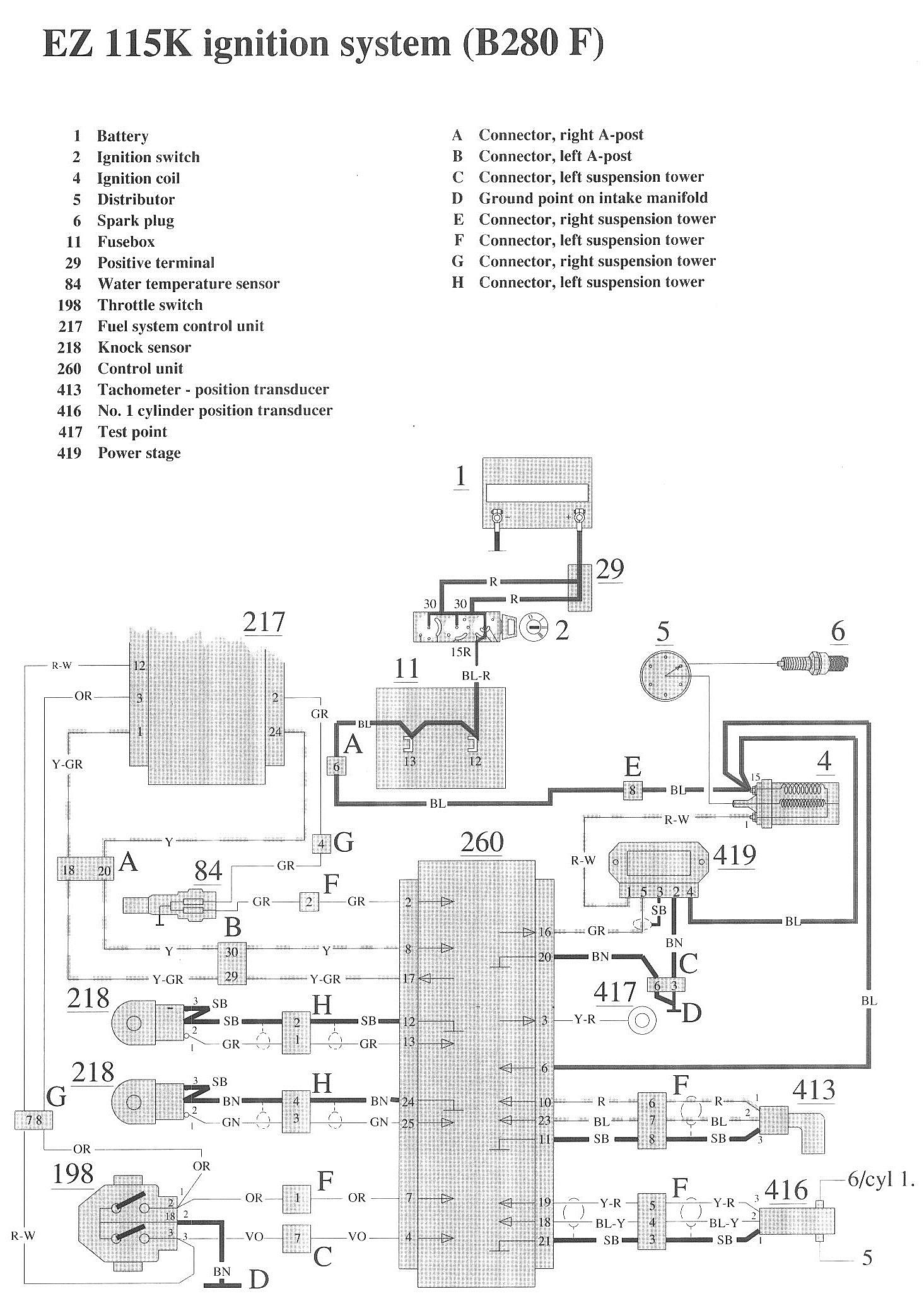

Wiring Diagram:

LEGEND
1 Battery
2 Ignition switch
4 Ignition coil
5 Distributor
6 Spark plug

11 Fusebox
29 Positive terminal
84 Water temperature sensor

198 Throttle switch
217 Fuel system control unit
218 Knock sensor
260 Control unit
413 Tachometer - position transducer
416 No.1 cylinder position transducer
417 Test point
419 Power stage

A Connector, right A-post
B Connector, left A-post
C Connector, left suspension tower
D Ground point on intake manifold
F Connector, right suspension tower
F Connector, left suspension tower
G Connector, right suspension tower
H Connector, left suspension tower
