Volvo
>>
1987
>>
780 V6-2849cc 2.8L SOHC B280F
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Front
Front

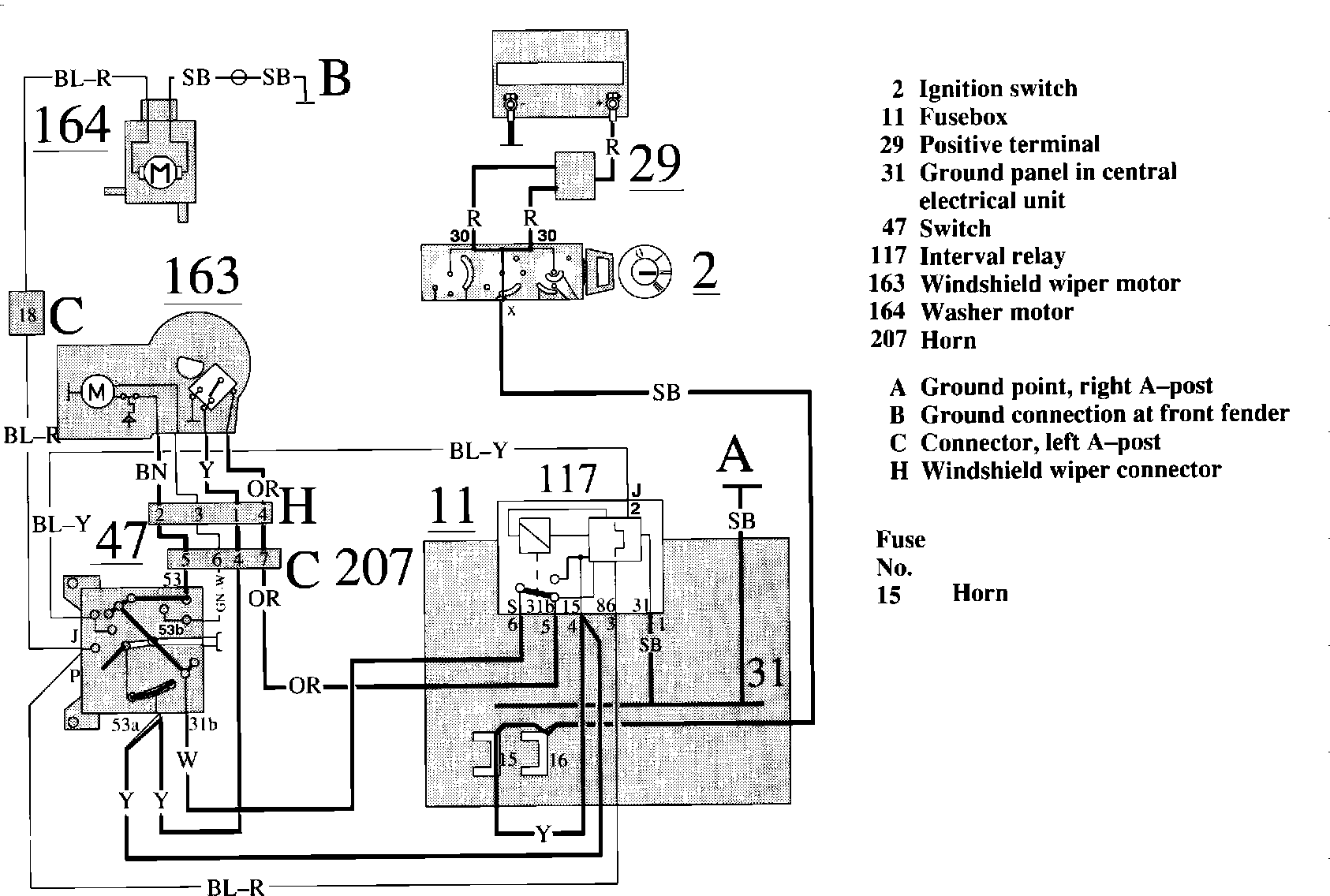

Washer & Wiper Wiring Circuit (Front):
