Radio/Stereo

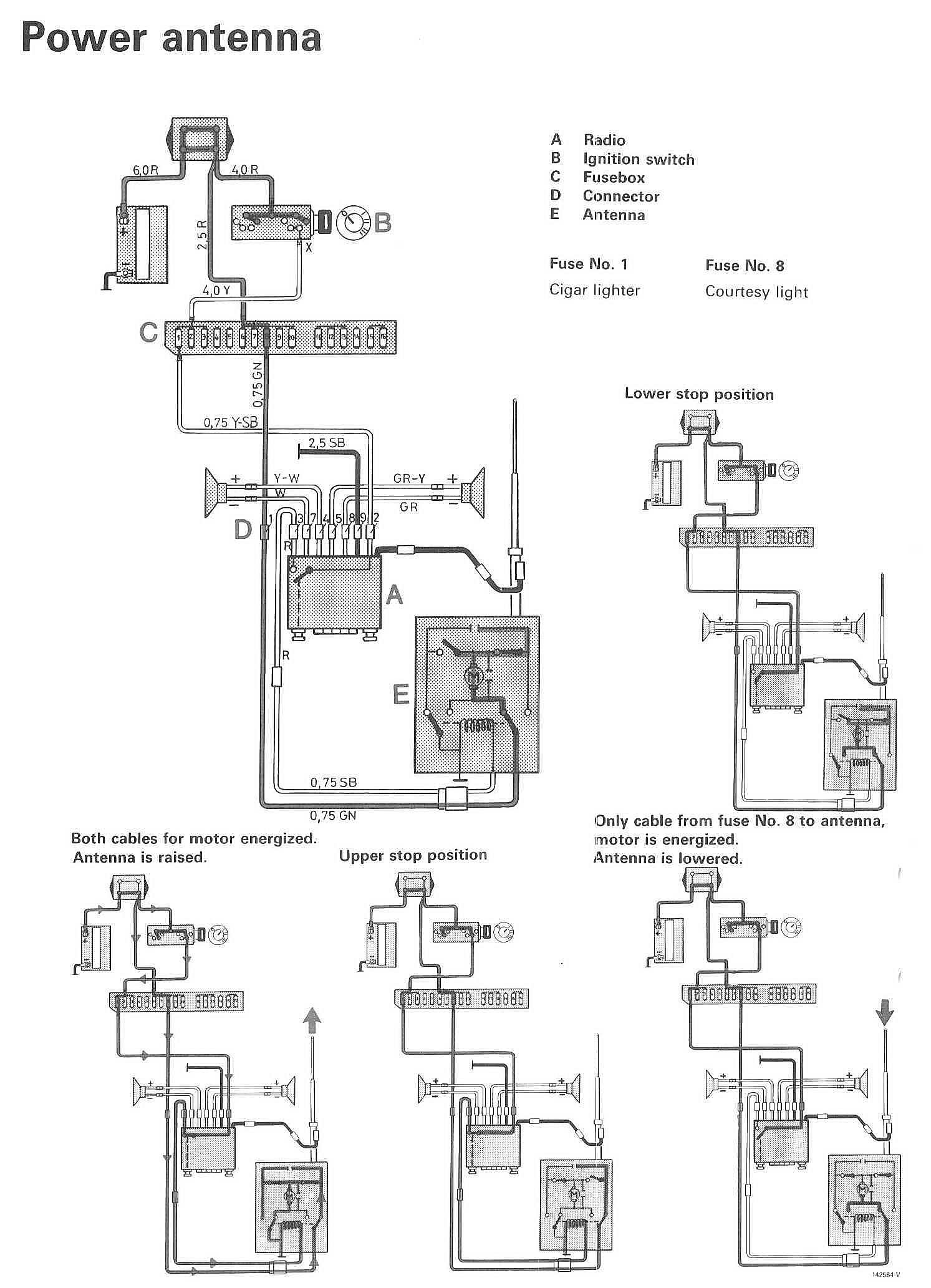

Wiring Diagrams:




Locations/Connector Views:




LEGEND
A Radio
B Ignition switch
C Fusebox
D Connector
E Antenna
