Sunroof / Moonroof: Locations
Component / Connector Views:

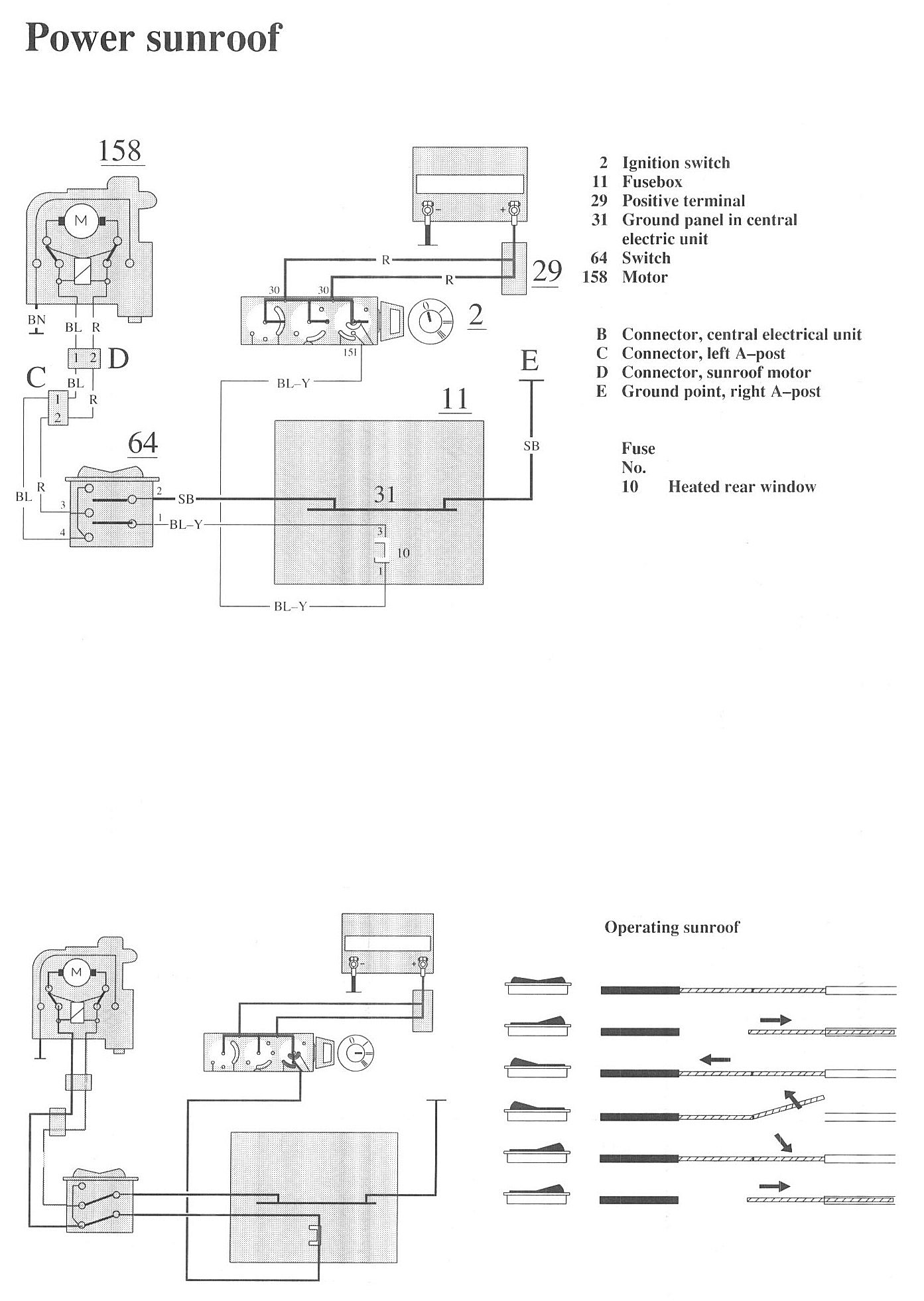

Wiring Diagrams:
LEGEND
2
Ignition switch
11
Fusebox
29
Positive terminal
31
Ground panel in central electric unit
64
Switch
158
Motor
