System Diagram

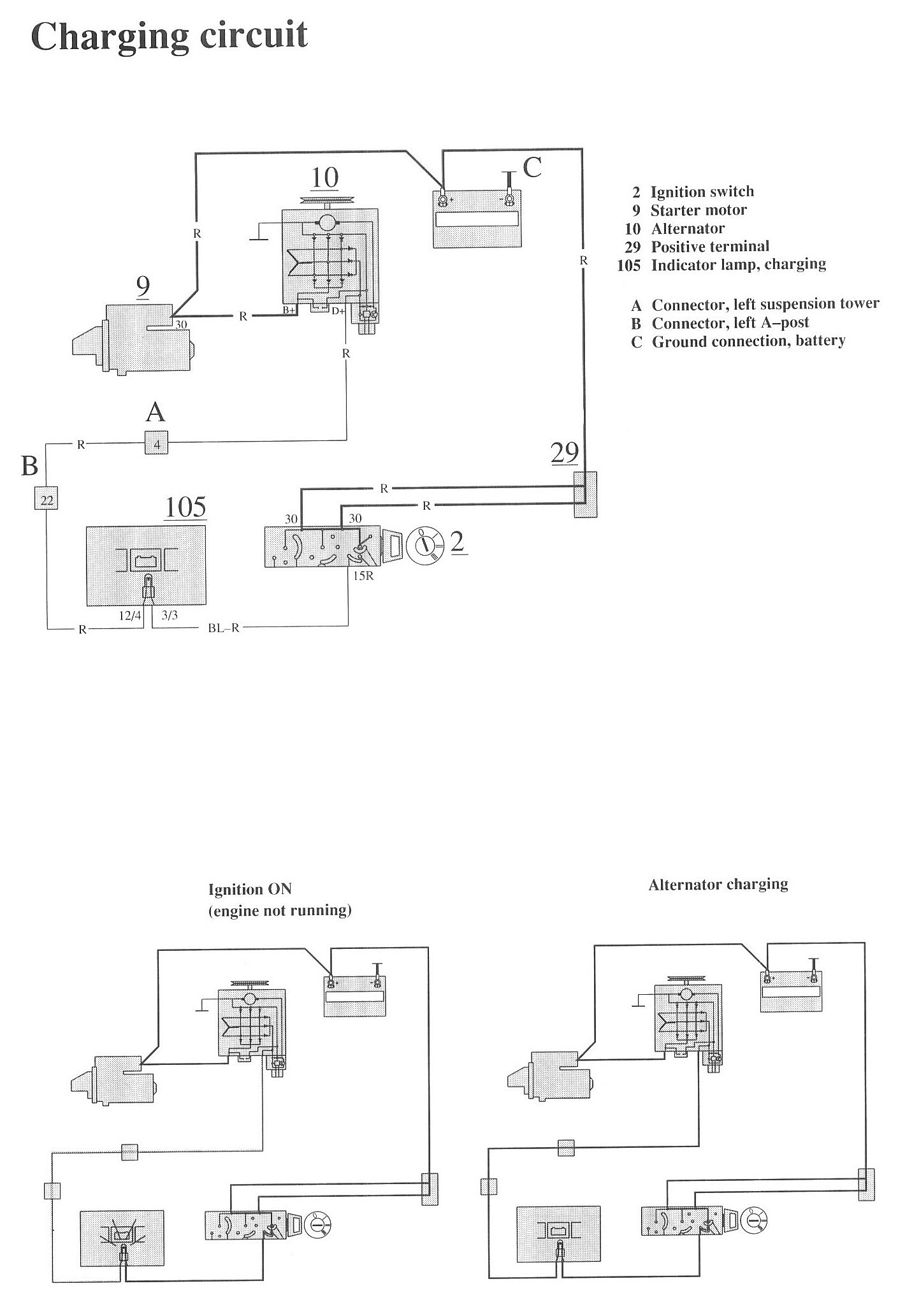

Wiring Diagrams:

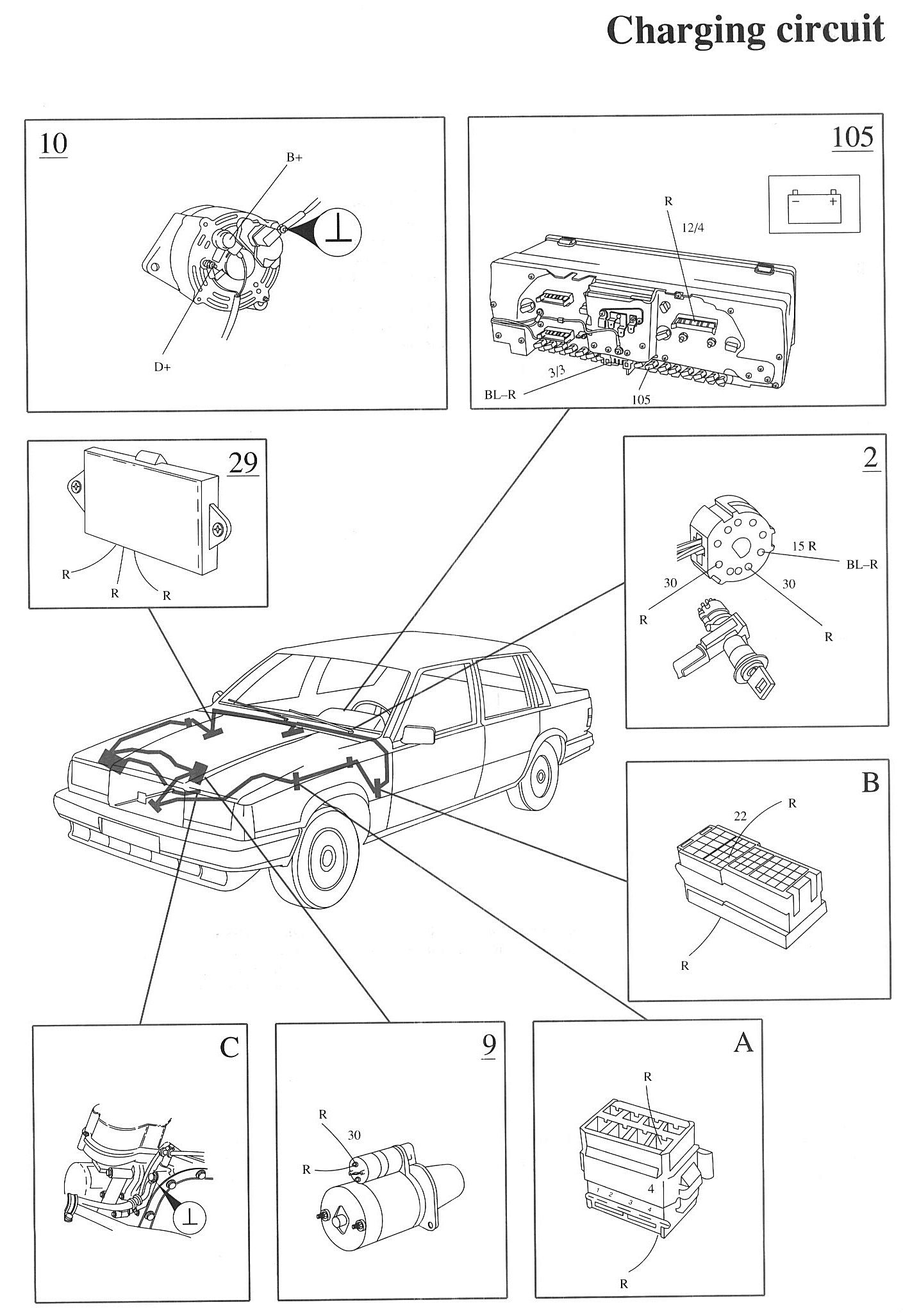

Component / Connector Views:

LEGEND
2 Ignition switch
9 Starter motor

10 Alternator
29 Positive terminal

105 Indicator lamp, charging

A Connector, left suspension tower
B Connector, left A-post
C Ground connection, battery
