Fog Lights, Rear

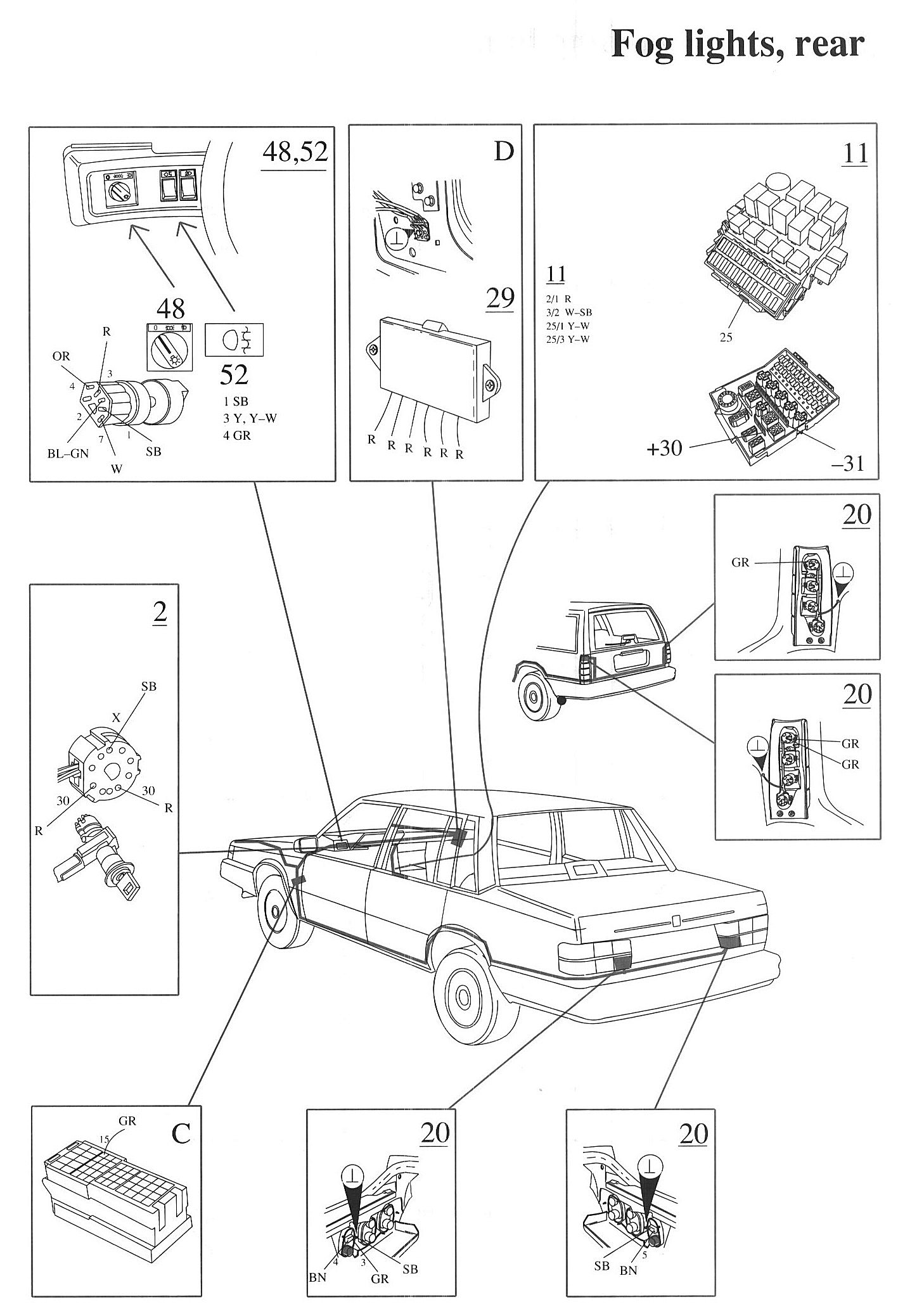

Component / Connector Views:

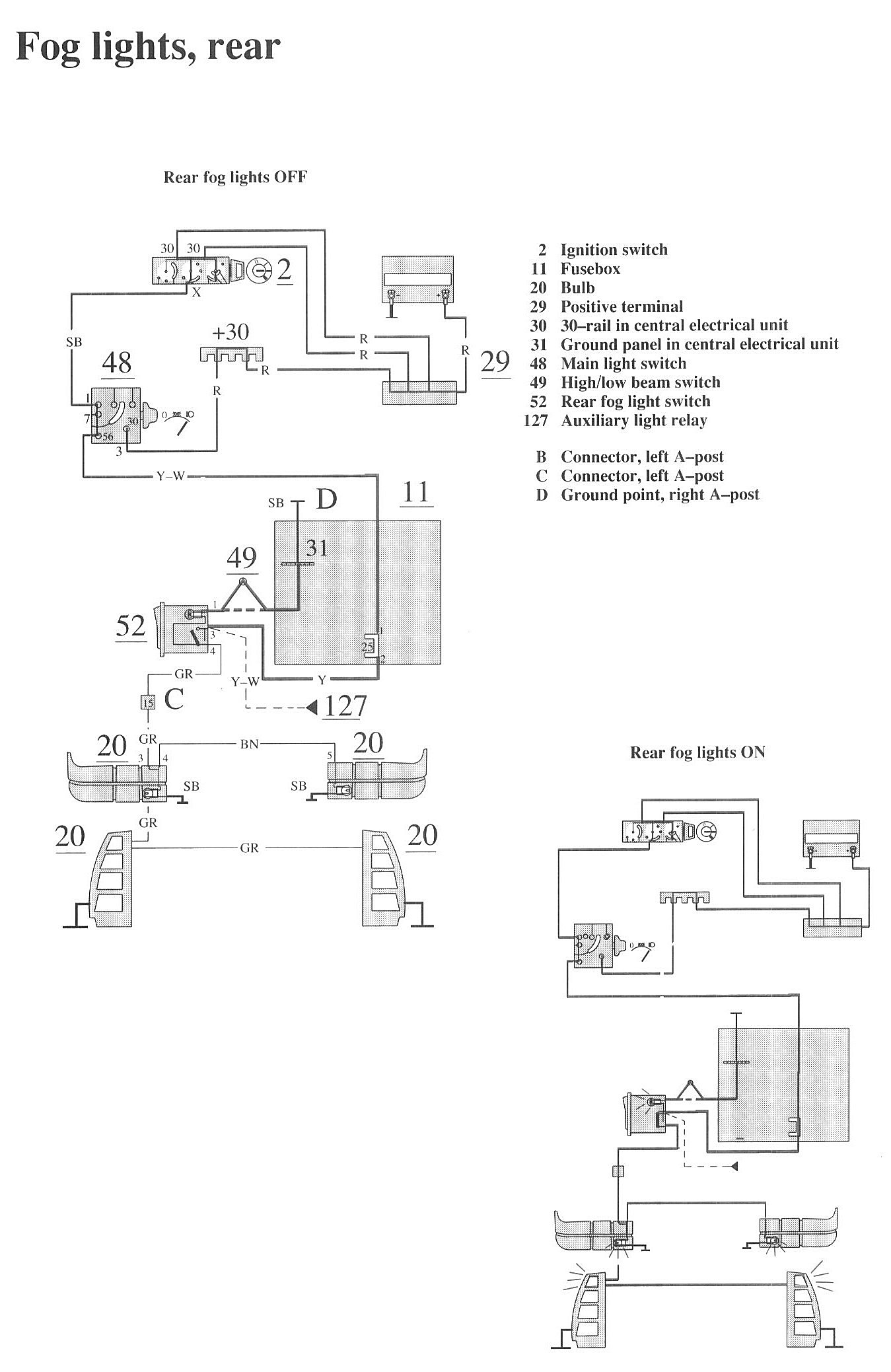

Wiring Diagrams:

LEGEND
2 Ignition switch

11 Fusebox
20 Bulb
29 Positive terminal
30 30-rail in central electrical unit
31 Ground panel in central electrical unit
48 Main light switch
49 High/low beam switch
52 Rear fog light switch

127 Auxiliary light relay

B Connector, left A-post
C Connector, left A-post
D Ground point, right A-post
