Heated Seats (Dual-Output)

Component / Connector Views:

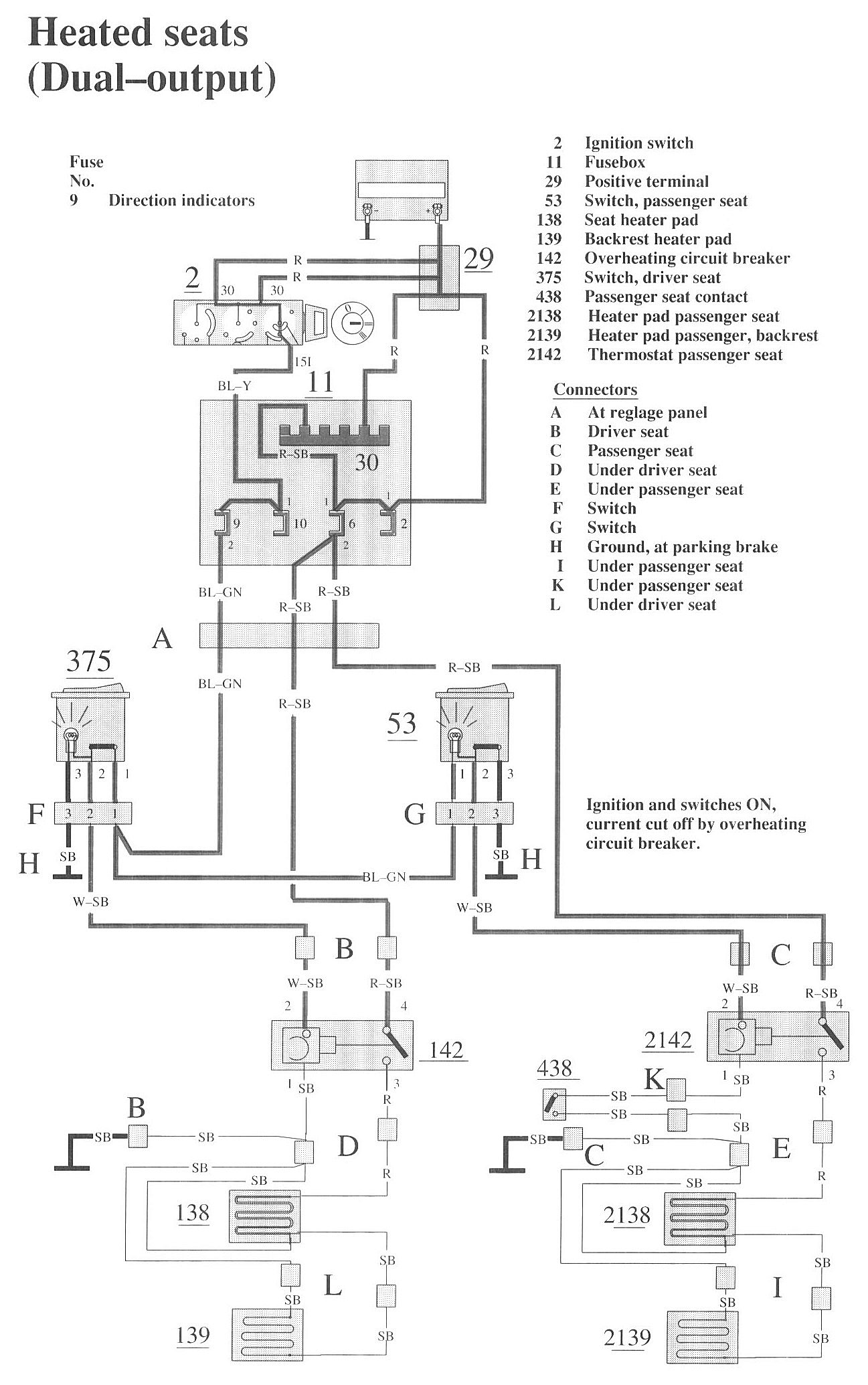

Wiring Diagrams:

LEGEND
2 Ignition switch

11 Fusebox
29 Positive terminal
53 Switch, passenger seat

138 Seat heater pad
139 Backrest heater pad
142 Overheating circuit breaker
375 Switch, driver seat
438 Passenger seat contact

2138 Heater pad passenger seat
2139 Heater pad passenger, backrest
2142 Thermostat passenger seat
