Heated Seats (Single-Output)

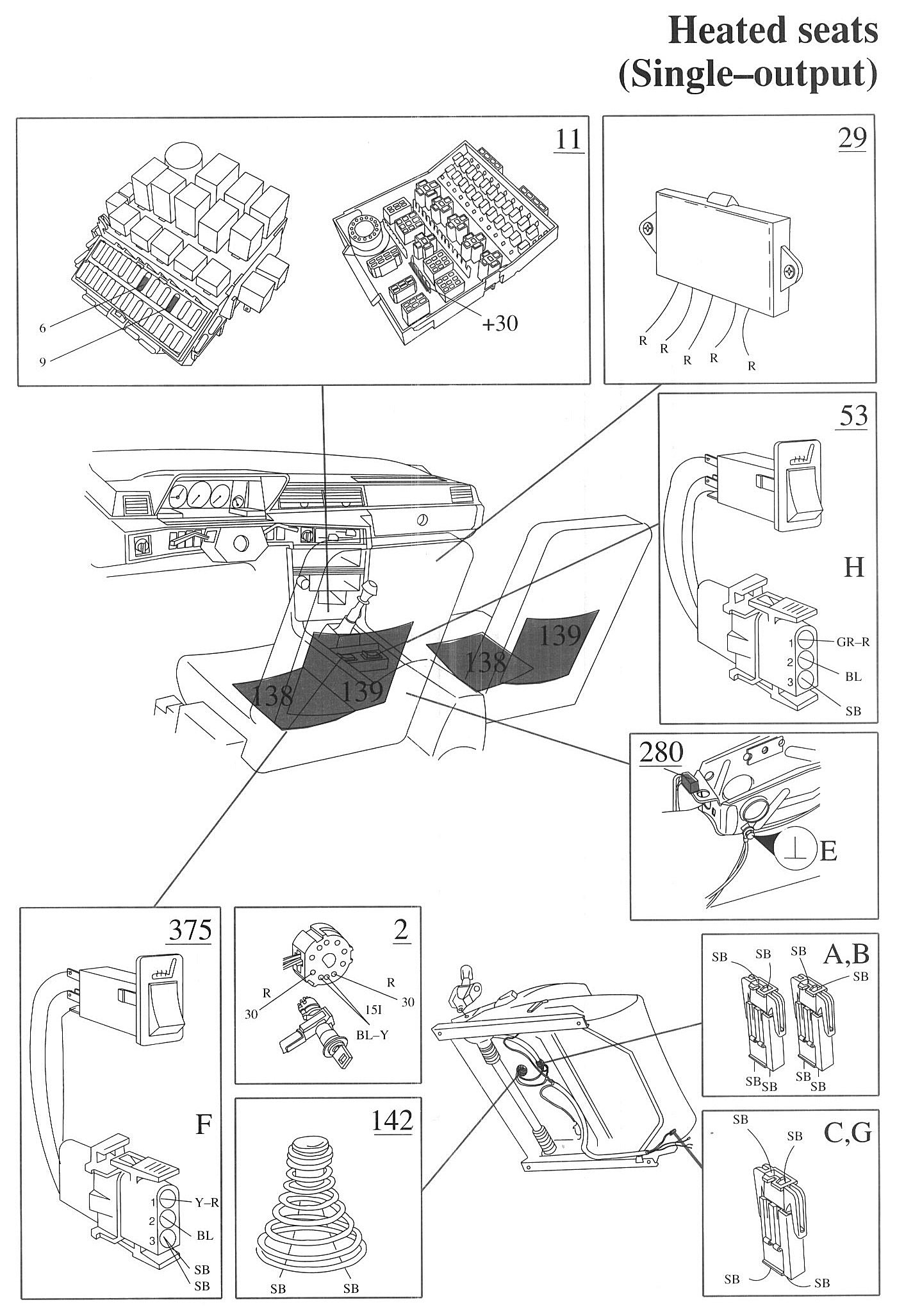

Component / Connector Views:

Wiring Diagrams:

LEGEND
2 Ignition switch

11 Fusebox
29 Positive terminal
30 Ground panel in central electrical unit
53 Switch, passenger seat

138 Heater pad, backrest
139 Heater pad, backrest
142 Thermostat
280 Relay
375 Switch, driver seat
