Door Open Warning Lamps

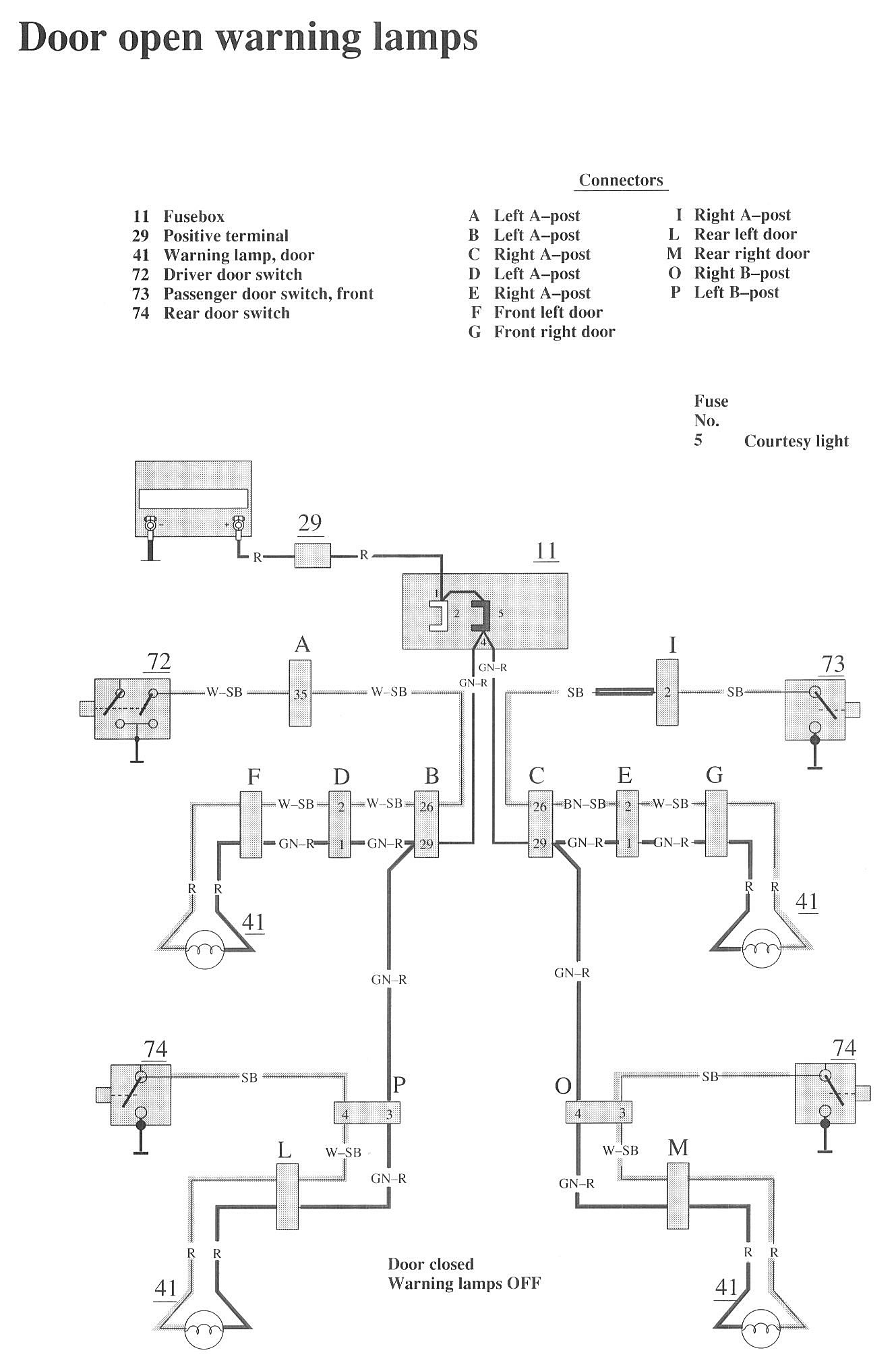

Wiring Diagrams:

Component / Connector Views:

LEGEND
11 Fusebox
29 Positive terminal
41 Warning lamp, door
72 Driver door switch
73 Passenger door switch, front
74 Rear door switch

A Left A-post
B Left A-post
C Right A-post
D Left A-post
E Right A-post
F Front left door
G Front right door
I Right A-post
L Rear left door
M Rear right door
O Right B-post
P Left B-post
