Power Seats

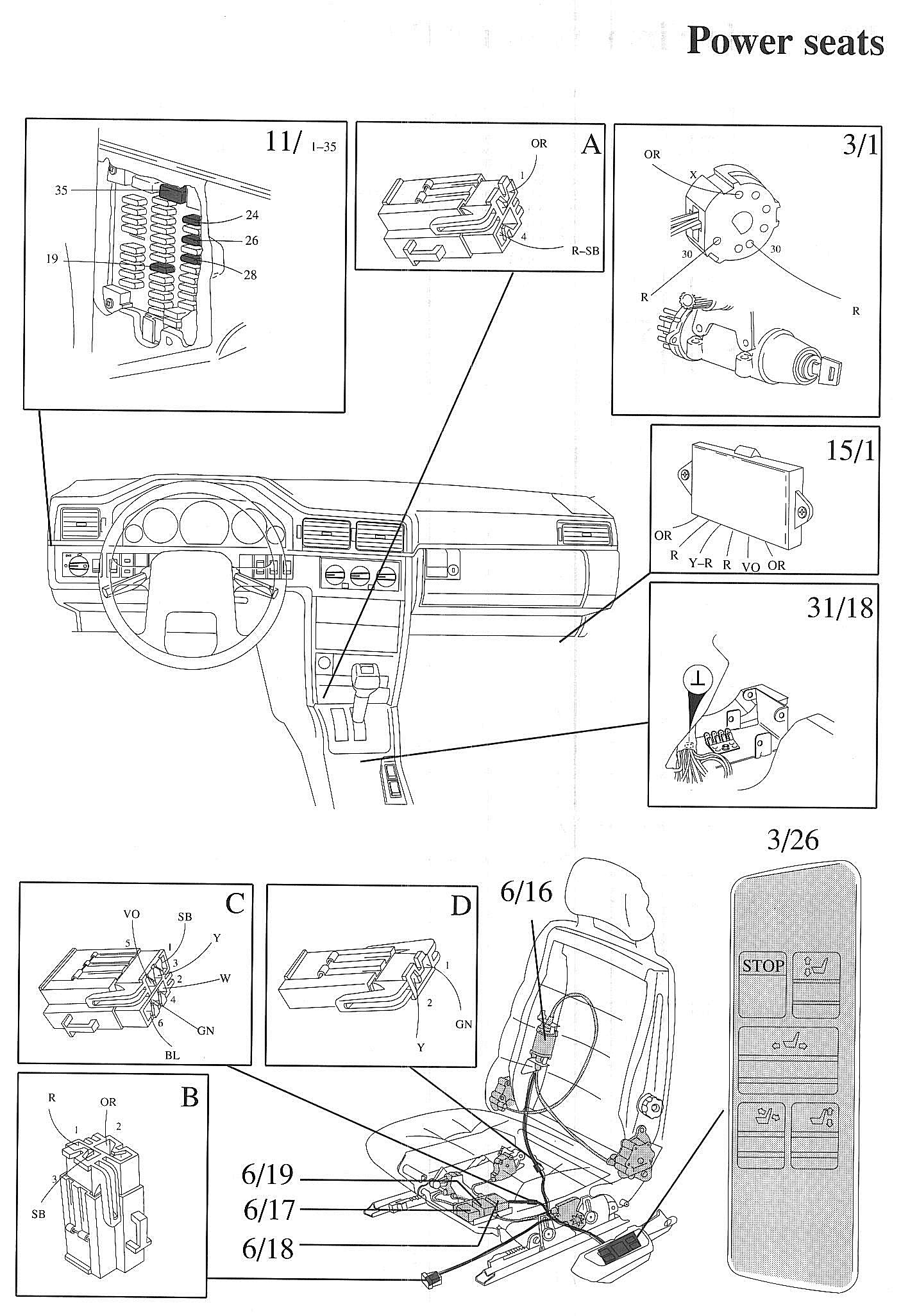

Component / Connector Views:

Wiring Diagrams:

LEGEND
1/1 Battery
3/1 Ignition switch
3/26 Control unit
6/16 Motor, backrest tilt
6/17 Motor, up-down (front)
6/18 Motor, up-down (rear)
6/19 Motor, backward - forward

11/1-35 Fuses
15/1 Positive terminal
31/18 Ground point
