System Diagram

Wiring Diagrams:

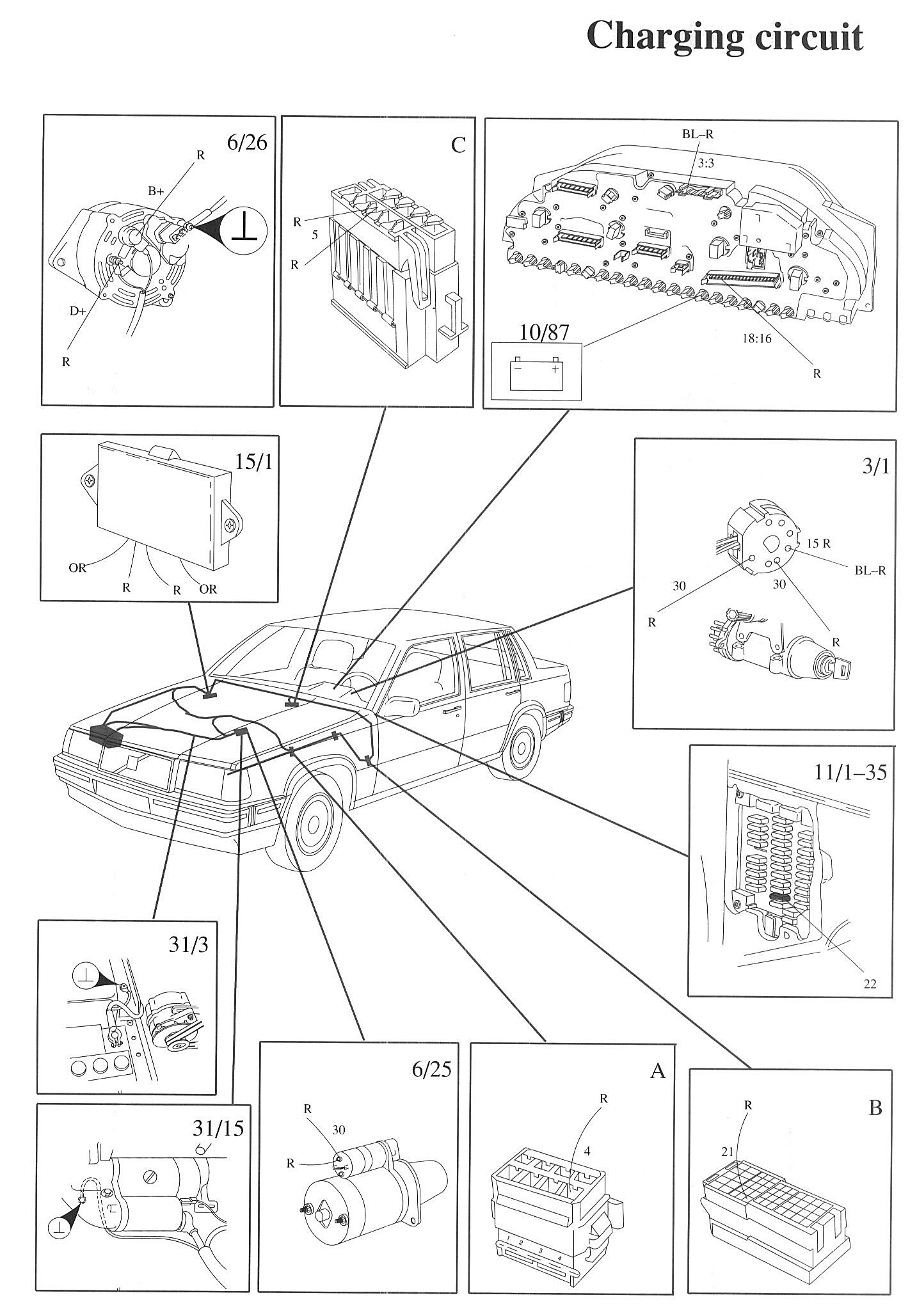

Component / Connector Views:

LEGEND
1/1 Battery
3/1 Ignition switch
416 Control unit, ECC
5/3 3-pole connector, instrument panel
5/18 18-pole connector, instrument panel
6/25 Starter motor
6/26 Alternator

10/87 Indicator lamp, charging
11/1-35 Fuses
15/1 Positive terminal
31/3 Ground point, battery-body
31/15 Ground point, battery-motor
