Brake Lamp

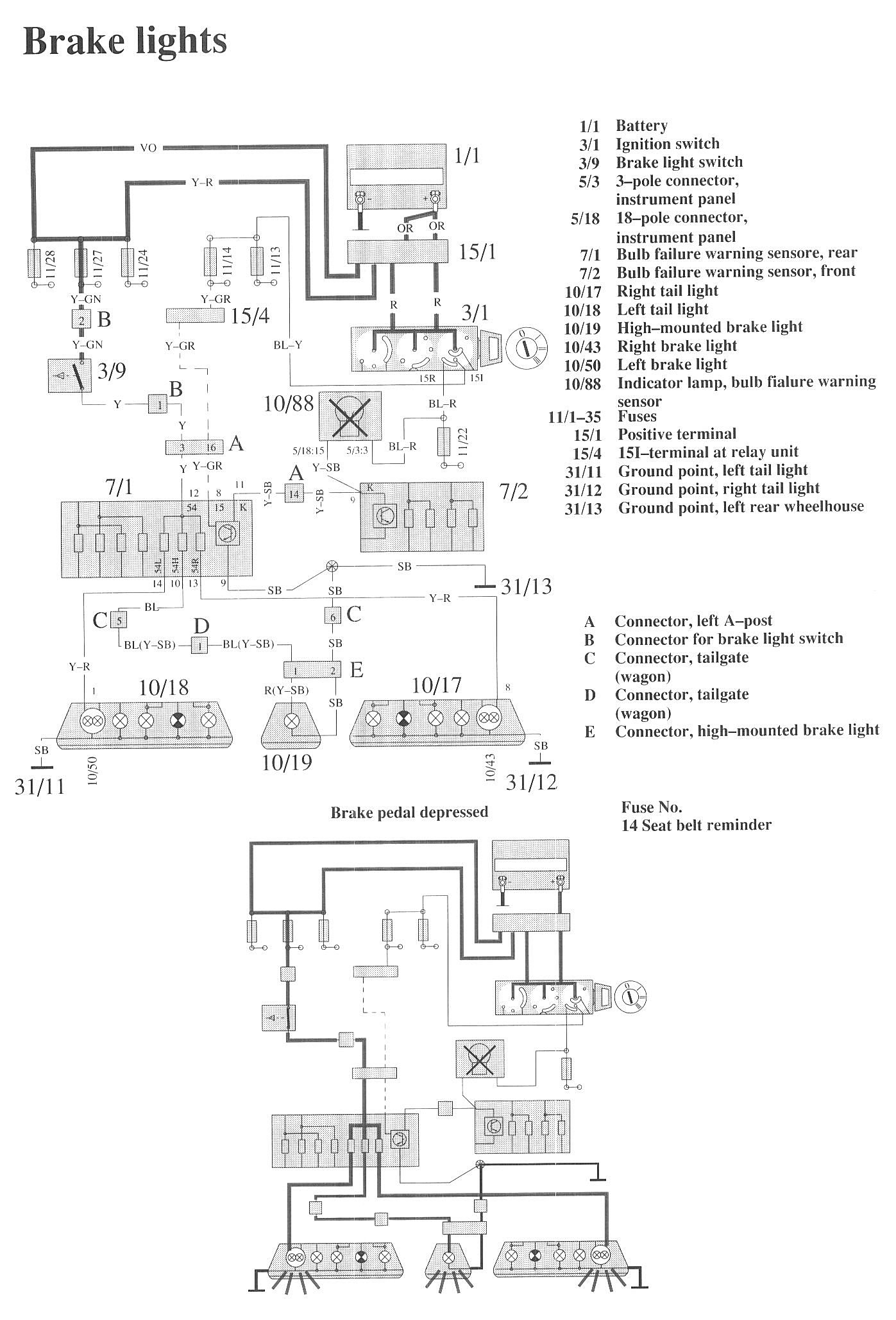

Wiring Diagrams:

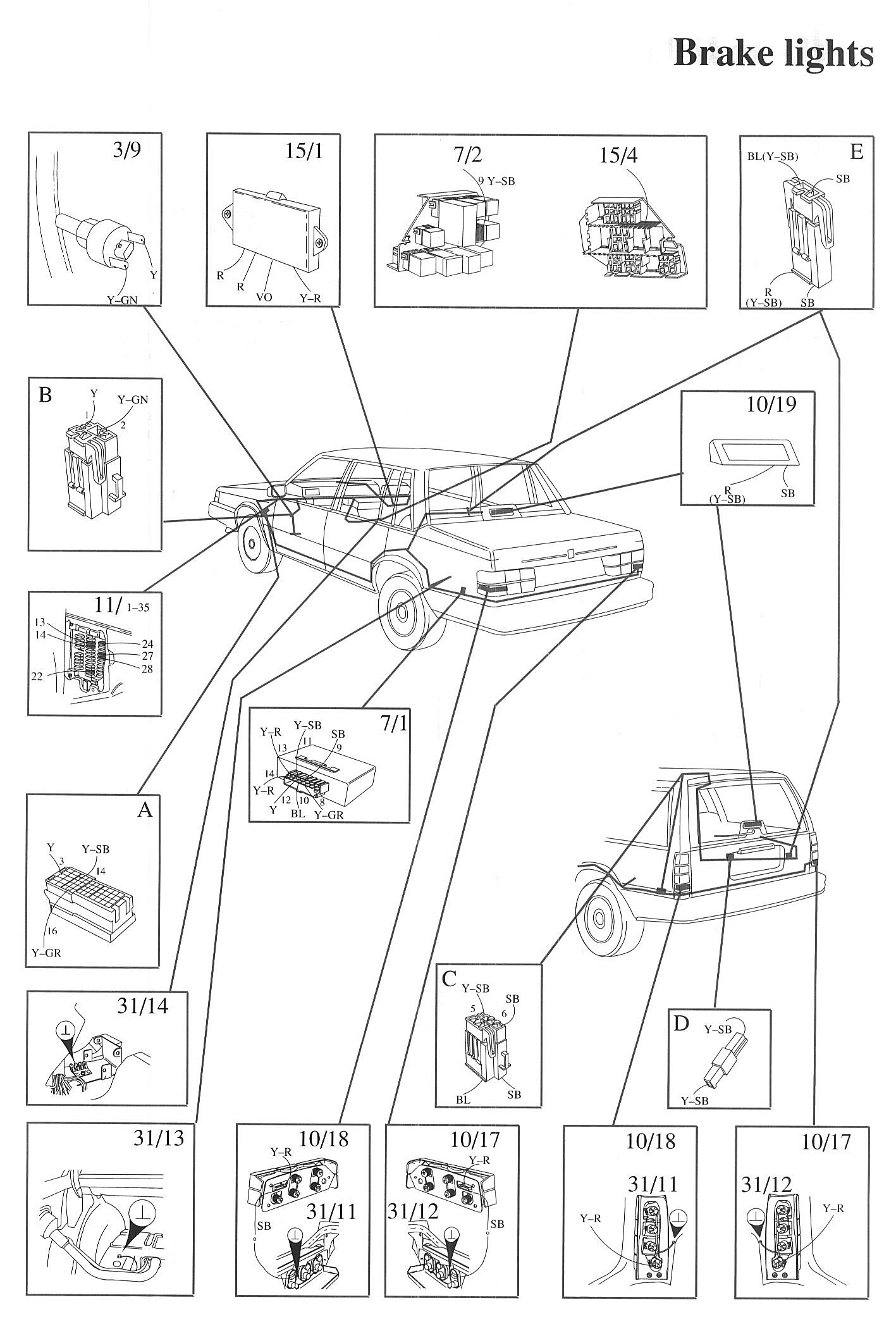

Component / Connector Views:

LEGEND
1/1 Battery
3/1 Ignition switch
3/9 Brake light switch
5/3 3-pole connector, instrument panel
5/18 18-pole connector, instrument panel
7/1 Bulb failure warning sensor, rear
7/2 Bulb failure warning sensor, front

10/17 Right tail light
10/18 Left tail light
10/19 High mounted brake light
10/43 Right brake light 10/50 Left brake light
10/88 Indicator lamp, bulb failure warning sensor
11/1-35 Fuses
15/1 Positive terminal
15/4 15I-terminal at relay unit
31/11 Ground point, left tail light
31/12 Ground point, right tail light
31/13 Ground point, left rear wheelhouse
