System Diagram

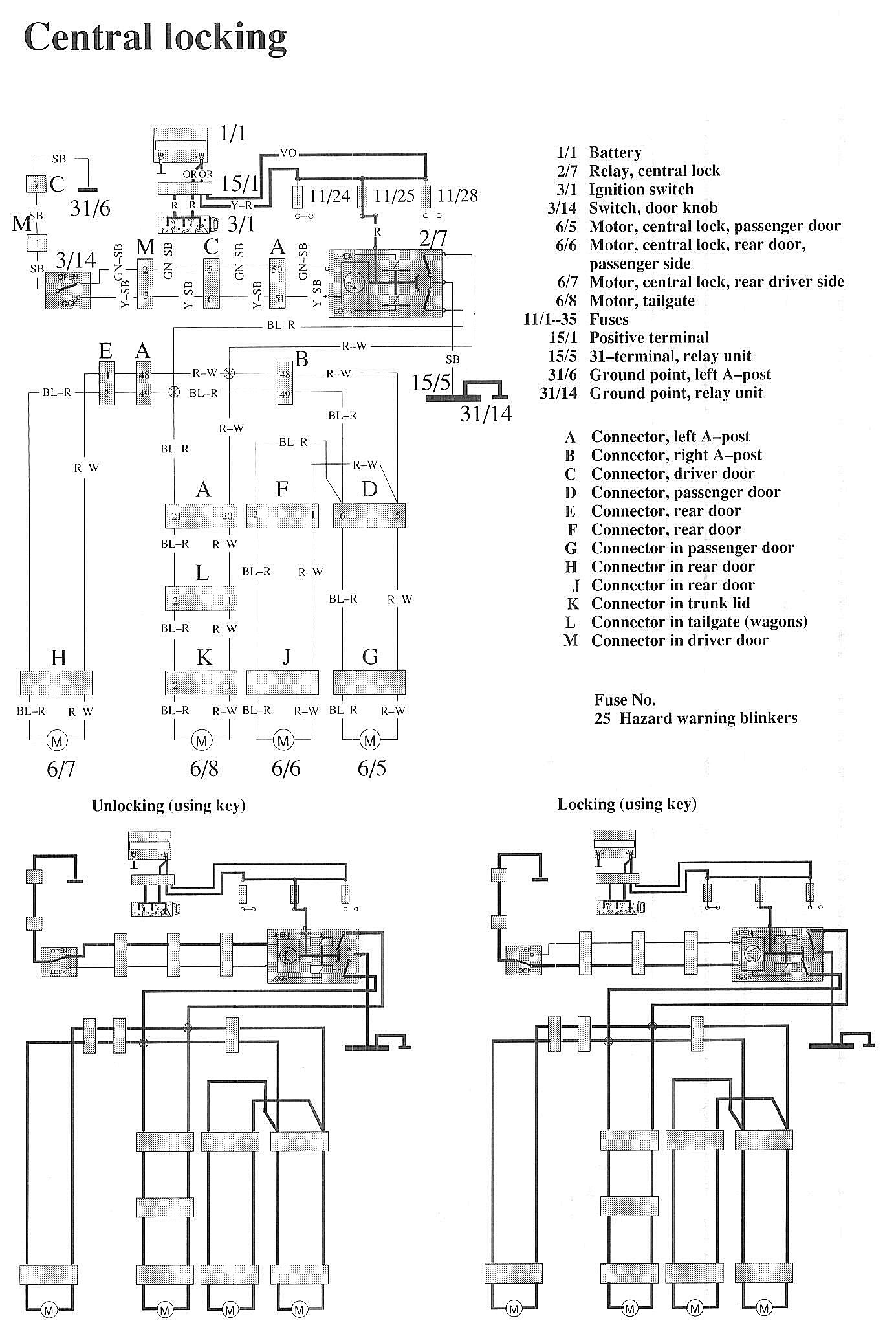

Wiring Diagrams:

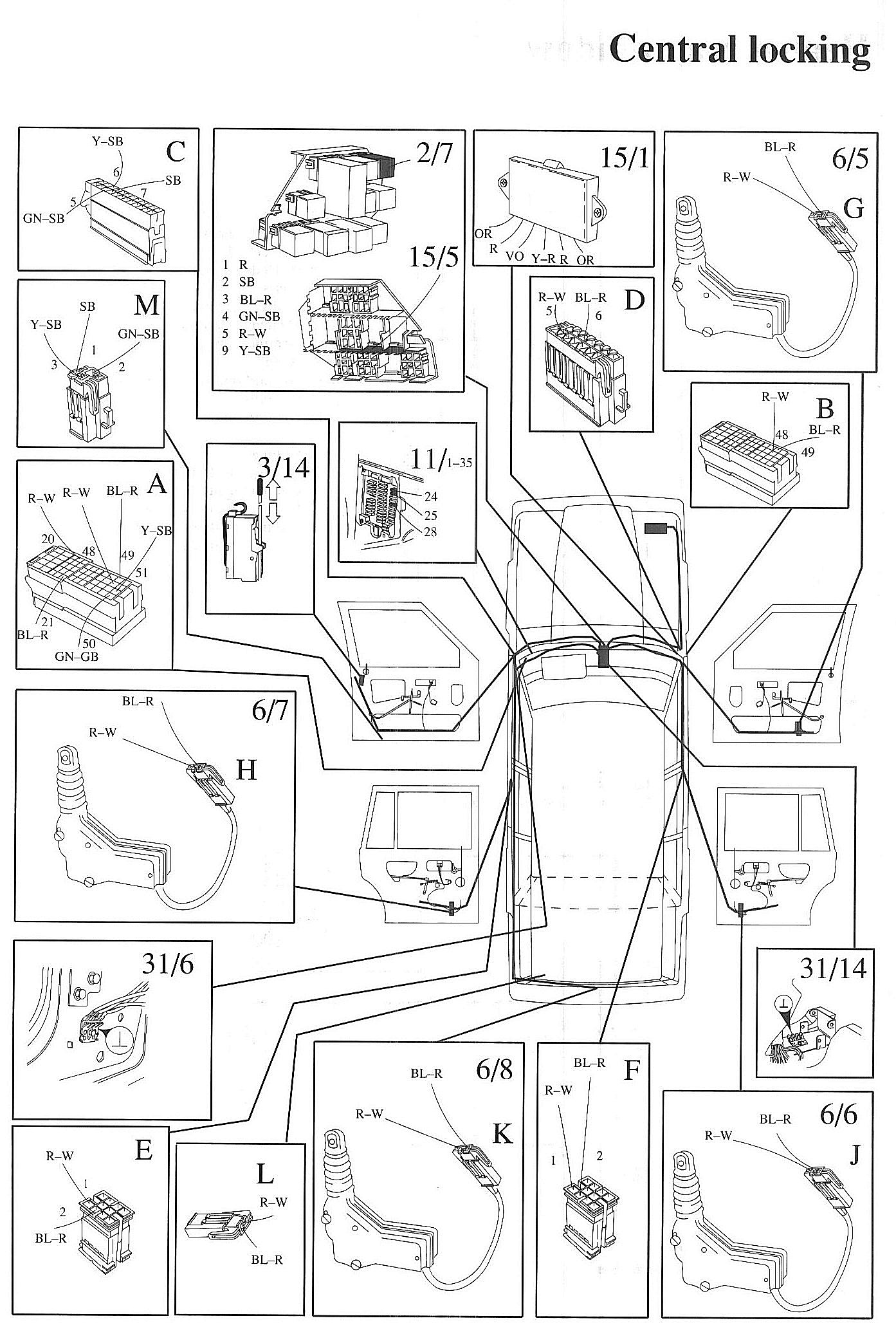

Component / Connector Views:

LEGEND
1/1 Battery
2/7 Relay, central lock
3/1 Ignition switch
3/14 Switch, door knob
6/5 Motor, central lock, passenger door
6/6 Motor, central lock, rear door, passenger side
6/7 Motor, central lock, rear driver side
6/8 Motor, tailgate

11/1-35 Fuses
15/1 Positive terminal
15/5 31-terminal, relay unit
31/6 Ground point, left A-post
31/14 Ground point, relay unit
