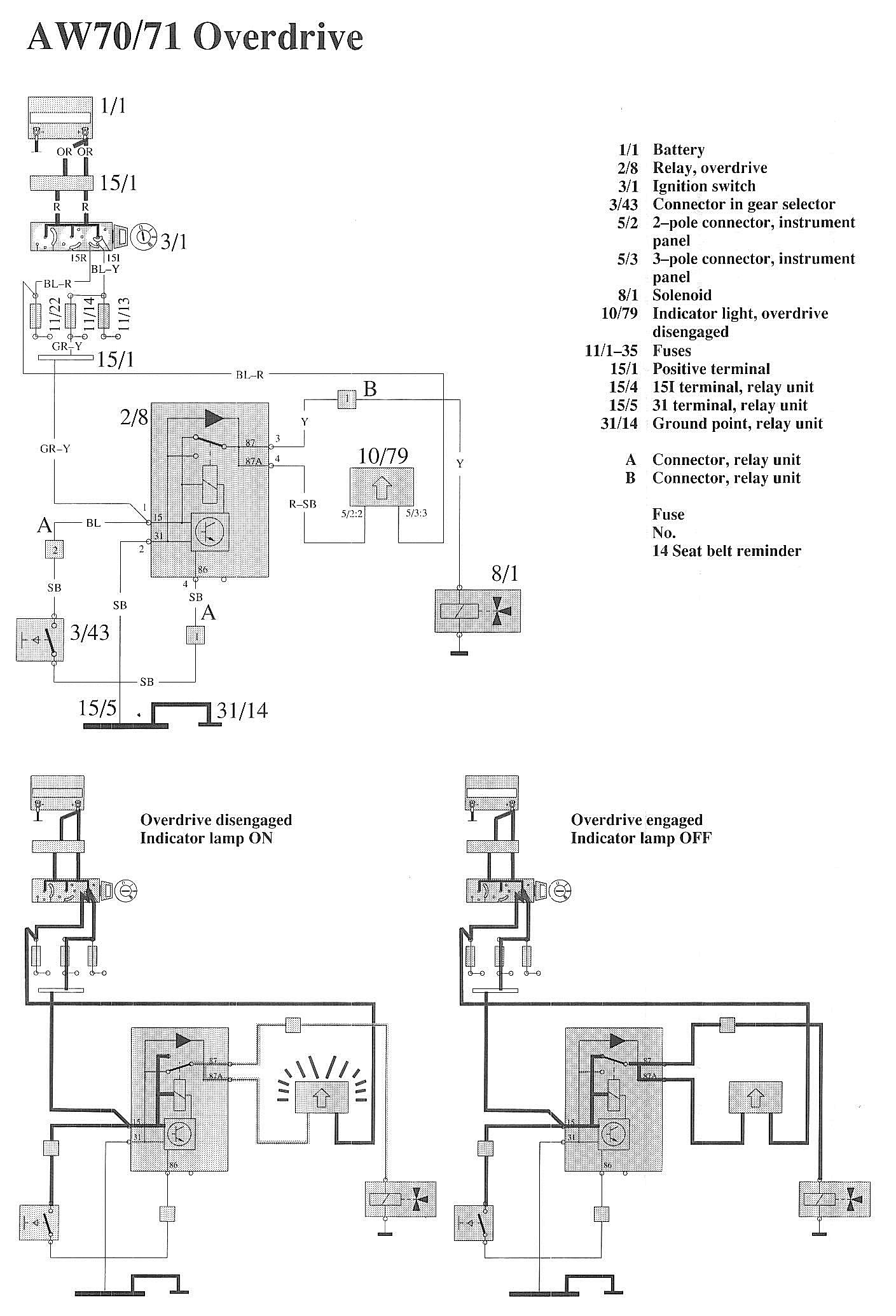

System Diagram

Wiring Diagrams:

Component / Connector Views:

LEGEND
1/1 Battery
2/8 Relay, overdrive
3/1 Ignition switch
3/43 Connector in gear selector
5/2 2-pole connector, instrument panel
5/3 3-pole connector, instrument panel
8/1 Solenoid

10/79 Indicator light, overdrive disengaged
11/1-35 Fuses
15/1 Positive terminal
15/4 15I terminal, relay unit
15/5 31 terminal, relay unit
31/14 Ground point, relay unit
