System Diagram

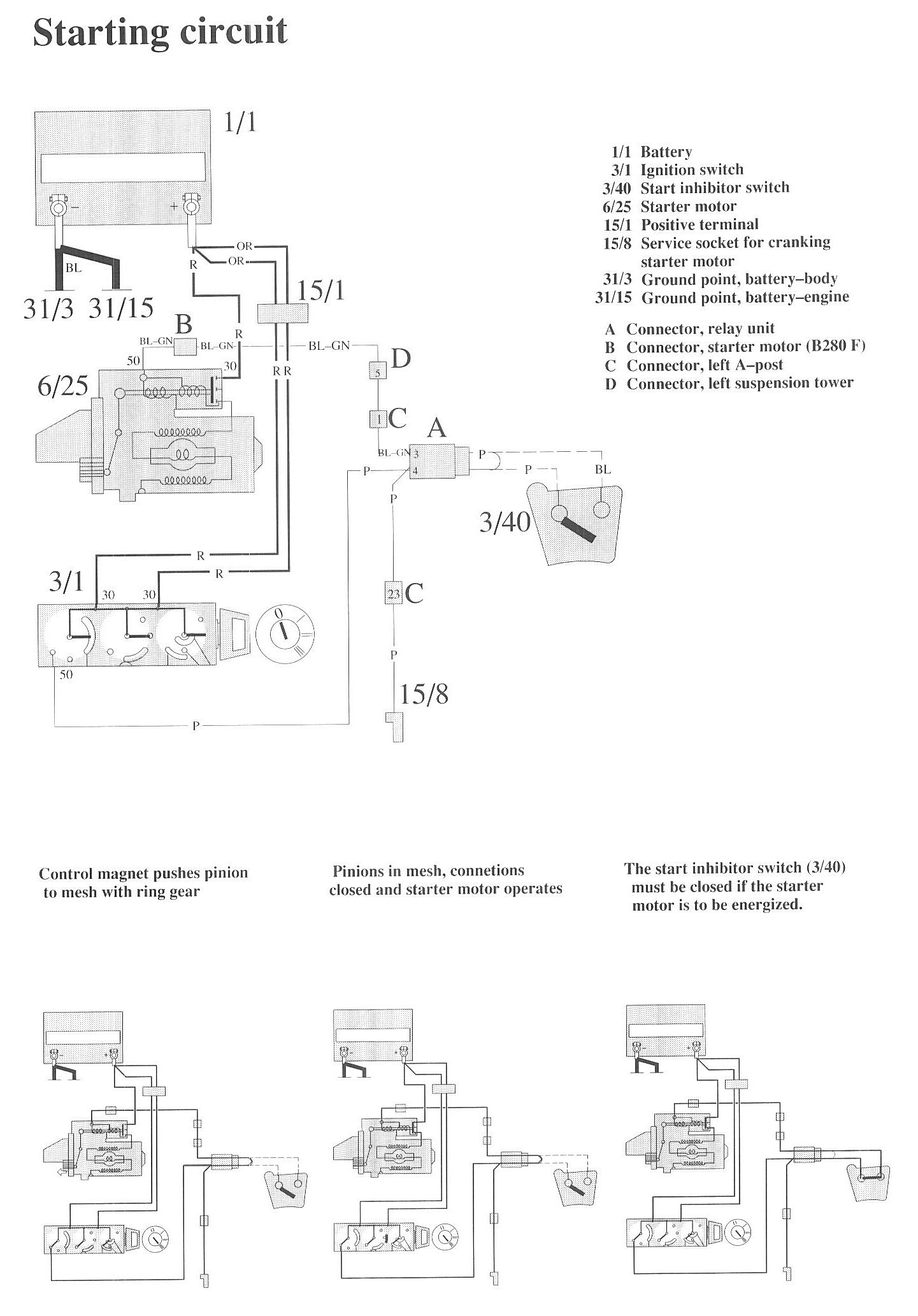

Wiring Diagrams:

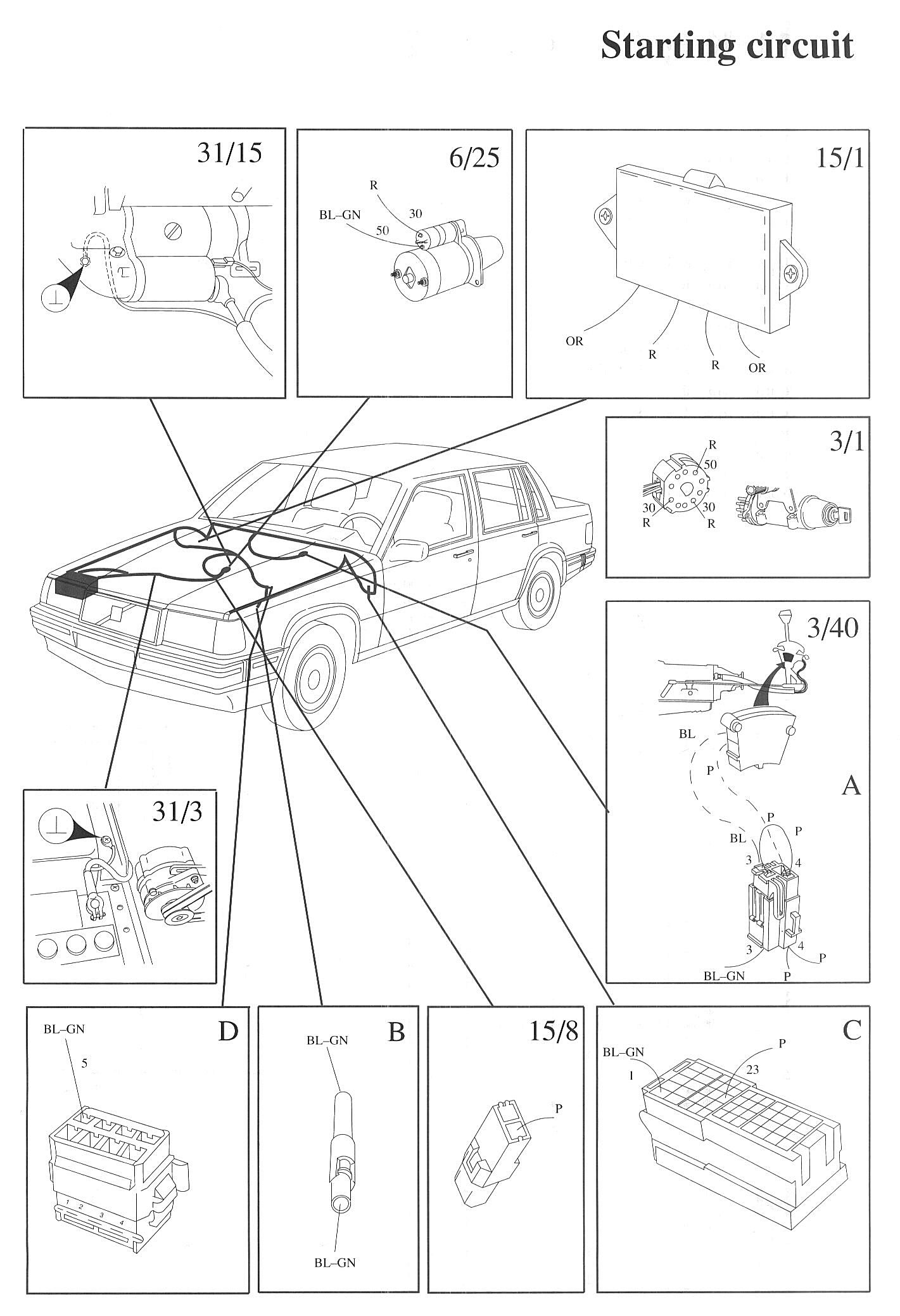

Component / Connector Views:

LEGEND
1/1 Battery
3/1 Ignition switch
3/40 Start inhibitor switch
6/25 Starter motor

15/1 Positive terminal
15/8 Service socket for cranking starter motor
31/3 Ground point, battery-body
31/15 Ground point, battery-engine
