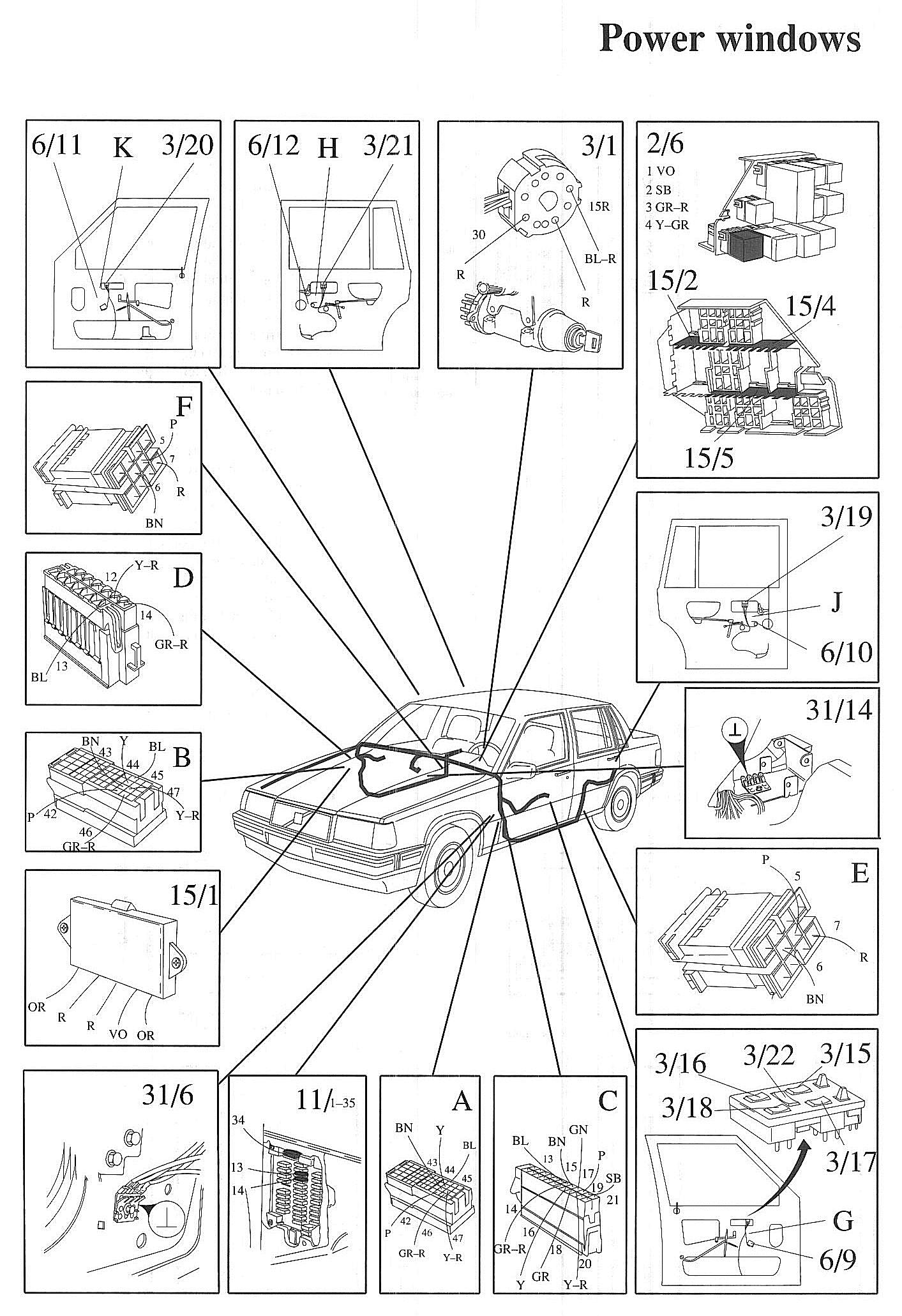

System Diagram

Wiring Diagrams:

Component / Connector Views:

LEGEND
1/1 Battery
2/6 Headlight relay
3/1 Ignition switch
3/15 Switch in driver's door for driver's door
3/16 Switch in driver's door for rear driver's side door
3/17 Switch in driver's door for front passenger's side door
3/18 Switch in driver's door for rear passenger's side door
3/19 Switch in rear driver's side door
3/20 Switch in front passenger's door
3/21 Switch in rear passenger's side door
3/22 Contact breaker for rear power windows
6/9 Motor, driver's door
6/10 Motor, driver's side, rear
6/11 Motor, passenger's door
6/12 Motor, passenger's side, rear

11/1-35 Fuses
15/1 Positive terminal
15/2 30-terminal, relay unit
15/4 15I-terminal, relay unit
15/5 31-terminal, relay unit
31/10 Ground point, A-post, driver's door
31/14 Ground point, central relays
